ISX 800 (5901828) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Rear-Discharge 52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Rear-Discharge

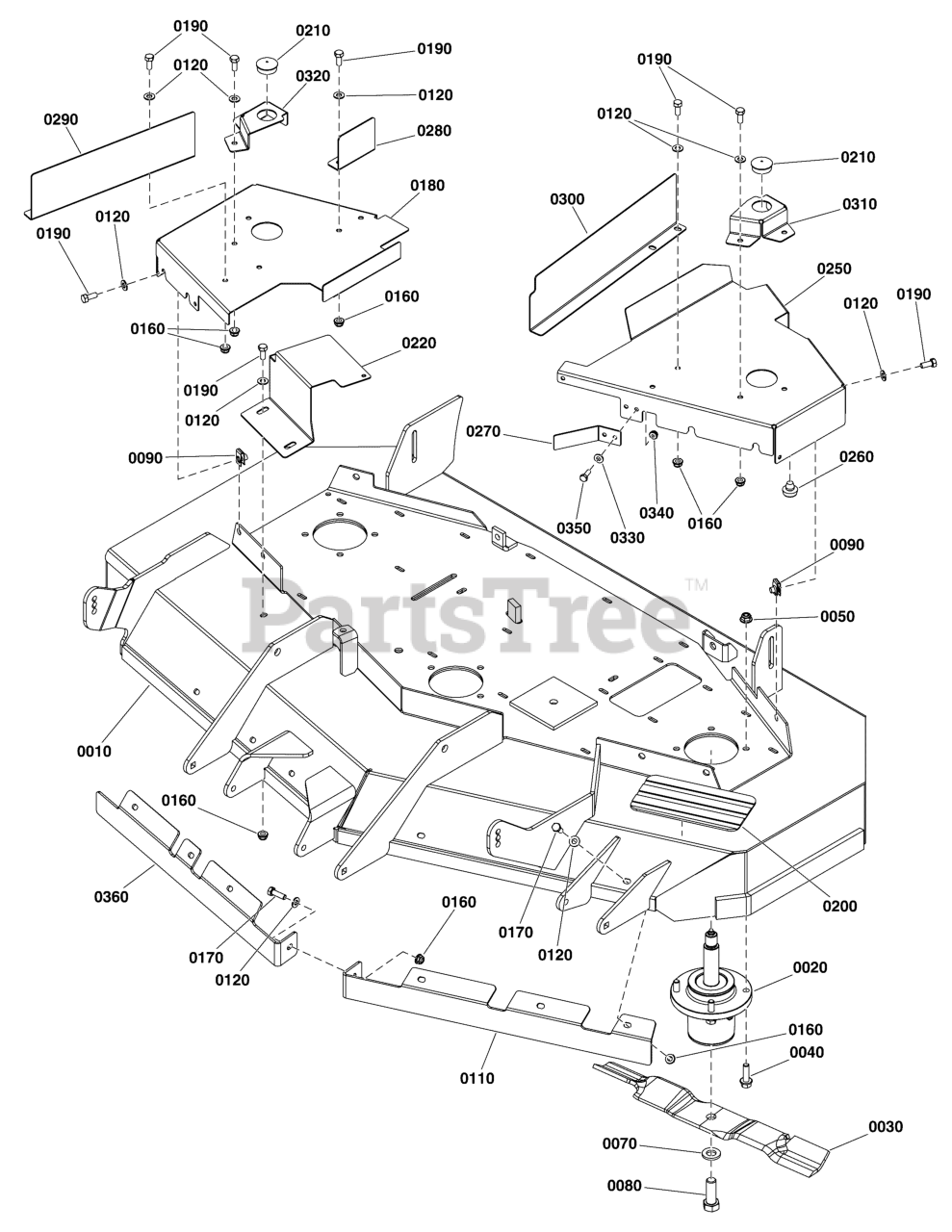

52" Mower Deck Group - Housing, Covers, Spindles, and Blades Parts Diagram

  • Title

0010

Ferris 5601215

DECK SHELL W/ DECALS, ISX800-52RDCE

$2308.99

$

Usually ships in 2-12 days

0

0020

Ferris 5061096

SPINDLE ASSM, ALUMINUM, LONG SHAFT
(Superseded to 5061096SM)

$243.99

$

Usually ships in 2-12 days

0

0030

Ferris 5103304S

BLADE SET, MULCH, 52 DECK (SET OF 3)

Note: (Set of 3 blades)

$85.99

$

Usually ships in 2-12 days

0

0040

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

Note: (Torque Spindle Mounting Bolt to 30 ft-lbs (41 Nm))

$2.99

$

Usually ships in 2-12 days

0

0050

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

0070

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 12

0

0080

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque Blade Mounting Bolt to 120 ft-lbs (163 Nm))

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

0110

Ferris 5414591B

BAFFLE, FRONT DISCHARGE LH - RED
(Superseded to 5414591BFS)

$30.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0160

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

0180

Ferris 80079617B

PLATE, DECK GUARD, RH, ISX800 52 CE -RED
(Superseded to 80079617BFS)

$50.99

$

Usually ships in 2-12 days

0

0190

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

0200

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

0210

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

0220

Ferris 5416407B

GUARD, FRONT CUTTER DECK, 52" CE - RED
(Superseded to 5416407BFS)

$22.99

$

Usually ships in 2-12 days

0

0250

Ferris 80079634B

PLATE, DECK GUARD, LH, ISX800 52 CE -RED

$

$

Currently unavailable

0260

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

Usually ships in 2-12 days

0

0270

Ferris 80079657B

PLATE, GUARD DECK, ISX800 52" CE - RED

$

$

Currently unavailable

0280

Ferris 80079667B

PLATE, REAR SHIELD, 52 CE - RED

$

$

Currently unavailable

0290

Ferris 80079669B

PLATE, DECK SHIELD, RH,ISX800 52 CE, RED

$

$

Currently unavailable

0300

Ferris 80079658B

PLATE, DECK SHIELD, LH,ISX800 52 CE, RED
(Superseded to 80079658BFS)

$24.99

$

Usually ships in 2-12 days

0

0310

Ferris 80079666B

GUARD,GREASE FITTING,LH,ISX800 52 CE,RED

$

$

Currently unavailable

0320

Ferris 80079668B

GUARD,GREASE FITTING,RH,ISX800 52 CE,RED
(Superseded to 80079668BFS)

$21.99

$

Usually ships in 2-12 days

0

0330

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0340

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

0350

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

0360

Ferris 5414590B

BAFFLE, FRONT DISCHARGE RH - RED
(Superseded to 5414590BFS)

$30.99

$

Usually ships in 2-12 days

0
