ISX 800 (5901828) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Rear-Discharge 52" Mower Deck Group - Rear Discharge Chute and Baffle Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Rear-Discharge

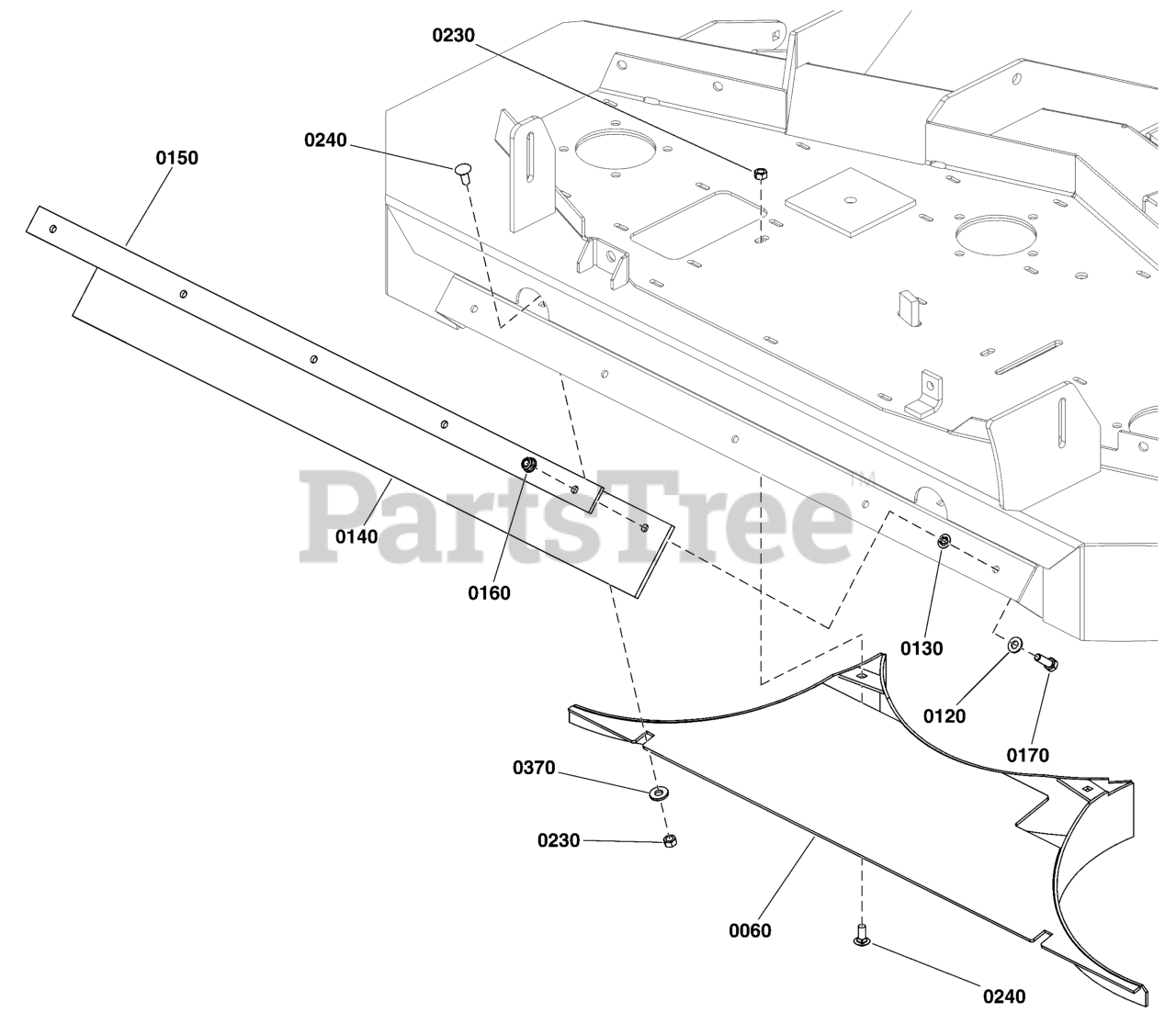

52" Mower Deck Group - Rear Discharge Chute and Baffle Parts Diagram

  • Title

0060

Ferris 5414603A

WELD, REAR BAFFLE, SHRT - BLK

$195.99

$

Usually ships in 2-12 days

0

0120

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0130

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0140

Ferris 5402474

FLAP, 2000 REAR DISCHARGE
(Superseded to 5402474FS)

$85.99

$

Usually ships in 2-12 days

0

0150

Ferris 5402475A

PLATE, FLAP RETAINER, 2000 RD - BLK

$25.99

$

Usually ships in 2-12 days

0

0160

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

0240

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

0370

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0
