ISX 800 (5901828) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Rear-Discharge Rear Bumper and ROPS Group Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton, Rear-Discharge

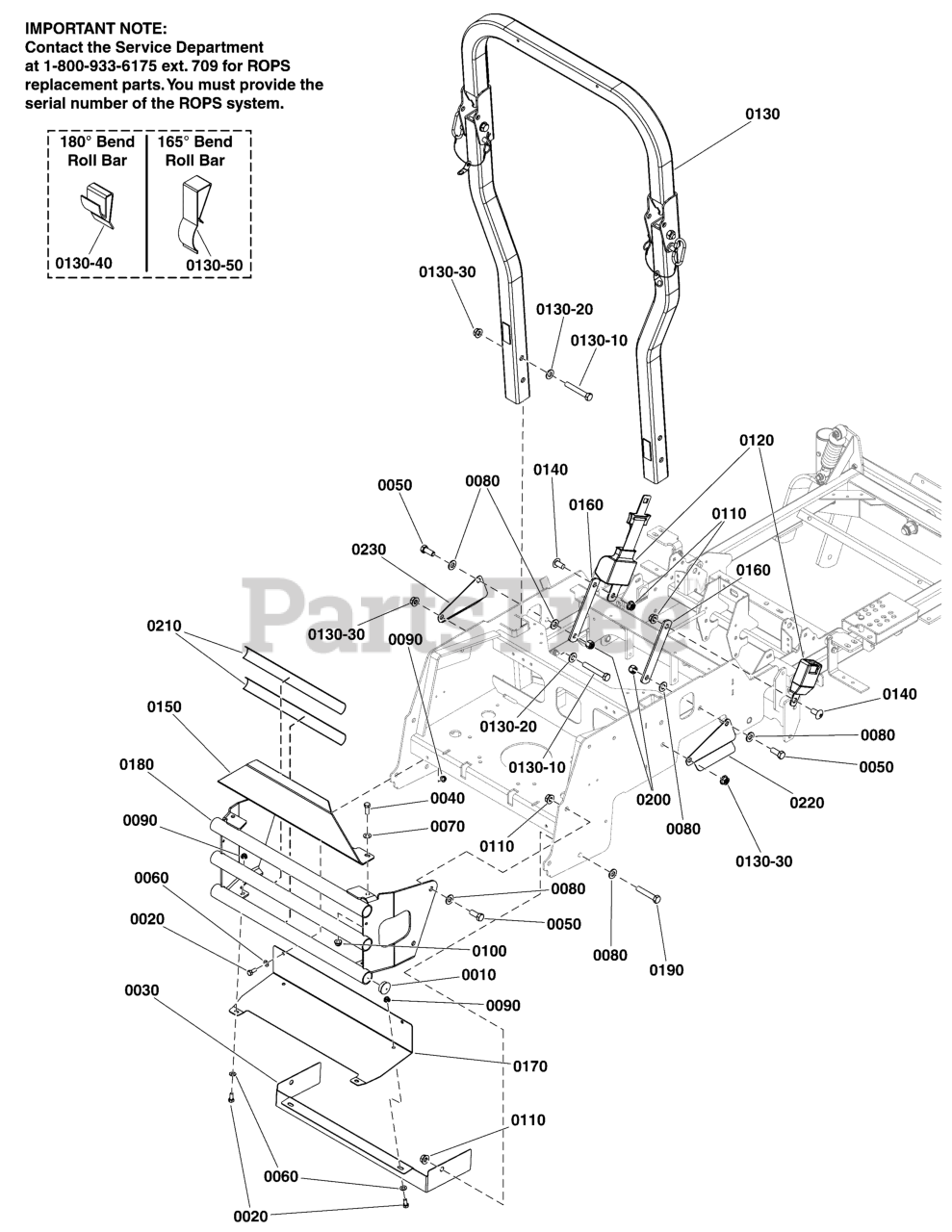

Rear Bumper and ROPS Group Parts Diagram

  • Title

0010

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

0020

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

0030

Ferris 5413448A

PLATE, PULLEY GUARD, FRAME MOUNT - BLK

$

$

Currently unavailable

0040

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

0050

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

0060

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0070

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

0080

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

0090

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0100

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 15

0

0110

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 9

0

0120

Ferris 5100139

SEAT BELT, RETRACTING - ASSM - RED
(Superseded to 5100139SM)

$103.99

$

Usually ships in 2-12 days

0

0130

ROPS, IS700/IS2100/S125XT

Note: (Refer to Note:*)

$

$

Not available

0130-10

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 2 left!

0

0130-20

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 7

0

0130-30

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 9

0

0130-40

Ferris 5103403X1

ANTI-RATTLE SPRING, FEMCO #230328972 (SV)

Note: (180 Degree Bend Roll Bar)

$4.49

$

Usually ships in 2-12 days

0

0130-50

Ferris 5105140X1

ANTI-RATTLE SPRING, ROPS, 165 DEGREE (SV)

Note: (165 Degree Bend Roll Bar)

$5.99

$

Usually ships in 2-12 days

0

0140

Ferris 5100267

SCREW, 1/2 - 13 X 1.00 SCHS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

0150

Ferris 5410486B

PLATE, CARB PROTECTOR - RED
(Superseded to 5410486BFS)

$53.99

$

Usually ships in 2-12 days

0

0160

Ferris 5410295A

BAR, MOUNT, SEAT BELT, IS700Z - BLK
(Superseded to 5410295AYP)

$7.49

$

Usually ships in 2-12 days

0

0170

Ferris 5413494A

PLATE, HEAT SHIELD, IS700 EU - BLK

$

$

Currently unavailable

0180

Ferris 5410483B

WELD, BUMPER - IS700 - RED
(Superseded to 5410483BFS)

$266.99

$

Usually ships in 2-12 days

0

0190

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 2 left!

0

0200

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

0210

Ferris 5021125X16

ALUM FOIL TAPE 2 WIDE-2160 RL X 16"LG

$

$

Currently unavailable

0220

Ferris 5413446B

PLATE,FAN GUARD, FRAME MOUNT - RH - RED

$

$

Currently unavailable

0230

Ferris 5413447B

PLATE,FAN GUARD, FRAME MOUNT - LH - RED

$

$

Currently unavailable
