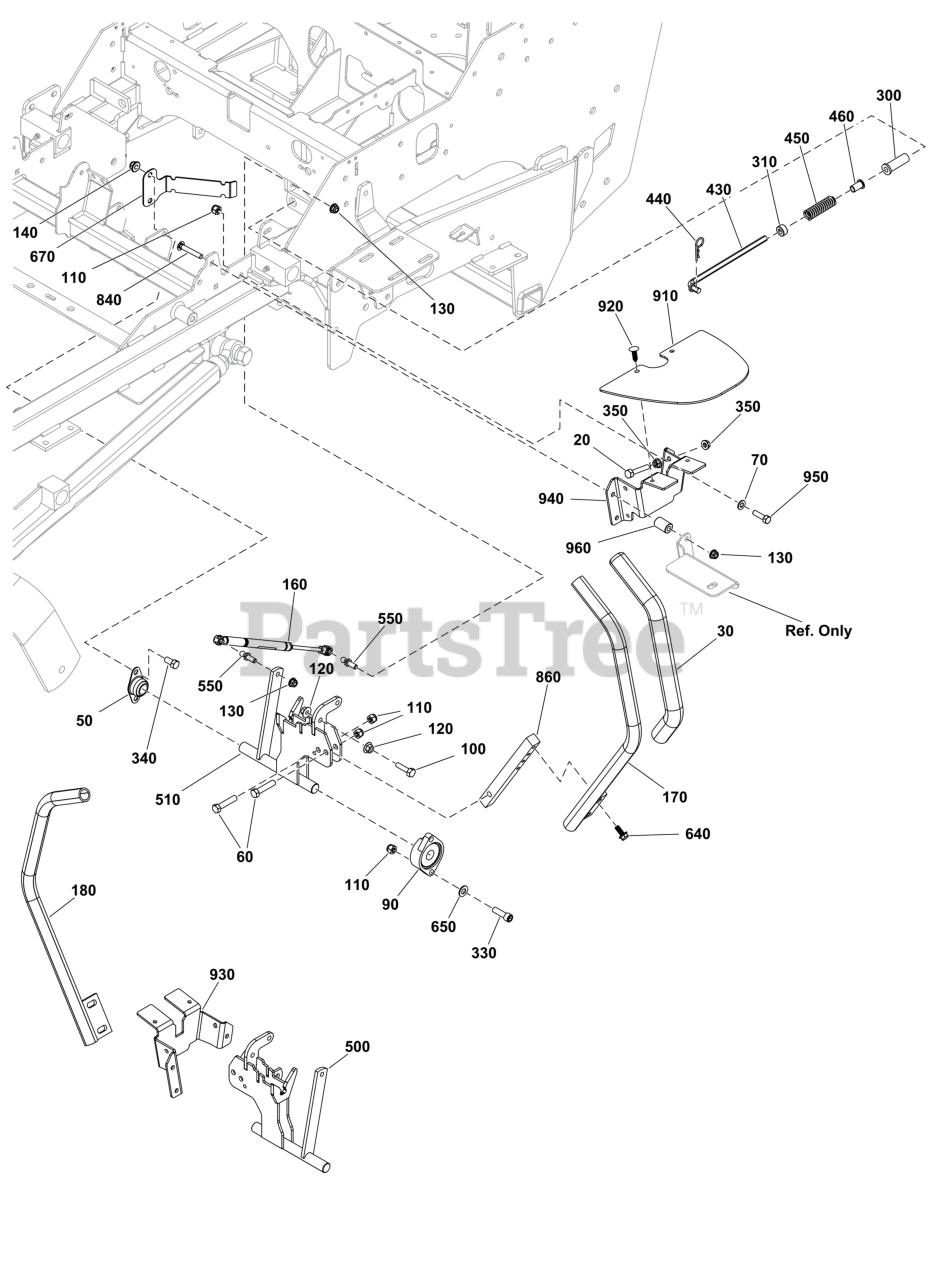

ISX 800 (5902086) - Ferris ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton Motion Control Group - Handles and Dampeners Parts Diagram

ISX800 Series 52" Zero-Turn Mower, 27hp Briggs & Stratton

Motion Control Group - Handles and Dampeners Parts Diagram

  • Title

20

Ferris 5025055X14SM

BOLT, 5/16-18 X 1-3/4

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5104722FS

GRIP

$10.99

$

Usually ships in 2-12 days

0

50

Ferris 5021098SM

BEARING, BRONZE FLANG

$13.99

$

In Stock, Qty 5

0

60

Ferris 5025013X14SM

BOLT, 3/8-16 X 1-3/4"

$3.99

$

In Stock, only 1 left!

0

70

Ferris 703350

WASHER

$4.49

$

In Stock, Qty 20+

0

90

Ferris 5021499SM

BEARING, FLANGE

$55.99

$

In Stock, only 2 left!

0

100

Ferris 5025055X10YP

BOLT, 5/16-18 X 1-1/4

$3.49

$

In Stock, only 1 left!

0

110

Ferris 5025096SM

NUT, 3/8-16 HEX NYLON

$3.49

$

In Stock, only 1 left!

0

120

Ferris 5025139SM

NUT, 5/16-18 HEX SERR

$3.49

$

Usually ships in 2-12 days

0

130

Ferris 5025392FS

NUT

$3.49

$

Usually ships in 2-12 days

0

140

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 7

0

160

Ferris 5100940SM

DAMPNER, CONTROL

$55.99

$

Usually ships in 2-12 days

0

170

Ferris 84004629

CONTROL, HANDLE

$49.99

$

Usually ships in 2-12 days

0

180

Ferris 84004630

CONTROL, HANDLE

$49.99

$

In Stock, only 1 left!

0

300

Ferris 5104375YP

BUSHING, FLANGED, 3/8

$5.99

$

Usually ships in 2-12 days

0

310

Ferris 5010546SM

COLLAR, 3/8" SET

$5.99

$

Usually ships in 2-12 days

0

330

Ferris 5025327SM

BOLT, 3/8-16 X 1-1/4

$3.99

$

Usually ships in 2-12 days

0

340

Ferris 5025013X6SM

BOLT, 3/8-16 X 3/4" G

$3.99

$

Usually ships in 2-12 days

0

350

Ferris 5025127SM

NUT, 5/16-18 HEX SERR

$3.49

$

In Stock, Qty 7

0

430

Ferris 5100947SM

ROD, NEUTRAL

$7.99

$

Usually ships in 2-12 days

0

440

Ferris 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

Usually ships in 2-12 days

0

450

Ferris 5022645SM

SPRING, REVERSE RETUR

$9.49

$

In Stock, only 1 left!

0

460

Ferris 5023260SM

BUSHING, NYLON

$6.49

$

In Stock, only 2 left!

0

500

Ferris 5416664AYP

SHAFT-CONTROL

$62.99

$

Usually ships in 2-12 days

0

510

Ferris 5416663AYP

SHAFT-CONTROL

$64.99

$

Usually ships in 2-12 days

0

550

Ferris 5101307SM

10MM BALL STUD, 5/16-

$5.49

$

Usually ships in 2-12 days

0

640

Ferris 703354

SCREW, 5/16-18

$5.49

$

In Stock, Qty 8

0

650

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

670

Ferris 5413137AYP

BRACKET, HARNESS MOUNT, 2100 - BLK

$9.99

$

Usually ships in 2-12 days

0

840

Ferris 5025145X14

BOLT, 5/16-18 X 1-3/4, CARRIAGE

$

$

Currently unavailable

860

Ferris 5047004AYP

MOUNT, CONTROL ARM

$37.99

$

Usually ships in 2-12 days

0

910

Ferris 84008218

GUARD, RUBBER MOTION CONTROL

$

$

Currently unavailable

920

Ferris 5025431SM

PUSH RIVET (TREE TYPE

$4.49

$

Usually ships in 2-12 days

0

930

Ferris 5416170AYP

PLATE

$42.99

$

Usually ships in 2-12 days

0

940

Ferris 5416171AYP

PLATE

$42.99

$

Usually ships in 2-12 days

0

950

Ferris 5025011X6SM

BOLT, 5/16-18 X 3/4"

$3.99

$

In Stock, Qty 6

0

960

Ferris 5102148YP

SPACER, .33 X .50X.50

$4.99

$

Usually ships in 2-12 days

0
