iZ 4217 TSKAA (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) Accessories (HCS9 Collection System - Mounting Kit) Parts Diagram

42" Zero-Turn Mower

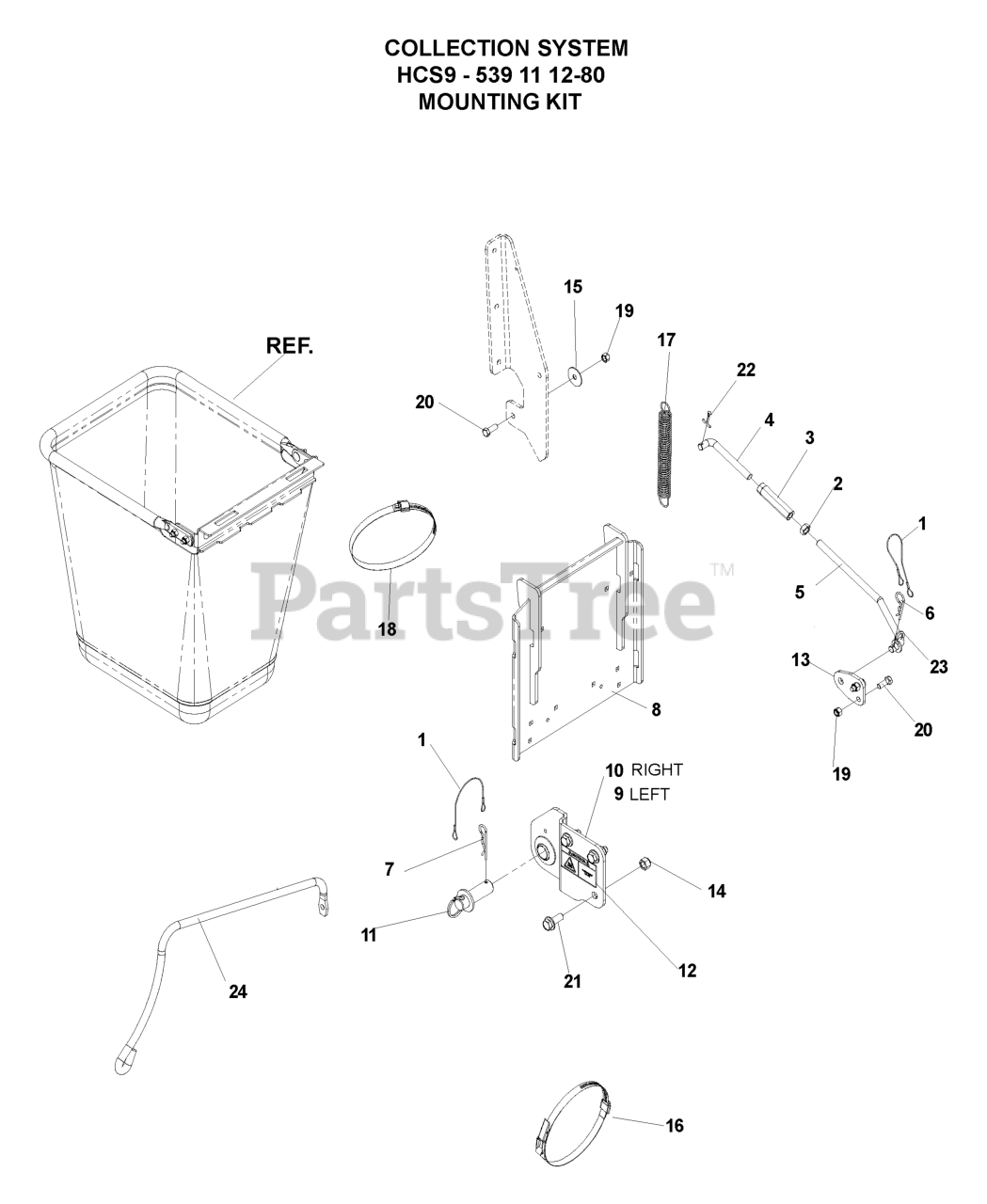

Accessories (HCS9 Collection System - Mounting Kit) Parts Diagram

  • Title

1

Husqvarna 539102563

LANYARD

$9.99

$

In Stock, only 1 left!

0

2

Husqvarna 539108736

NUT, 1/2-20, JAM

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111207

TURNBUCKLE, 1/2

$

$

Not available

4

Husqvarna 539111208

SUPPORT LINKAGE, LH

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539111209

SUPPORT LINKAGE, MID

$36.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976989

PIN HAIR, 1/8 X 2 1/2

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539111192

HAIRPIN

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539111195

REAR GUARD, MID

$94.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539111203

HITCH BRACKET, LEFT

$133.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539111294

HITCH BRACKET, RIGHT

$157.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539111206

HITCH PIN

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539111212

DECAL, HOT SURFACE

$9.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539111215

SUPPORT BRACKET

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102998

WASHER, .39

$8.99

$

In Stock, Qty 10

0

16

Husqvarna 539109901

OVERCENTER BAND

$78.99

$

In Stock, only 1 left!

0

17

Husqvarna 539111191

SPRING

$

$

Not available

18

Husqvarna 539097076

HOSE CLAMP

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990655

HCS, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 539990622

BOLT, 1/2-13 X 1 1/4, WHIZLK

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990654

PIN COTTER, 5/32 X 1 1/4

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539916459

RING, RETAINING, SPEC

$6.49

$

In Stock, Qty 8

0

24

Husqvarna 539113018

HOSE SUPPORT

$24.99

$

Usually ships in 3-10 days

0

Husqvarna 539990627

HCS, 5/16-18 X 1 1/4, GR5

Note: (NOT SHOWN)

$4.99

$

In Stock, Qty 10

0

Husqvarna 539990655

HCS, 3/8-16 X 1 1/2, GR5

Note: (NOT SHOWN)

$4.99

$

In Stock, only 2 left!

0

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

Note: (NOT SHOWN)

$3.49

$

In Stock, Qty 20+

0

539111280

Husqvarna 539111280

Mounting Kit Collection System

Note: (HSC9)

$2165.99

$

Usually ships in 3-10 days

0
