iZ 4217 TSKAA (968999254) - Husqvarna 42" Zero-Turn Mower (2006-08) Park Brake Assembly (TE) Parts Diagram

42" Zero-Turn Mower

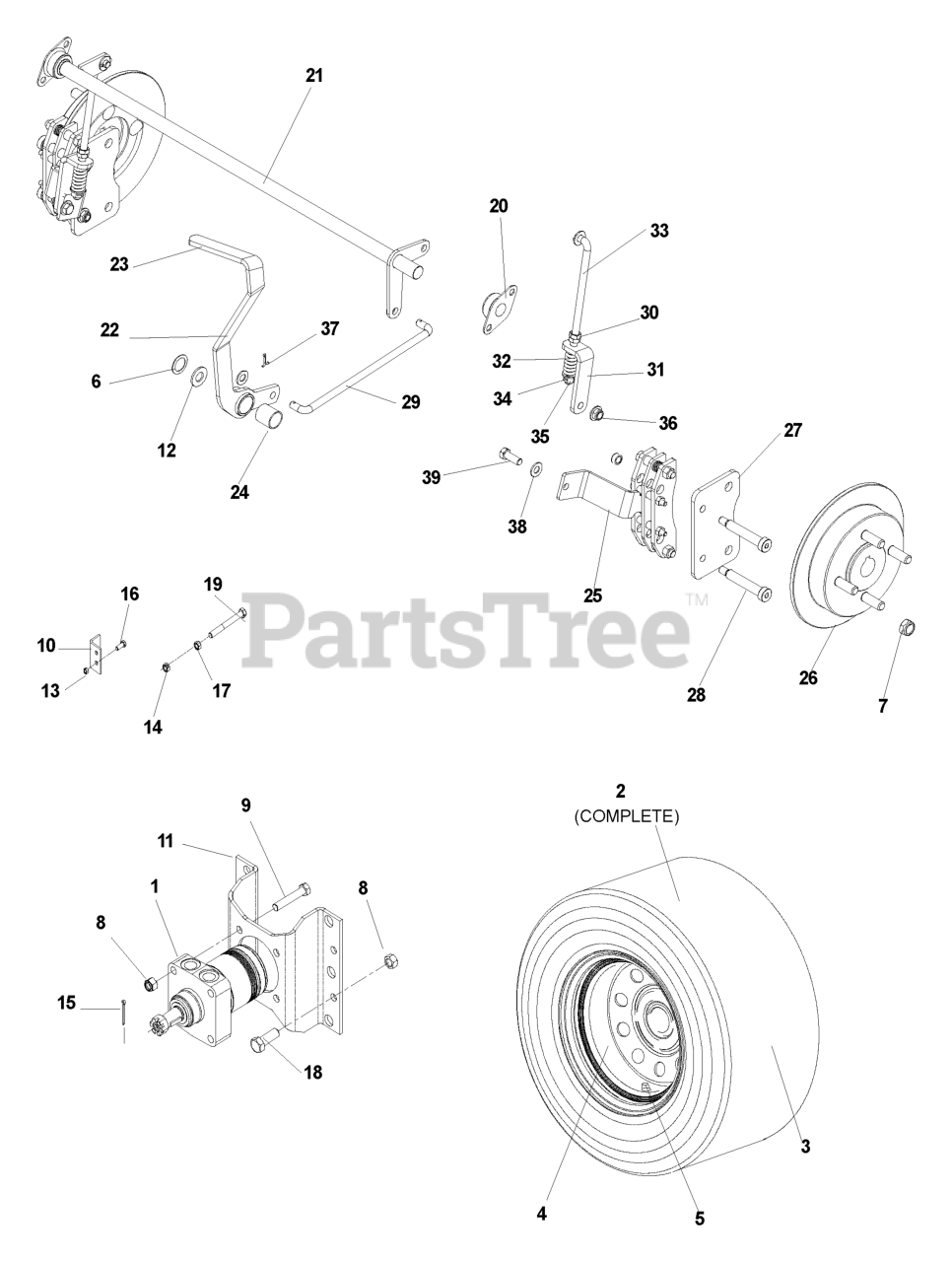

Park Brake Assembly (TE) Parts Diagram

  • Title

1

Husqvarna 539103527

MOTOR, HYDRUALIC

$

$

Not available

2

Husqvarna 539108614

TIRE

Note: (COMPLETE)

$

$

Not available

3

Husqvarna 539107432

TIRE
(Superseded to 522905001)

$399.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539109344

RIM

$133.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

6

Husqvarna 539101151

RING, RETAINING, EXT, 7/8

$

$

Not available

7

Husqvarna 539101173

NUT, 1/2-20, LUG

$

$

Not available

8

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539101332

HCS, 1/2-13 X 2 3/4, GR5

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 539105029

BRACKET

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539108554

MOTOR STANDOFF, TE

$66.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539923787

BUSHING

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 539976978

NUT, 1/4-20, NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990297

PIN COTTER, 1/8 X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990580

HCS, 1/4-20 X 3/4, GR5

$3.99

$

In Stock, only 4 left!

0

17

Husqvarna 539990613

NUT, 3/8-16, WHIZLK

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990622

BOLT, 1/2-13 X 1 1/4, WHIZLK, SP

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990637

HCS, 3/8-16 X 2 1/2, GR5

$1.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539102797

BUSHING

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539106969

BRAKE CROSS SHAFT

$33.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108616

BRAKE LEVER

$54.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539105036

GRIP PARK BRAKE

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 539108619

BUSHING

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539113944

CALIPER
(Superseded to 539133047)

$120.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539113945

HUB

$157.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539113948

PLATE, BRAKE

$21.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539113951

SCREW, 3/8-16 X 2 1/2, SKT HD

$7.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539113954

LINKAGE, BRAKE

$7.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539108732

NUT, 3/8-24, JAM

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539113950

L BRACKET

$15.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539113955

LINKAGE, REAR BRAKE

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990122

WASHER, 3/8, SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990289

NUT, 3/8-24, CENTERLOCK, GR5

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539200282

NUT, 3/8-16, THIN NYLOC

$

$

Not available

37

Husqvarna 539990037

PIN COTTER, 3/32 X 3/4

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990122

WASHER, 3/8, SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990563

HCS, 3/8-16 X GR5

$1.49

$

Usually ships in 3-10 days

0
