iZ 4821 - Husqvarna 48" Zero-Turn Mower (2003-03) SEAT Parts Diagram

48" Zero-Turn Mower

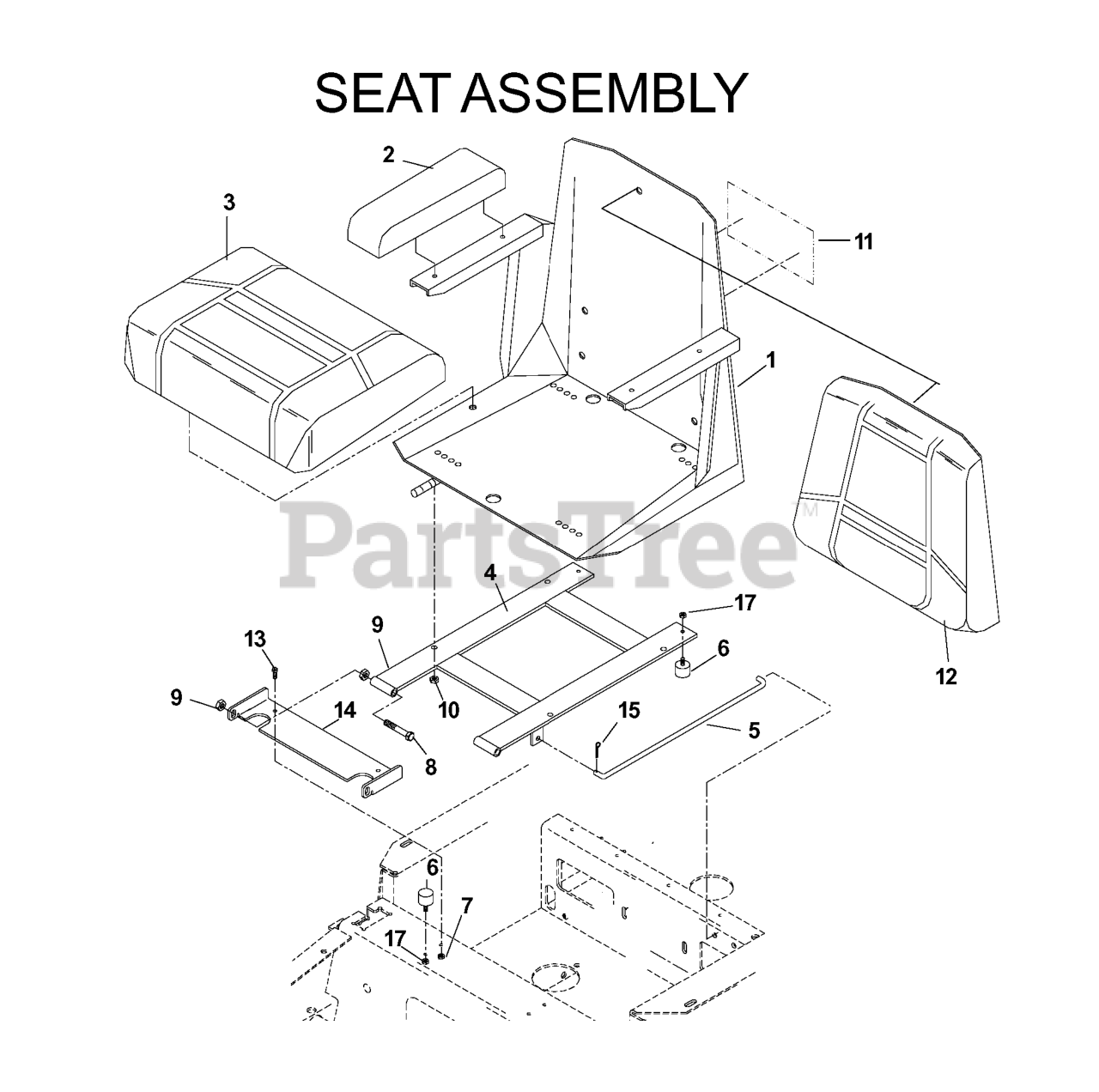

SEAT Parts Diagram

  • Title

14

Husqvarna 539105224

SEAT BRKT W/DECAL

$30.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

11

Husqvarna 539104789

DECAL, CROWN H

$

$

Not available

10

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539105039

STUD/PLATE MOUNT

$

$

Not available

4

Husqvarna 539105283

SEAT MOUNT
(Superseded to 539105951)

$

$

Not available

2

Husqvarna 539102844

ARM REST CUSHIONS/PAIR

$194.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105294

SEAT RAILS

$

$

Not available

17

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539104525

SEAT ROD

$12.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 539104565

SEAT, BACK CUSHION

$194.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539104584

SEAT, COMPLETE
(Superseded to 539112281)

$

$

Not available

15

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 539990372

NUT 1/4C CENTERLOCK
(Superseded to 539990761)

$4.99

$

In Stock, only 4 left!

0

3

Husqvarna 539102539

SEAT CUSHION W/SWITCH

$

$

Not available
