iZ 5223 TXPKOA (968999307) - Husqvarna 52" Zero-Turn Mower (2006-08) Seat Assembly Parts Diagram

52" Zero-Turn Mower

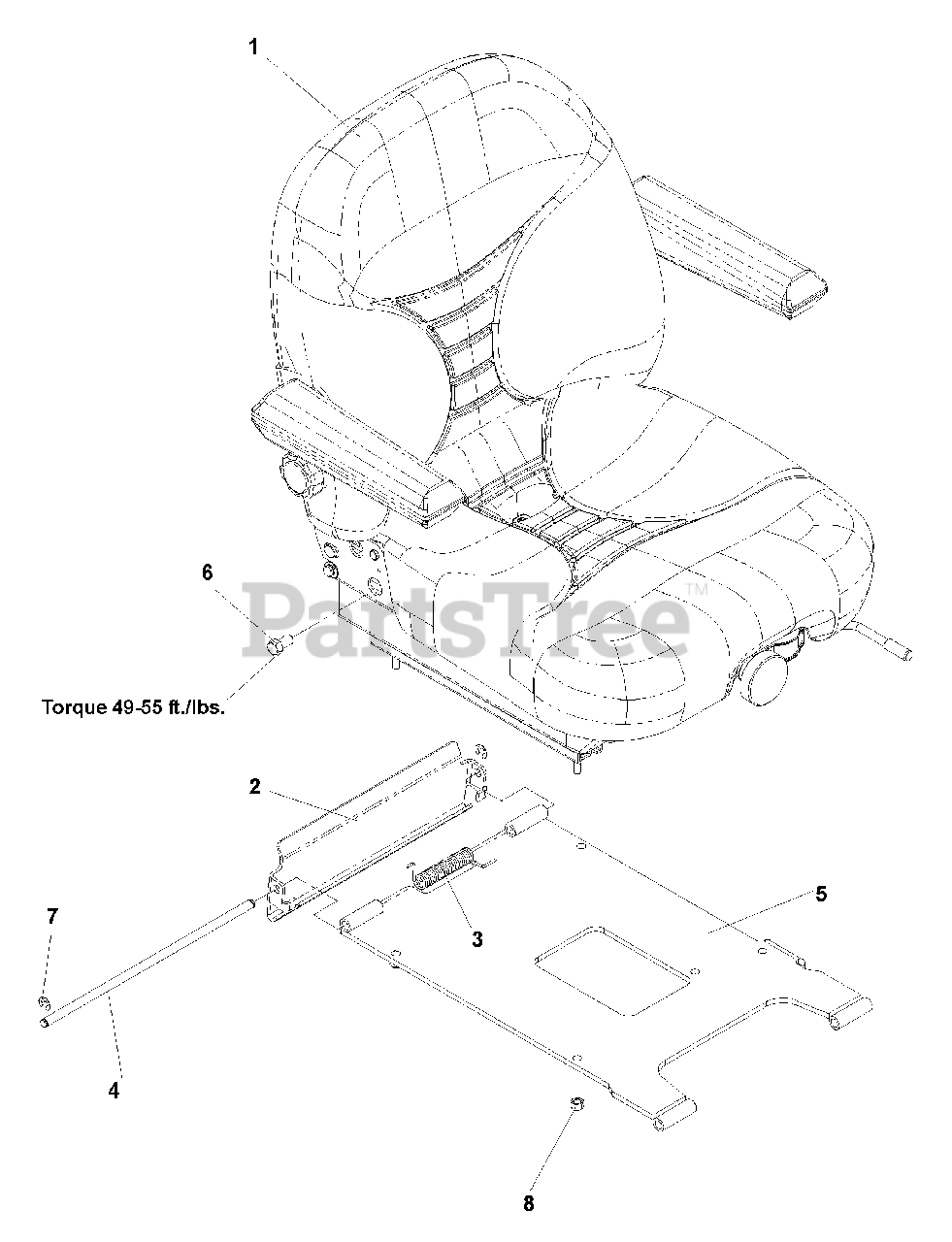

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 539107859

SEAT, SUSPENSION
(Superseded to 539131986)

$512.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539110644

SEAT LATCH BRACKET

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110645

TORISON SPRING

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110646

SEAT LATCH ROD

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539110816

SEAT MOUNT

$364.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539112034

HCS, 7/16-20 X 3/4, GR5

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990870

RING-RETAINING

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 539111026

SEAT BELT

Note: (NOT SHOWN)

$60.99

$

Usually ships in 3-10 days

0
