iZ 5223 VAN - Husqvarna 52" Zero-Turn Mower (2008-12) IGNITION SYSTEM Parts Diagram

52" Zero-Turn Mower

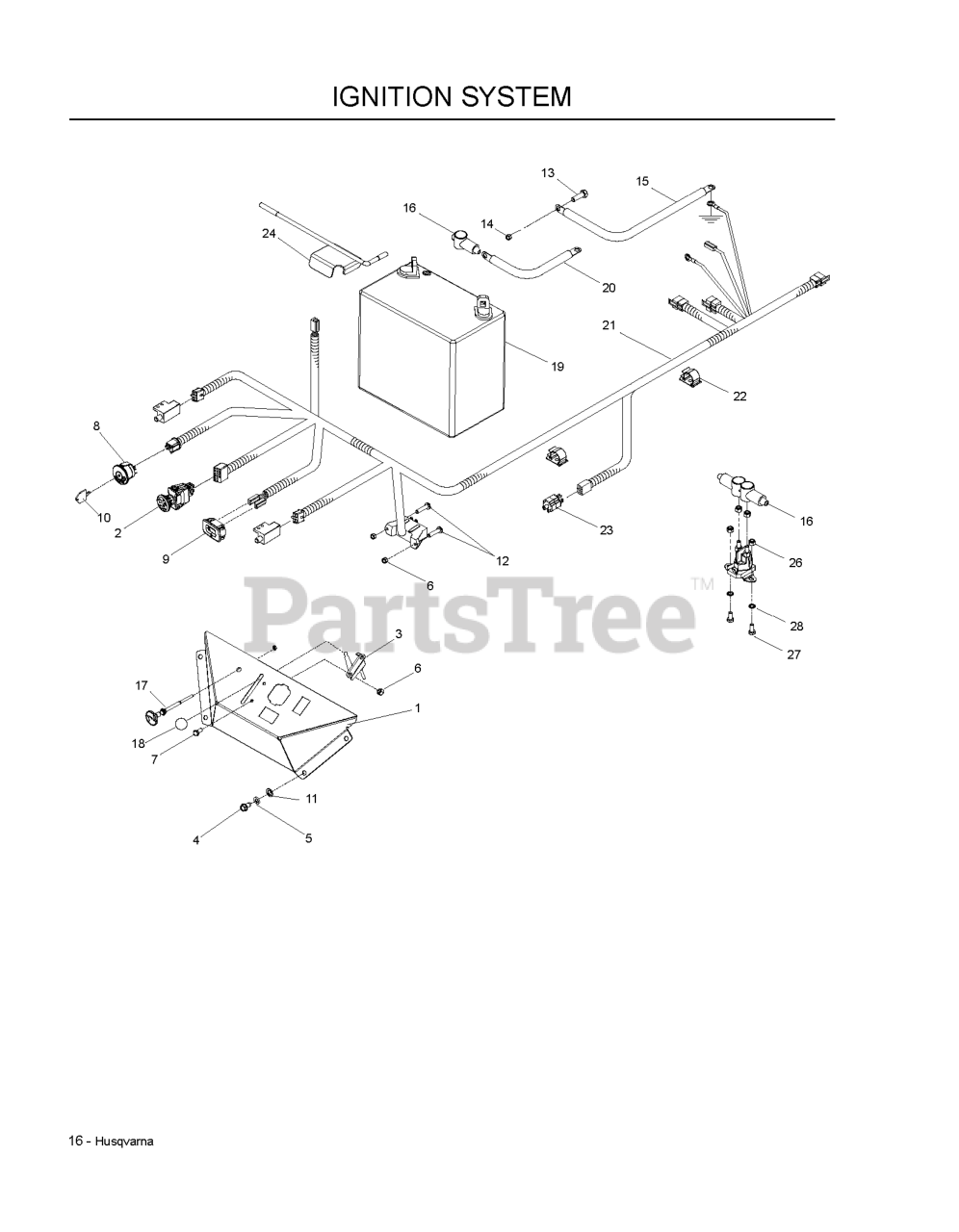

IGNITION SYSTEM Parts Diagram

  • Title

20

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

$8.99

$

In Stock, only 1 left!

0

2

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$13.99

$

In Stock, Qty 20+

0

9

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 7

0

4

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

7

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539110953

CONSLE, ORANGE

$

$

Not available

17

Husqvarna 539130208

CONTROL-CHOKE 51"
(Superseded to 539109954)

$35.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539113791

HARNESS, WIRING LZ/IZ

$

$

Not available

8

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$12.99

$

In Stock, Qty 20+

0

18

Husqvarna 539105169

KNOB

$

$

Not available

12

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

24

Husqvarna 539106899

BATTERY HOLD DOWN

$60.99

$

In Stock, only 1 left!

0

16

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539103275

THROTTLE CABLE

$34.99

$

In Stock, only 1 left!

0

14

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539101714

SOLENOID

Note: "iZC5221, iZ4217, iZ4819, IZ4821, iZ5223 VAN"

$26.99

$

In Stock, Qty 20+

0

23

Husqvarna 539113792

SWITCH, BRAKE 3P

$12.99

$

In Stock, Qty 17

0

28

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

19

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

27

Husqvarna 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

10

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102758

CABLE-NEGATIVE

$15.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available
