iZ 5223 VAN - Husqvarna 52" Zero-Turn Mower (2008-12) WHEELS & TIRES Parts Diagram

52" Zero-Turn Mower

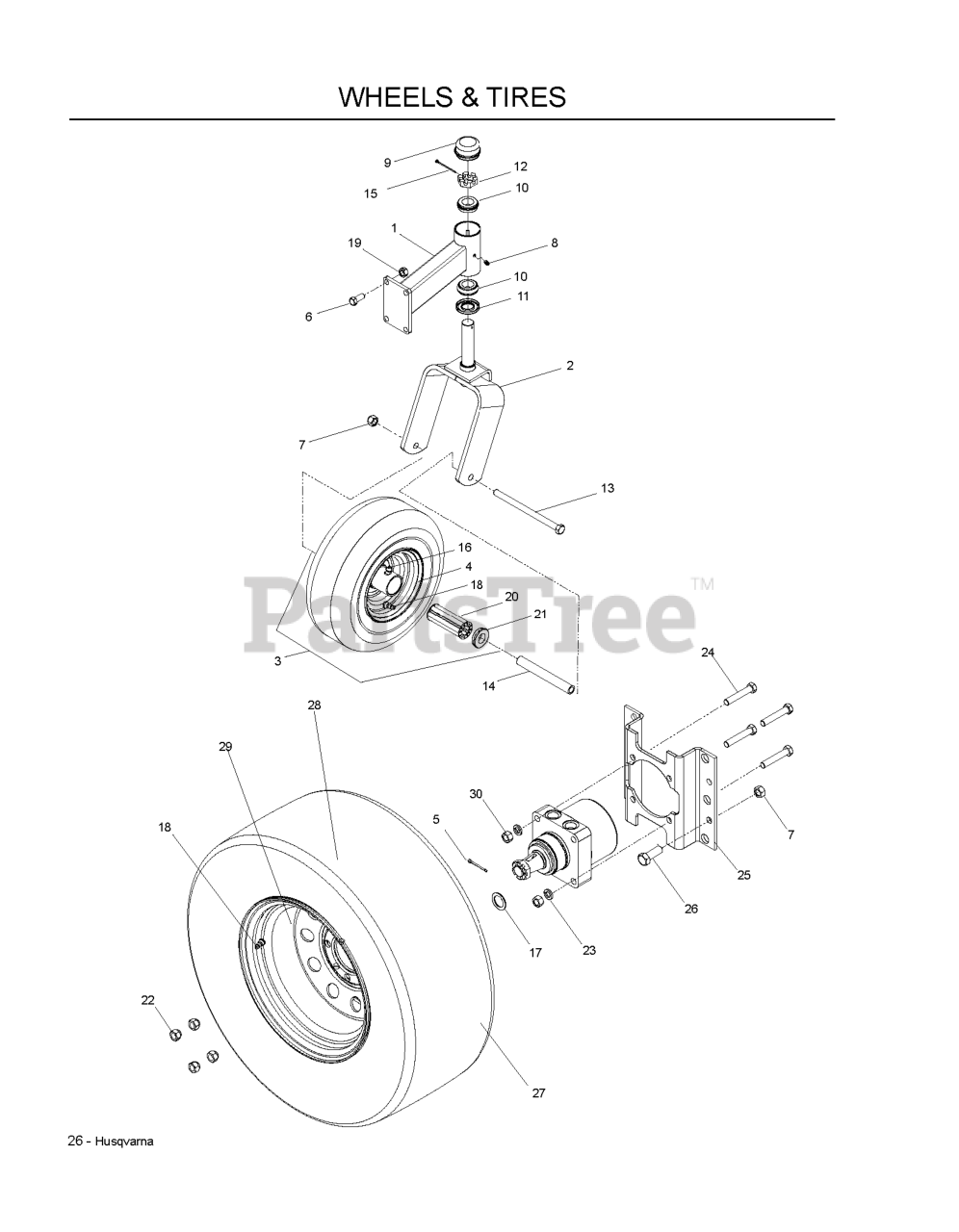

WHEELS & TIRES Parts Diagram

  • Title

22

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

16

Husqvarna 539976997

ZERK 1/8 NPT

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539100143

HCS 7/16-14 X 1 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102856

SPACER, CASTER

$18.99

$

In Stock, Qty 10

0

28

Husqvarna 539112599

TIRE.TURF.MASTER.23X9.5-12

Note: "iZ4821, iZ5223 VAN, iZC5223, iZC5221"

$194.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539112592

WHEEL/TIRE.ASM.23X9.5-12.GREY

Note: "iZ4821, iZ5223 VAN, iZC5223, iZC5221"

$

$

Not available

20

Husqvarna 539102485

ROLLER BEARING

$18.99

$

In Stock, Qty 7

0

12

Husqvarna 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

5

Husqvarna 539990297

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 510253001

RIM, 12 X 7, 1" NEG OFFSET

Note: "iZ4821, iZ5223VAN, i5223"

$

$

Not available

3

Husqvarna 539104572

TIRE.ASSEM.13X5-6.SMOOTH.SILVE

$

$

Not available

9

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$3.99

$

In Stock, Qty 20+

0

26

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 539102851

SEAL

$7.49

$

In Stock, Qty 9

0

1

Husqvarna 539106986

CASTER ARM, ORG

$267.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104571

CASTER YOKE ORANGE

$

$

Not available

30

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 16

0

4

Husqvarna 539104573

RIM
(Superseded to 539104572)

$

$

Not available

7

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

13

Husqvarna 539102855

SCREW 1/2C X 7 1/2 HEX CAP

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

10

Husqvarna 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, Qty 6

0

21

Husqvarna 539102484

BEARING RETAINER

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 539106989

MOTOR STANDOFF

$48.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0
