IZC 5223 (965879201) - Husqvarna 52" Zero-Turn Mower (2008-12) Engine Plate Parts Diagram

52" Zero-Turn Mower

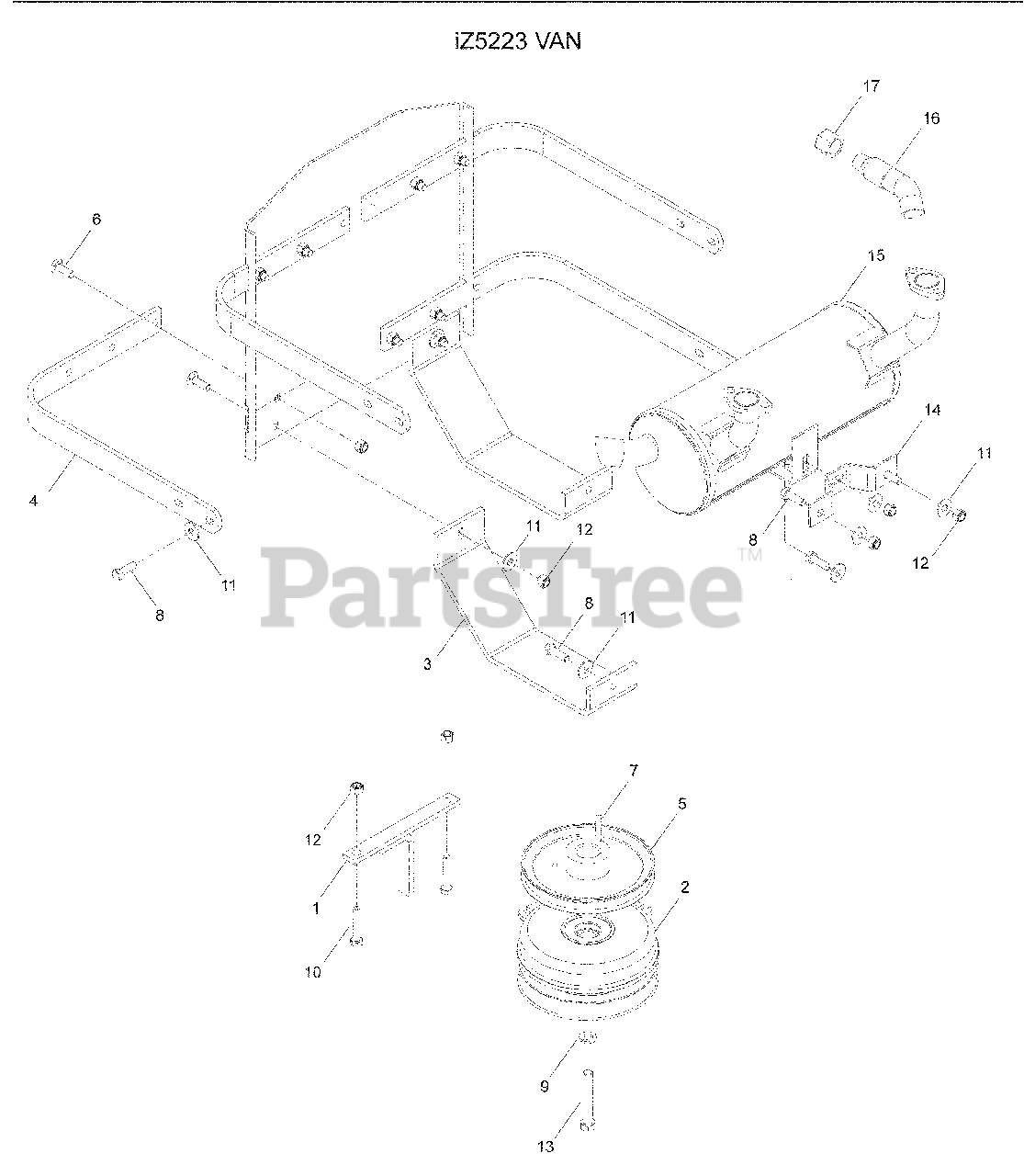

Engine Plate Parts Diagram

  • Title

1

Husqvarna 539106819

TIE DOWN, CLUTCH

$

$

Not available

2

Husqvarna 539106880

CLUTCH, 200 FT/LB

$

$

Not available

3

Husqvarna 539106957

SKID PLATE

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539106961

STRAP, BLACK

$21.99

$

In Stock, only 1 left!

0

5

Husqvarna 539106992

PULLEY

$

$

Not available

6

Husqvarna 539107271

RHSNB 5/16-18 x 1

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 539912757

KEY ¼ SQ x 1¼

$4.99

$

In Stock, Qty 10

0

8

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

10

Husqvarna 539990669

HCS 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

11

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

12

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539110065

HCS 7/16-20 x 2¾

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110418

BRACKET, MUFFLER

$18.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539110419

MUFFLER, VANGUARD

$

$

Not available

16

Husqvarna 539101362

HOSE, DRAIN

$47.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101364

PLUG, OIL

$7.49

$

Usually ships in 3-10 days

0

Husqvarna 539102757

CABLE, POSITIVE

Note: NOT SHOWN

$15.99

$

Usually ships in 3-10 days

0

Husqvarna 539107516

PIGTAIL, KOHLER CV490S

Note: NOT SHOWN

$

$

Not available
