J 55 S (961210007-06) - Husqvarna Walk-Behind Mower (2009-01) DRIVE Parts Diagram

Walk-Behind Mower

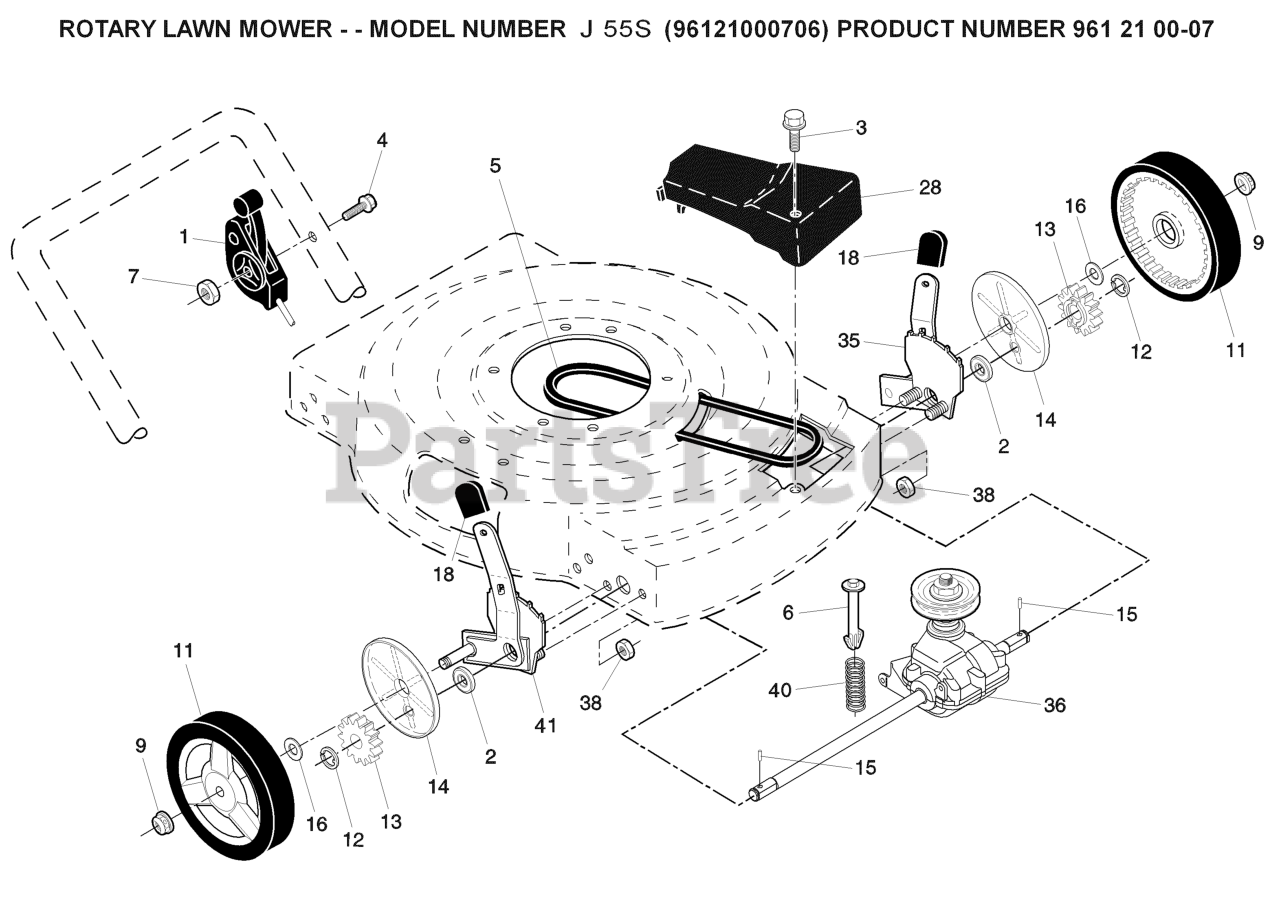

DRIVE Parts Diagram

  • Title

35

Husqvarna 532408862

WHEEL ADJ KIT LH
(Superseded to 532438485)

$44.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146527

BELT THERM .32
(Superseded to 532157769)

$14.99

$

In Stock, only 2 left!

0

1

Husqvarna 532184588

DRIVE CONTROL 59.8 FWGD

$53.99

$

In Stock, only 1 left!

0

6

Husqvarna 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532132800

SELECTOR KNOB
(Superseded to 532701037)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.49

$

In Stock, Qty 20+

0

7

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

41

Husqvarna 532408861

WHEEL ADJ KIT RH
(Superseded to 532438486)

$44.99

$

In Stock, only 3 left!

0

4

Husqvarna 532158755

SCREW.PAN.HEAD

$

$

Not available

2

Husqvarna 532191039

BEARING
(Superseded to 587070202)

Note: Included in wheel adjusters

$13.99

$

In Stock, Qty 20+

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532196008

Drive Cover

$

$

Currently unavailable

40

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

3

Husqvarna 532143603

Screw, Tapping, Pan Head #10-24 x 2-3/4

$

$

Not available

36

Husqvarna 532415226

TRANSMISSION.22.FGD/W/PULLEY

$84.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

9

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0
