Jet 50 (954053701) - Husqvarna Walk-Behind Mower (1991-04) Repair Parts Parts Diagram

Walk-Behind Mower

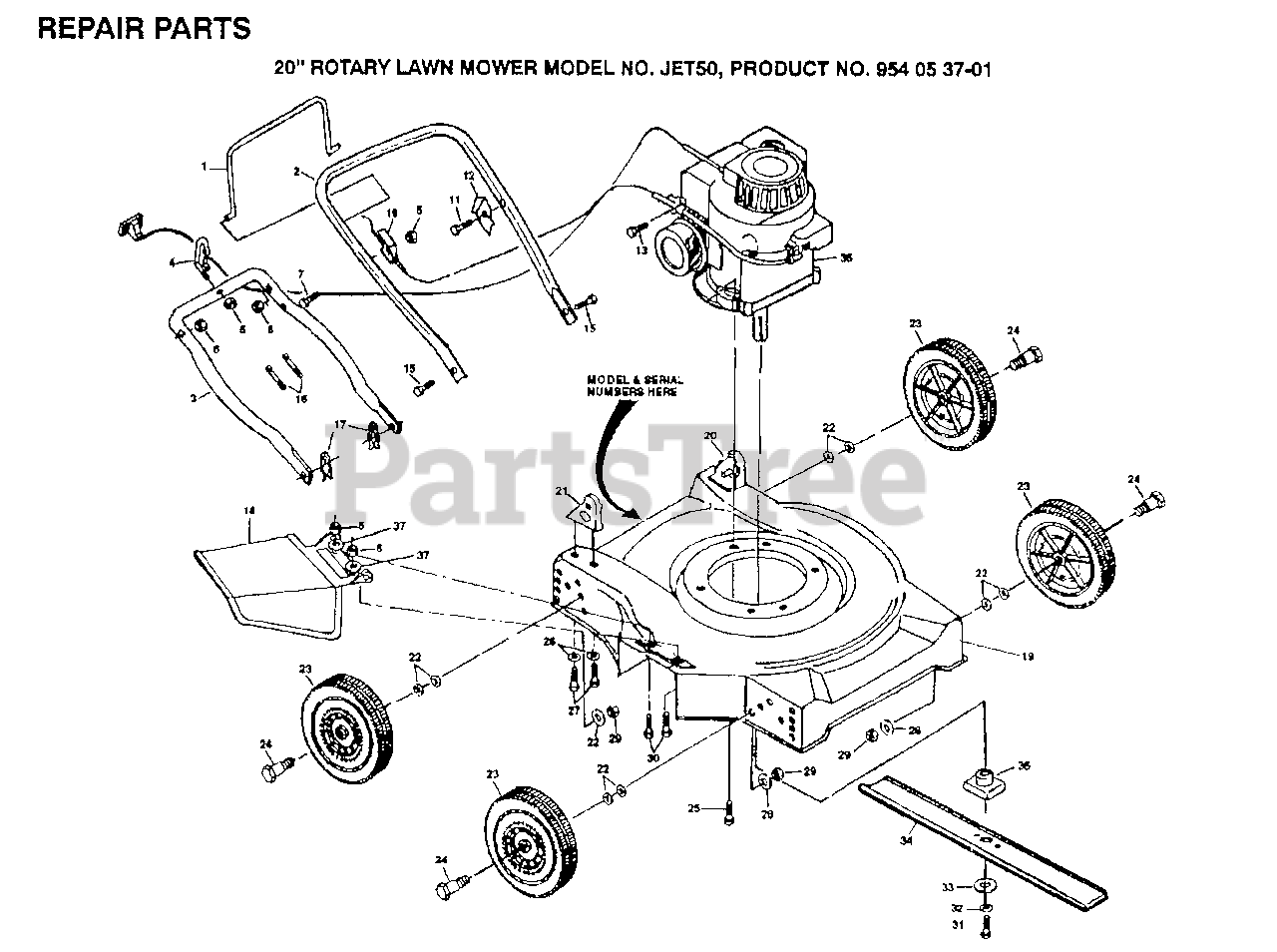

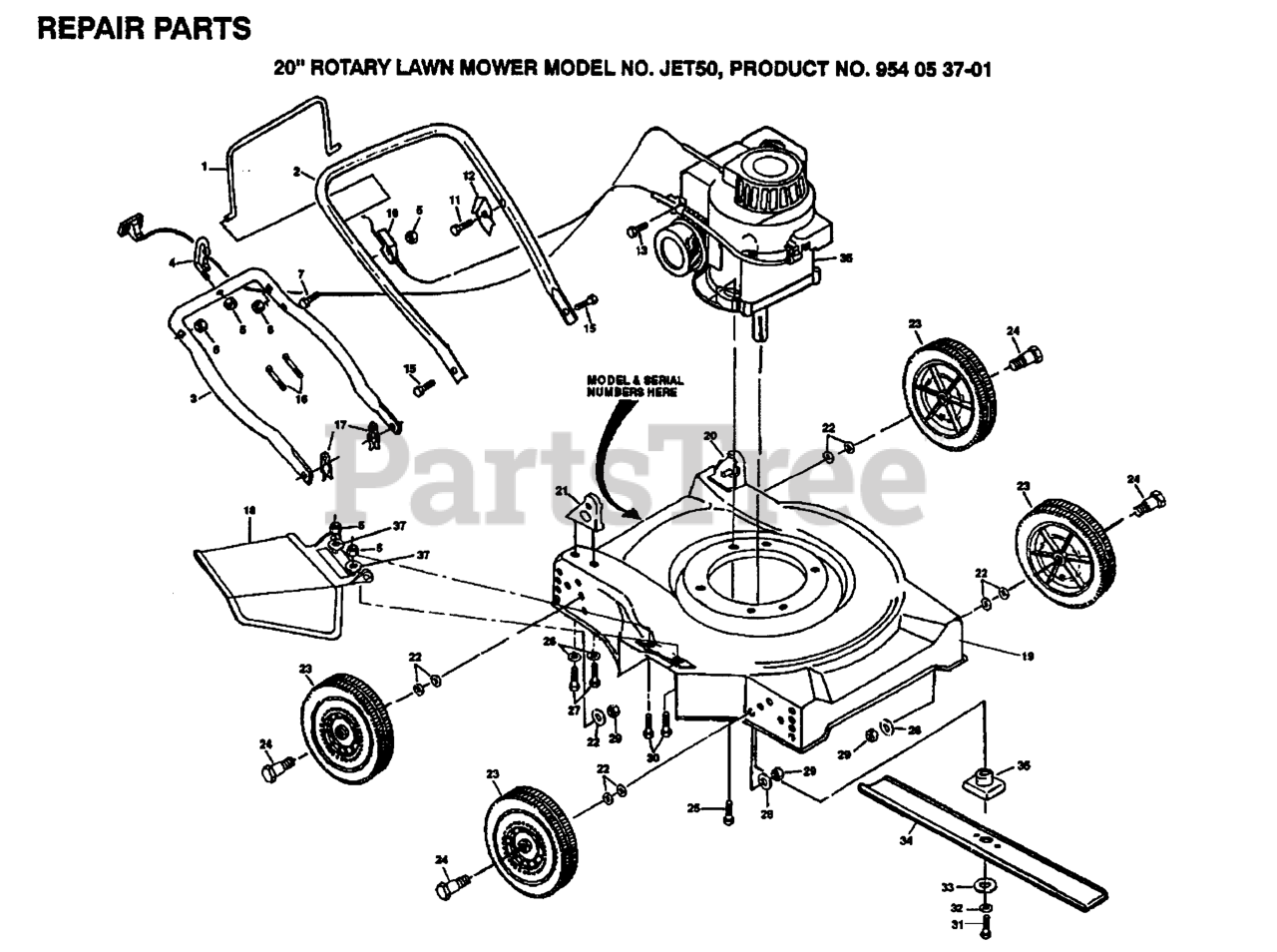

Repair Parts Parts Diagram

  • Title

1

Husqvarna 532801358

Control Bar
(Superseded to 532086902)

$

$

Not available

2

Husqvarna 532125174

Upper Handle

$

$

Not available

3

Husqvarna 532125160

Lower Handle
(Superseded to 532157081)

$

$

Not available

4

Husqvarna 532103672

Rope Guide

$

$

Not available

5

Locknut 1/4-20

$

$

Not available

6

Locknut 5/16-18

$

$

Not available

7

Machine Screw 1/4-20 x 1-1/2

$

$

Not available

8

Washer

$

$

Not available

9

Spacer

$

$

Not available

10

Husqvarna 532851669

Engine Zone Control Cable

$18.99

$

Usually ships in 3-10 days

0

11

Hex Washer Head Screw #1024 x 1/2

$

$

Not available

12

Husqvarna 532125162

Up-Stop Bracket
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

13

Screw #10 x 5/8

$

$

Not available

15

Hex Head Bolt 5/16-18 x 1-3/4

$

$

Not available

16

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532881750

Discharge Guard

$

$

Currently unavailable

19

Husqvarna 532128423

Housing Assembly

$

$

Not available

20

Husqvarna 532125049

Handle Bracket Assembly (Left)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532125047

Handle Bracket Assembly (Right)
(Superseded to 532192983)

$42.99

$

Usually ships in 3-10 days

0

22

Washer

$

$

Not available

23

Husqvarna 532130491

Wheel & Tire Assembly 7.0 x 1-1/2

$

$

Not available

24

Husqvarna 532067609

Shoulder Bolt

$9.49

$

Usually ships in 3-10 days

0

25

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$

$

Not available

26

Washer

$

$

Not available

27

Thread Cutting Screw 5/16-18 x 3/4

$

$

Not available

28

Washer

$

$

Not available

29

Locknut 3/8-16

$

$

Not available

30

Hex Head Bolt

$

$

Not available

31

Husqvarna 532851084

Hex Head Screw 3/8-24 x 1-3/8 Gr. 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

32

Helical Lockwasher 3/8

$

$

Not available

33

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532850972

20" Blade
(Superseded to 532145106)

$14.99

$

In Stock, Qty 5

0

35

Husqvarna 532850977

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

36

Engine - Briggs & Stratton Model No. 92502

Note: Must be purchased through an authorized Briggs & Stratton Dealer.

$

$

Not available

37

UNKNOWN

$

$

Not available
