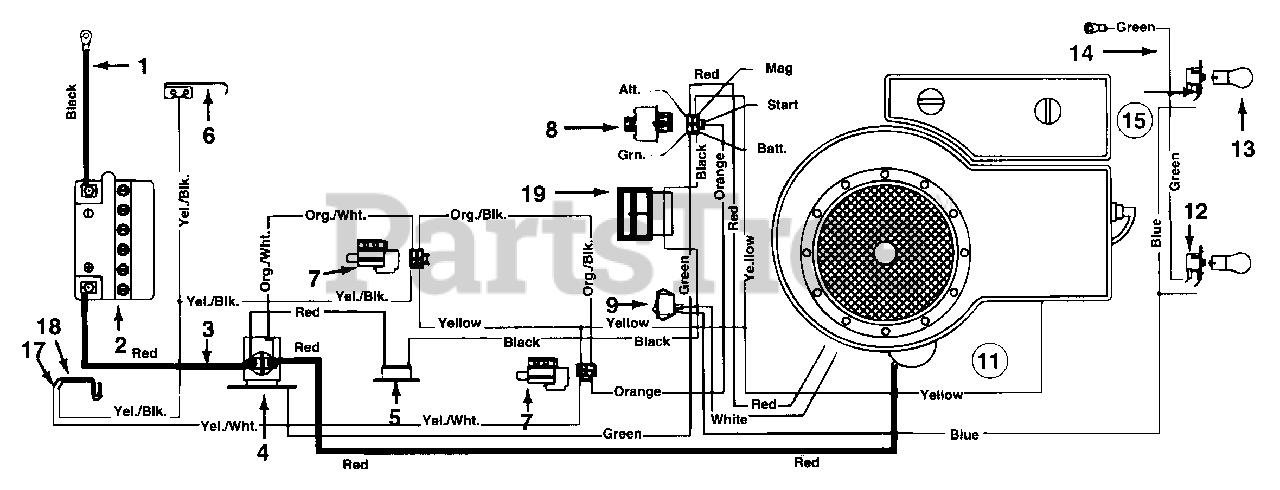

L-12 (134H471F190) - White Outdoor 38" Lawn Tractor (1994) Electrical System Parts Diagram

38" Lawn Tractor

Electrical System Parts Diagram

  • Title

1

MTD 725-0976A

Ground Wire

$

$

Not available

2

MTD 753-0607

Battery

$170.99

$

Usually ships in 3-6 days

0

3

MTD 725-1351

Electric Wire - 8.0" Lg.

Note: NLA

$

$

Not available

4

MTD 925-1426A

Solenoid

$26.99

$

In Stock, Qty 20+

0

5

MTD 753-0685

Circuit Breaker

$35.99

$

In Stock, only 1 left!

0

6

MTD 725-1644

Spring Switch

Note: Reverse

$9.99

$

In Stock, only 2 left!

0

7

MTD 925-1657A

Safety Switch

$24.99

$

In Stock, Qty 14

0

8

MTD 925-0267B

Ignition Switch

$35.99

$

In Stock, Qty 13

0

9

MTD 925-0634

Light Switch

$17.99

$

In Stock, Qty 5

0

11

MTD 929-0195A

Harness w/Amp & Light Switch

$235.99

$

In Stock, only 1 left!

0

12

MTD 925-1651

Socket

Note: Sq. Headlights

$

$

Not available

13

MTD 925-0963

Bulb

Note: Sq. Headlights

$7.49

$

In Stock, Qty 20+

0

14

MTD 725-0916A

Ground Wire

$

$

Not available

15

MTD 629-0084

Headlight Harness w/Amp & Light Switch

Note: NLA

$

$

Not available

15

MTD 629-0103

Headlight Harness

$

$

Not available

17

MTD 925-1303

Safety Switch (Seat)

$6.49

$

In Stock, Qty 8

0

18

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 8

0

19

MTD 925-0925

Ammeter

$31.99

$

In Stock, only 1 left!

0
