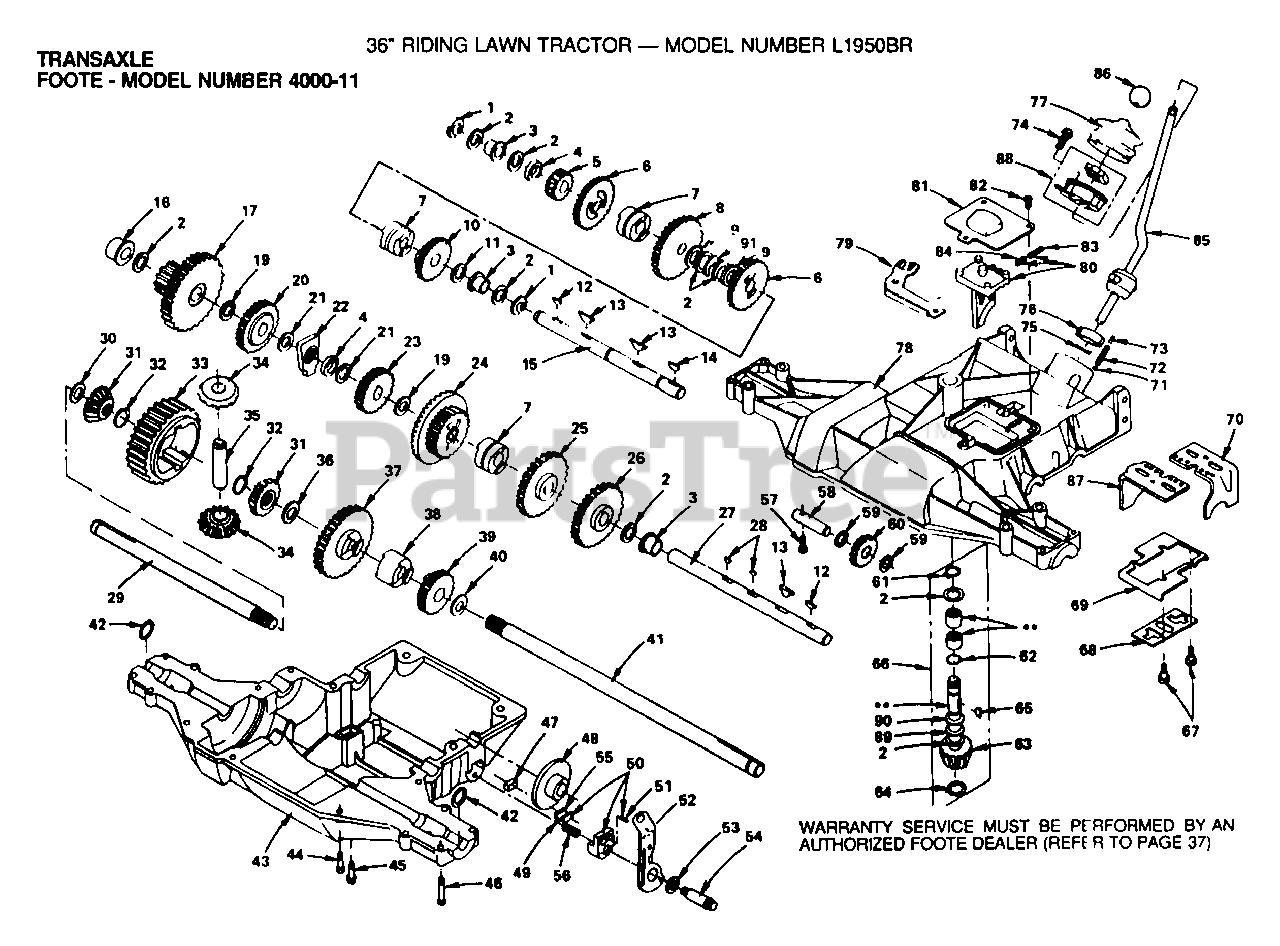

L 1950 BR - Electrolux/AYP Lawn Tractor TRANSAXLE P/N BREAKOUT Parts Diagram

Lawn Tractor

TRANSAXLE P/N BREAKOUT Parts Diagram

  • Title

1

Electrolux/AYP 1106

RING, RETAINING

$

$

Not available

2

Electrolux/AYP 1145

WASHER, PLAIN .632 X 1.00 X .060

$

$

Not available

2

Electrolux/AYP 1358

WASHER PLAIN

$

$

Not available

2

Electrolux/AYP 1425

WASHER PLAIN

$

$

Not available

2

Electrolux/AYP 1068

WASHER PLAIN

$

$

Not available

2

Electrolux/AYP 1424

WASHER PLAIN

$

$

Not available

2

Electrolux/AYP 1082

WASHER PLAIN

$

$

Not available

2

Electrolux/AYP 1423

WASHER, PLAIN .632 X 1.00 X .026

$

$

Not available

2

Electrolux/AYP 1441

WASHER PLAIN

$

$

Not available

2

Electrolux/AYP 1708

WASHER

$

$

Not available

3

Electrolux/AYP 1101

BEARING

$

$

Not available

4

Electrolux/AYP 3309

SPACER

$

$

Not available

5

Electrolux/AYP 1174

GEAR, SPUR 13T

$

$

Not available

6

Electrolux/AYP 3458

GEAR, SPUR 25T

$

$

Not available

7

Electrolux/AYP 1574

COLLAR

$

$

Not available

8

Electrolux/AYP 3459

GEAR, SPUR 30T

$

$

Not available

9

Electrolux/AYP 3410

SPACER

$

$

Not available

10

Electrolux/AYP 3457

GEAR, SPUR 20T

$

$

Not available

11

Electrolux/AYP 1959

WASHER PLAIN

$

$

Not available

12

Electrolux/AYP 1369

KEY WOODRUFF #3

$

$

Not available

13

Electrolux/AYP 3068

KEY

$

$

Not available

14

Electrolux/AYP 1375

KEY, WOODRUFF, #61

$

$

Not available

15

Electrolux/AYP 4131

SHAFT

$

$

Not available

16

Electrolux/AYP 3186

BEARING

$

$

Not available

17

Electrolux/AYP 4036

ASSY, GEAR, SPUR 12T

$

$

Not available

19

Electrolux/AYP 1425

WASHER PLAIN

$

$

Not available

20

Electrolux/AYP 3147

GEAR, SPUR 25T

$

$

Not available

21

Electrolux/AYP 1423

WASHER, PLAIN .632 X 1.00 X .026

$

$

Not available

22

Electrolux/AYP 2794

ASSY, SUPPORT SHAFT

$

$

Not available

23

Electrolux/AYP 3149

GEAR, SPUR 20T

$

$

Not available

24

Electrolux/AYP 2792

ASSY, GEAR SPUR & BEVEL

$

$

Not available

25

Electrolux/AYP 3425

GEAR, SPUR 33T

$

$

Not available

26

Electrolux/AYP 3153

GEAR, SPUR 30T

$

$

Not available

27

Electrolux/AYP 3161

SHAFT

$

$

Not available

28

Electrolux/AYP 3311

KEY

$

$

Not available

29

Electrolux/AYP 3163

AXLE

$

$

Not available

30

Electrolux/AYP 3180

WASHER PLAIN

$

$

Not available

30

Electrolux/AYP 3184

WASHER, PLAIN .758 X 1.25 X .031

$

$

Not available

30

Electrolux/AYP 3198

WASHER PLAIN

$

$

Not available

30

Electrolux/AYP 3408

WASHER PLAIN

$

$

Not available

31

Electrolux/AYP 3155

GEAR MITER 15T

$

$

Not available

32

Electrolux/AYP 3395

RING

$

$

Not available

33

Electrolux/AYP 3154

GEAR, SPUR, 32T

$

$

Not available

34

Electrolux/AYP 3156

GEAR MITER 15T

$

$

Not available

35

Electrolux/AYP 3179

SHAFT, CROSS

$

$

Not available

36

Electrolux/AYP 3184

WASHER, PLAIN .758 X 1.25 X .031

$

$

Not available

37

Electrolux/AYP 3157

GEAR MITER 35T

$

$

Not available

38

Electrolux/AYP 3158

LOCK

$

$

Not available

39

Electrolux/AYP 3159

GEAR, SPUR 22T

$

$

Not available

40

Electrolux/AYP 3180

WASHER PLAIN

$

$

Not available

41

Electrolux/AYP 3162

AXLE

$

$

Not available

42

Electrolux/AYP 3191

SEAL FELT

$

$

Not available

43

Electrolux/AYP 3264-2

HOUSING

$

$

Not available

44

Electrolux/AYP 3396

SCREW 1/4-20 X .875

$

$

Not available

45

Electrolux/AYP 3323

SCREW

$

$

Not available

46

Electrolux/AYP 1360

SCREW 1/4-20 X 1.31

$

$

Not available

47

Electrolux/AYP 3404

PUCK, FRICTION

$

$

Not available

48

Electrolux/AYP 1902

DISC, BRAKE

$

$

Not available

49

Electrolux/AYP 3293

SPACER

$

$

Not available

50

Electrolux/AYP 2618

SPRING, COMPRESSION

$

$

Not available

51

Electrolux/AYP 1606

NO LONGER AVAILABLE

$

$

Not available

52

Electrolux/AYP 2977

ASSY, LEVER

$

$

Not available

53

Electrolux/AYP 1546

WASHER, PLAIN

$

$

Not available

54

Electrolux/AYP 1477

BOLT, SHOULDER

$

$

Not available

55

Electrolux/AYP 3242

PUCK, FRICTION

$

$

Not available

56

Electrolux/AYP 1479

SPRING, COMPRESSION

$

$

Not available

57

Electrolux/AYP 3188

SCREW

$

$

Not available

58

Electrolux/AYP 3182

SHAFT

$

$

Not available

59

Electrolux/AYP 3194

WASHER, PLAIN, 1.00 X .505 X .020

$

$

Not available

60

Electrolux/AYP 2718

ASSY, GEAR, IDLER

$

$

Not available

61

Electrolux/AYP 1099

RING RETAINING

$

$

Not available

62

Electrolux/AYP 3312

O-RING

$

$

Not available

63

Electrolux/AYP 3232

PINION

$

$

Not available

64

Electrolux/AYP 1100

RING RETAINING

$

$

Not available

65

Electrolux/AYP 1374

KEY WOODRUFF #9

$

$

Not available

66

Electrolux/AYP 2945

ASSY, KIT INPUT SHAFT

$

$

Not available

67

Electrolux/AYP 3240

SCREW

$

$

Not available

68

Electrolux/AYP 3296

PLATE

$

$

Not available

69

Electrolux/AYP 3208

PLATE

$

$

Not available

70

Electrolux/AYP 3189

FORK

$

$

Not available

71

Electrolux/AYP 1037

BALL

$

$

Not available

72

Electrolux/AYP 1475

SPRING

$

$

Not available

73

Electrolux/AYP 3239

SCREW

$

$

Not available

74

Electrolux/AYP 3306

SCREW

$

$

Not available

75

Electrolux/AYP 1096

WASHER

$

$

Not available

76

Electrolux/AYP 1091

INSERT

$

$

Not available

77

Electrolux/AYP 3413

BOOT

$

$

Not available

78

Electrolux/AYP 3265-4

HOUSING

$

$

Not available

79

Electrolux/AYP 3192

LEVER

$

$

Not available

80

Electrolux/AYP 2960

ASSY, KIT, FORK, SHIFTER

$

$

Not available

81

Electrolux/AYP 3193

PLATE
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

82

Electrolux/AYP 3035

SCREW

$

$

Not available

83

Electrolux/AYP 3427

SPRING

$

$

Not available

84

Electrolux/AYP 3428

PIN

$

$

Not available

85

Electrolux/AYP 2975

ASSY, LEVER, SHIFT

$

$

Not available

86

Electrolux/AYP 3444

KNOB

$

$

Not available

87

Electrolux/AYP 3297

FORK

$

$

Not available

88

Electrolux/AYP 2968

ASSY, COMPONENT

$

$

Not available

89

Electrolux/AYP 1425

WASHER PLAIN

$

$

Not available

90

Electrolux/AYP 1068

WASHER PLAIN

$

$

Not available

91

Electrolux/AYP 1099

RING RETAINING

$

$

Not available
