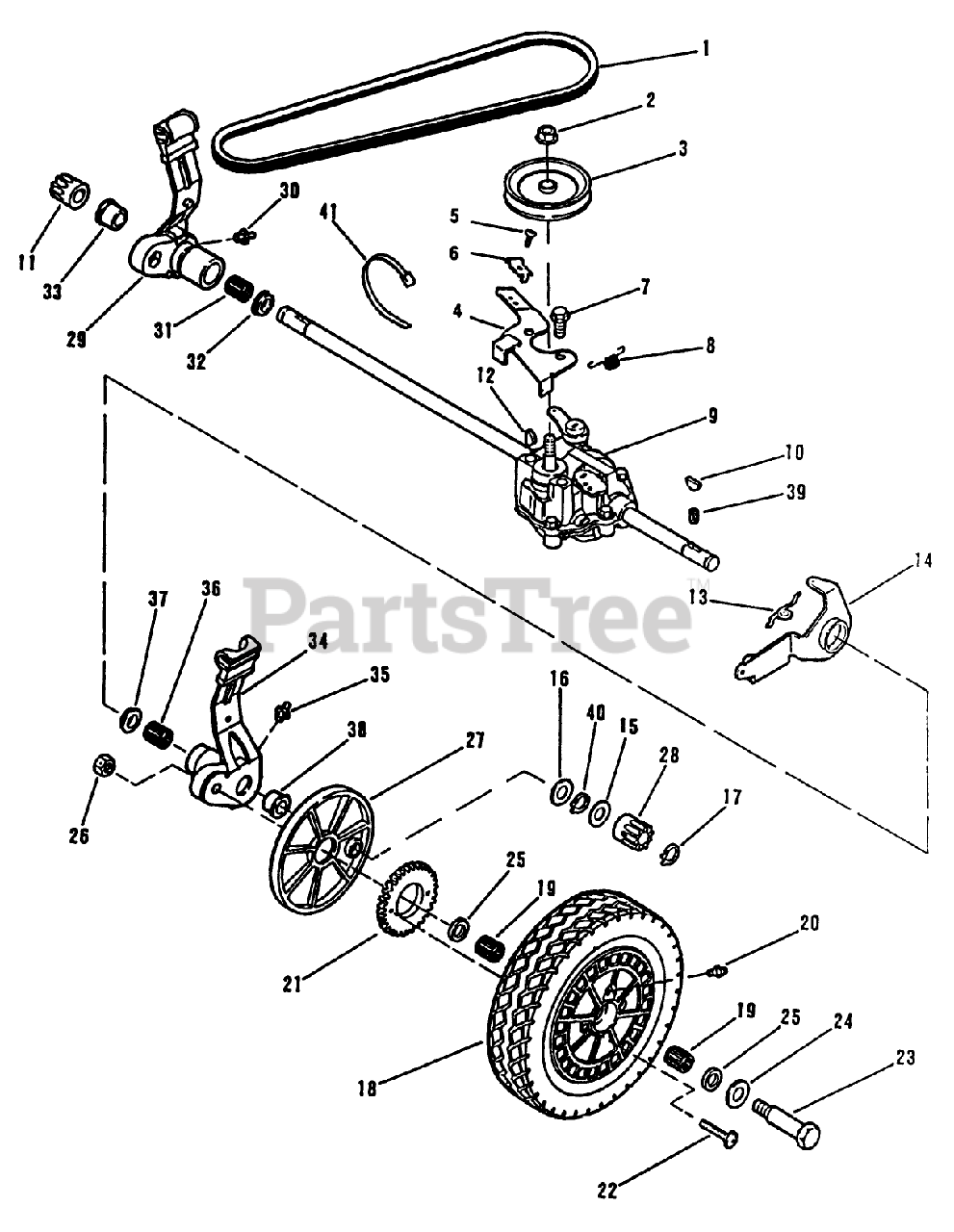

L 21 ZSN C - Lawn-Boy Walk-Behind Mower (SN: K00000001 - K99999999) (1991) Drive Group Models: C21zmra B Parts Diagram

Walk-Behind Mower

Drive Group Models: C21zmra B Parts Diagram

  • Title

1

Lawn-Boy 613830

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 613770

See Supercession: 95-1579
(Superseded to 95-1579)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 613445

PULLEY TRANS ADAMS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$95.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 684623

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613387

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 613387

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

6

Lawn-Boy 613385

CLAMP-CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 146134

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 613581

SPRING-EXTENSION

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 684129

TRANSMISSION ASSEM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 612066

KEY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 613355

PINION(R)MET ALLEG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$20.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 611840

KEY GALGER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 613579

LINK

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 684302

See Supercession: 684707
(Superseded to 684707)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 608030

THRUST WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

16

Lawn-Boy 611878

WASHER-THRUST

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 603147

RETAINING RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 684575

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

Note: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 611831

FITTING LINCOLN

Note: Parts shown with bullet included with assembly above.

$6.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 611831

FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$6.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 614266

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 614266

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

22

Lawn-Boy 614267

SCREW-TORX

Note: Parts shown with bullet included with assembly above.

$5.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 614267

SCREW-TORX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 614139

BOLT WHEEL QUAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 605256

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 5

0

25

Lawn-Boy 605255

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 603773

LOCKNUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 613869

COVER-WHEEL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 613356

PINION(L)MET ALLEG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 684482

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 603615

**FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 603615

**FITTING LINCOLN

Note: Parts shown with bullet included with assembly above.

$

$

Not available

31

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

Note: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 20+

0

31

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

32

Lawn-Boy 611824

SEAL CR IND

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 611824

SEAL CR IND

Note: Parts shown with bullet included with assembly above.

$14.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 614029

See Supercession: 684525
(Superseded to 684525)

Note: Parts shown with bullet included with assembly above.

$

$

Not available

33

Lawn-Boy 614029

See Supercession: 684525
(Superseded to 684525)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684523

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

Lawn-Boy 684523

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 684483

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 603615

**FITTING LINCOLN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 603615

**FITTING LINCOLN

Note: Parts shown with bullet included with assembly above.

$

$

Not available

36

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

Note: Parts shown with bullet included with assembly above.

$5.49

$

In Stock, Qty 20+

0

36

Lawn-Boy 608286

See Supercession: 117-3500
(Superseded to 117-3500)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 611824

SEAL CR IND

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

37

Lawn-Boy 611824

SEAL CR IND

Note: Parts shown with bullet included with assembly above.

$14.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 614029

See Supercession: 684525
(Superseded to 684525)

Note: Parts shown with bullet included with assembly above.

$

$

Not available

38

Lawn-Boy 614029

See Supercession: 684525
(Superseded to 684525)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684524

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 684524

DISCONTINUED

Note: Parts shown with bullet included with assembly above.

$

$

Not available

39

Lawn-Boy 612067

SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

40

Lawn-Boy 607676

RET RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 8

0

41

Lawn-Boy 613911

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
