L 824E (1696171-00) - Snapper 24" Snow Thrower, 8hp Discharge Chute Group - Left Hand Crank Parts Diagram

24" Snow Thrower, 8hp

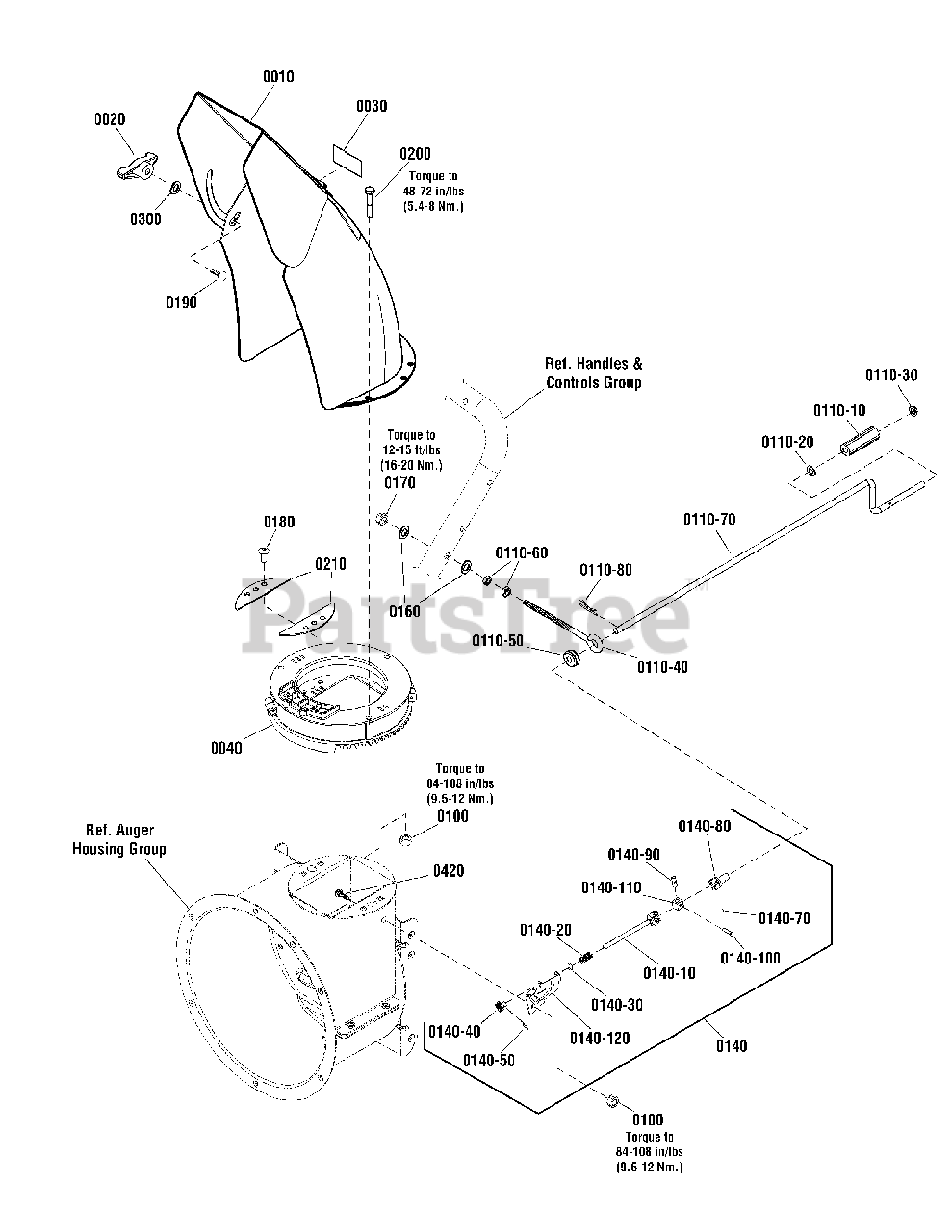

Discharge Chute Group - Left Hand Crank Parts Diagram

  • Title

0010

Snapper 1752977D

CHUTE
(Superseded to 1752977DYP)

$151.99

$

Usually ships in 2-12 days

0

0020

Snapper 7035744

KNOB, Wing, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0030

Snapper 1738340

DECAL, Hinge
(Superseded to 1738340YP)

$11.99

$

Usually ships in 2-12 days

0

0040

Snapper 1752395

CHUTE ROTATION ASSEMBLY, LH Crank
(Superseded to 1752395YP)

$39.99

$

Usually ships in 2-12 days

0

0100

Snapper 1923358

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0110-10

Snapper 724382

KNOB, Sleeve
(Superseded to 51443MA)

$7.49

$

Usually ships in 2-12 days

0

0110-20

Snapper 723184

WASHER. Flat, 3/8
(Superseded to 703326)

$3.99

$

Usually ships in 2-12 days

0

0110-30

Snapper 725415

NUT, Push, 3/8
(Superseded to 73664MA)

$4.99

$

In Stock, only 3 left!

0

0110-40

Snapper 722191

EYEBOLT, 3/8-16 x 6-1/2"
(Superseded to 1501456MA)

$9.49

$

Usually ships in 2-12 days

0

0110-50

Snapper 722044

GROMMET, Eye Bolt
(Superseded to 148MA)

$

$

Not available

0110-60

Snapper 725323

NUT, Hex Jam, 3/8-16

$

$

Not available

0110-70

Snapper 722075

CRANK, Chute Turn
(Superseded to 703120)

$29.99

$

In Stock, only 2 left!

0

0110-80

Snapper 720071

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0140

Snapper 1752560

BRACKET ASSEMBLY, Chute Rotation
(Superseded to 1752560YP)

Note: (Includes Ref. Nos. 0140-10, 0140-20, 0140-30, 0140-40, 0140-50, 0140-60, 0140-70, 0140-80, 0140-90, 0140-100, 0140-110 & 0140-120)

$55.99

$

Usually ships in 2-12 days

0

0140-10

Snapper 722202

ROD, Yoke Crank
(Superseded to 1501533YZMA)

$11.99

$

Usually ships in 2-12 days

0

0140-20

Snapper 722414

SPRING, Compression
(Superseded to 164X37MA)

$9.49

$

In Stock, only 1 left!

0

0140-30

Snapper 720164

WASHER, Flat, 3/8
(Superseded to 017X48MA)

$8.49

$

Usually ships in 2-12 days

0

0140-40

Snapper 722073

GEAR, 9 Tooth
(Superseded to 1501067MA)

$17.99

$

In Stock, only 3 left!

0

0140-50

Snapper 722139

PIN, Hair
(Superseded to 1501293MA)

$4.99

$

In Stock, only 2 left!

0

0140-70

Snapper 724605

PIN, Cotter
(Superseded to 579493MA)

$4.49

$

In Stock, only 4 left!

0

0140-80

Snapper 722076

YOKE TUBE ASSEMBLY, Adapter
(Superseded to 1501075YZMA)

$10.99

$

In Stock, only 1 left!

0

0140-90

Snapper 724564

PIN, Universal Joint
(Superseded to 578060MA)

$7.49

$

In Stock, Qty 5

0

0140-100

Snapper 724579

PIN, Clevis, 1/4
(Superseded to 578309MA)

$5.49

$

Usually ships in 2-12 days

0

0140-110

Snapper 724565

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, Qty 10

0

0140-120

BRACKET, Mounting, Chute Rotation Gear

Note: (Not a serviceable part. Order Ref. No. 0140)

$

$

Not available

0160

Snapper 725332

WASHER. Flat, 3/8

$

$

Not available

0170

Snapper 727481

NUT, Hex, Nylock, 3/8-16
(Superseded to 71046MA)

$4.49

$

In Stock, only 1 left!

0

0180

Snapper 880456

SCREW, Torx Truss Head, 1/4-20 x 7/8
(Superseded to 880456YP)

$3.49

$

Usually ships in 2-12 days

0

0190

Snapper 1931337

BOLT, Carriage, Short Neck, 5/16-18 x 1-1/2
(Superseded to 80003669)

$4.49

$

In Stock, Qty 10

0

0200

Snapper 880804

SCREW, Hi-Lo, 1/4 x 3/4
(Superseded to 880804YP)

$3.99

$

Usually ships in 2-12 days

0

0210

Snapper 1753477

STIFFENER, Chute Rotation
(Superseded to 1753477YP)

$14.99

$

Usually ships in 2-12 days

0

0300

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.49

$

In Stock, Qty 5

0

0420

Snapper 1931315

BOLT, Carriage, Short Neck, 1/4-20 x 1/2, G5
(Superseded to 703978)

$3.99

$

In Stock, only 3 left!

0
