Lawn Mower - BCS America 38" Rotary Lawn Mower Attachment (1994 & Before) 38" Mower Gear Box/Blade Drive (SN: 10000 - 40837) Parts Diagram

38" Rotary Lawn Mower Attachment

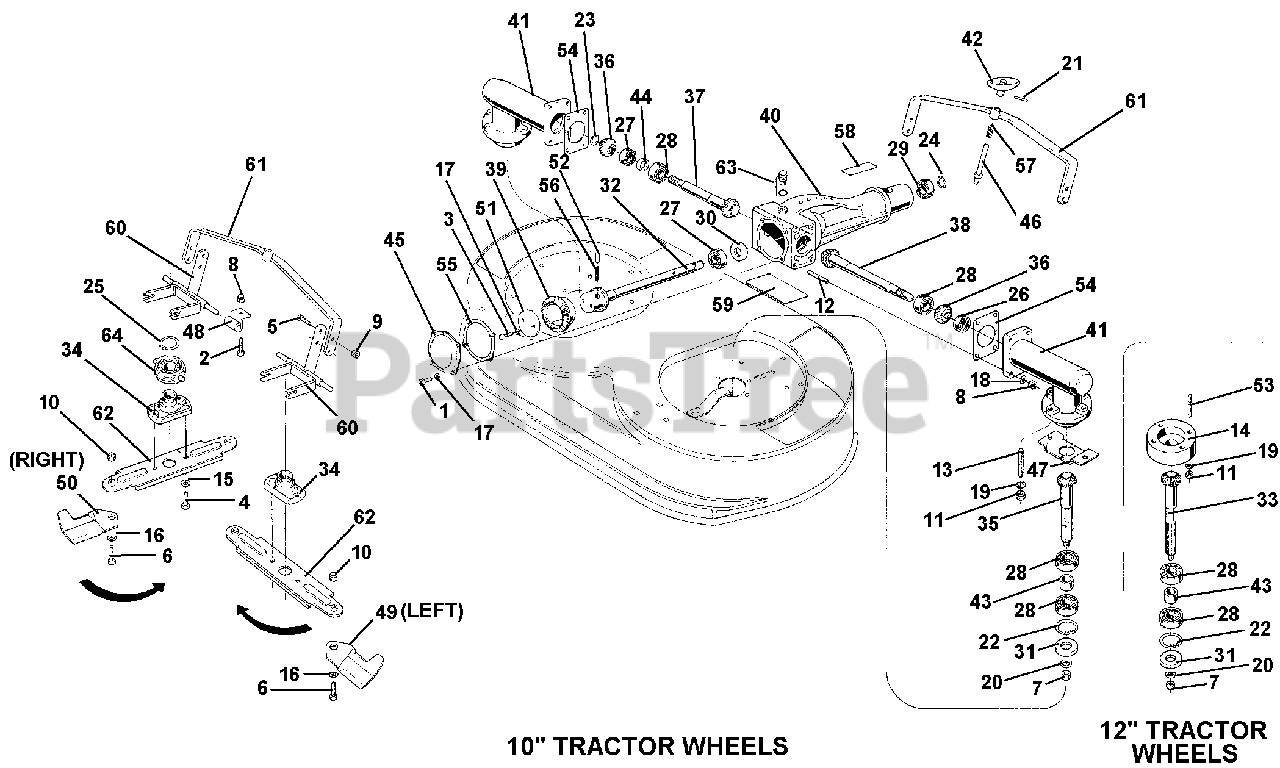

38" Mower Gear Box/Blade Drive (SN: 10000 - 40837) Parts Diagram

  • Title

1

BCS America 311.11091

SCREW TE M6 X 14

$1.49

$

In Stock, Qty 5

0

2

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.12082

SCREW M6 X 12

$0.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12148

SCREW M8 X 14

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 31112150

SCREW M8 X 20

$1.49

$

In Stock, only 1 left!

0

6

BCS America 311.12211

SCREW M10 X 30

$1.49

$

In Stock, Qty 8

0

7

BCS America 31231120

NUT,LOW M12

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 9

0

9

BCS America 312.41084

NUT

$1.49

$

Usually ships in 5-8 days

0

10

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

Usually ships in 5-8 days

0

11

BCS America 312.41101

NUT, SELF LOCKING M10 LOW

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 313.12088

STUD M8 X 40 X 14 X 14

$8.49

$

Usually ships in 5-8 days

0

13

BCS America 313.12101

STUD M10 X 37 X 19 X 15 8G

$7.99

$

Usually ships in 5-8 days

0

14

BCS America 313.12106

STUD M10 X 68 X 34 X 15

$13.99

$

Usually ships in 5-8 days

0

15

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, only 3 left!

0

16

BCS America 314.21101

SUPER WASHER 10 DIN 6796

$1.99

$

In Stock, Qty 5

0

17

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

18

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

19

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

Usually ships in 5-8 days

0

20

BCS America 31423130

WASHER, LOCK 13

$1.49

$

Usually ships in 5-8 days

0

21

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

In Stock, only 2 left!

0

22

BCS America 351.11052

CIRCLIP, INTERN D 52

$1.99

$

In Stock, only 3 left!

0

23

BCS America 351.21019

OUTSIDE CIRCLIP

$1.49

$

Usually ships in 5-8 days

0

24

BCS America 35121020

CIRCLIP EXTERN. D 20

$1.49

$

In Stock, Qty 7

0

25

BCS America 351.21035

EXT. CIRCLIP D 35

$1.99

$

Usually ships in 5-8 days

0

26

BCS America 37111170

BEARING 17 X 40 X 12 6203

$9.99

$

Usually ships in 5-8 days

0

27

BCS America 371.11201

BEARING 20 X 47 X 14 6204

$14.99

$

In Stock, only 2 left!

0

28

BCS America 37111250

BEARING 25 X 52 X 15 6205

$

$

Not available

29

BCS America 37112200

BEARING 20 X 47 X 14 6204 2RS ST

$

$

Not available

30

BCS America 382.12003

SEAL, 0IL 20 X 42 X 7 STANDARD

$7.49

$

Usually ships in 5-8 days

0

31

BCS America 382.12502

OIL SEAL 25 X 52 X 7

$9.99

$

Usually ships in 5-8 days

0

32

BCS America 524.47311

PROPELLER SHAFT

$493.99

$

Usually ships in 5-8 days

0

33

BCS America 524.47346

BEVEL PINION

$

$

Currently unavailable

34

BCS America 524.47363

BLADE HOLDER HUB

$238.99

$

Usually ships in 5-8 days

0

35

BCS America 524.47375

BEVEL PINION

$

$

Currently unavailable

36

BCS America 524.47376

BEVEL GEAR

$

$

Currently unavailable

37

BCS America 524.47394

R.H. SHAFT

$

$

Currently unavailable

38

BCS America 524.47395

L.H. SHAFT

$

$

Currently unavailable

39

BCS America 524.47396

RING BEVEL GEAR

$

$

Currently unavailable

40

BCS America 532.47304

CENTRAL BODY OF 2 BLADES L.M.

$

$

Currently unavailable

41

BCS America 532.47305

SIDE BODY OF 2 BL. LAWN MOWER

$396.99

$

Usually ships in 5-8 days

0

42

BCS America 552.49665

KNOB

$17.99

$

Usually ships in 5-8 days

0

43

BCS America 56143660

SPACER 25 X 30 X 24

$15.99

$

Usually ships in 5-8 days

0

44

BCS America 561.47312

STOP RING

$25.20

$

Usually ships in 5-8 days

0

45

BCS America 561.47319

CAP

$34.72

$

Usually ships in 5-8 days

0

46

BCS America 561.47336

SELECTOR PIN

$44.99

$

Usually ships in 5-8 days

0

47

BCS America 561.51334

PROTECTION

$21.99

$

Usually ships in 5-8 days

0

48

BCS America 561.51349

SUPPORT

$18.99

$

Usually ships in 5-8 days

0

49

BCS America 563.47367

L.H. BLADE

$45.99

$

Usually ships in 5-8 days

0

50

BCS America 563.47368

R.H. BLADE

$43.99

$

In Stock, only 2 left!

0

51

BCS America 563.48584

DISC, GEAR LOCKING

$23.99

$

Usually ships in 5-8 days

0

52

BCS America 564.43655

CAP

$5.99

$

Usually ships in 5-8 days

0

53

BCS America 572.47345

CRANKCASE SPACER

$248.99

$

Usually ships in 5-8 days

0

54

BCS America 580.47321

SIDE GASKET

$4.49

$

Usually ships in 5-8 days

0

55

BCS America 580.47322

GASKET

$2.99

$

Usually ships in 5-8 days

0

56

BCS America 580.48021

STOP LEVER SPRING

$8.99

$

Usually ships in 5-8 days

0

57

BCS America 58049830

FERRULE SPRING

$4.99

$

In Stock, only 2 left!

0

58

BCS America 580.51337

TRANSFER FOR LAWN MOWER

$4.49

$

Usually ships in 5-8 days

0

59

BCS America 580.51372

STICKER

$16.99

$

Usually ships in 5-8 days

0

60

BCS America 580.47329

ADJUSTING LEVER

$

$

Currently unavailable

61

BCS America 590.47333

CROSSPIECE

$86.99

$

Usually ships in 5-8 days

0

62

BCS America 590.47364

BLADE HOLDER

$104.99

$

Usually ships in 5-8 days

0

63

BCS America 590.51045

BREATHER CAP 1/4 GAS

$18.99

$

Usually ships in 5-8 days

0

64

BCS America 590.51315

COLLAR

$156.99

$

Usually ships in 5-8 days

0
