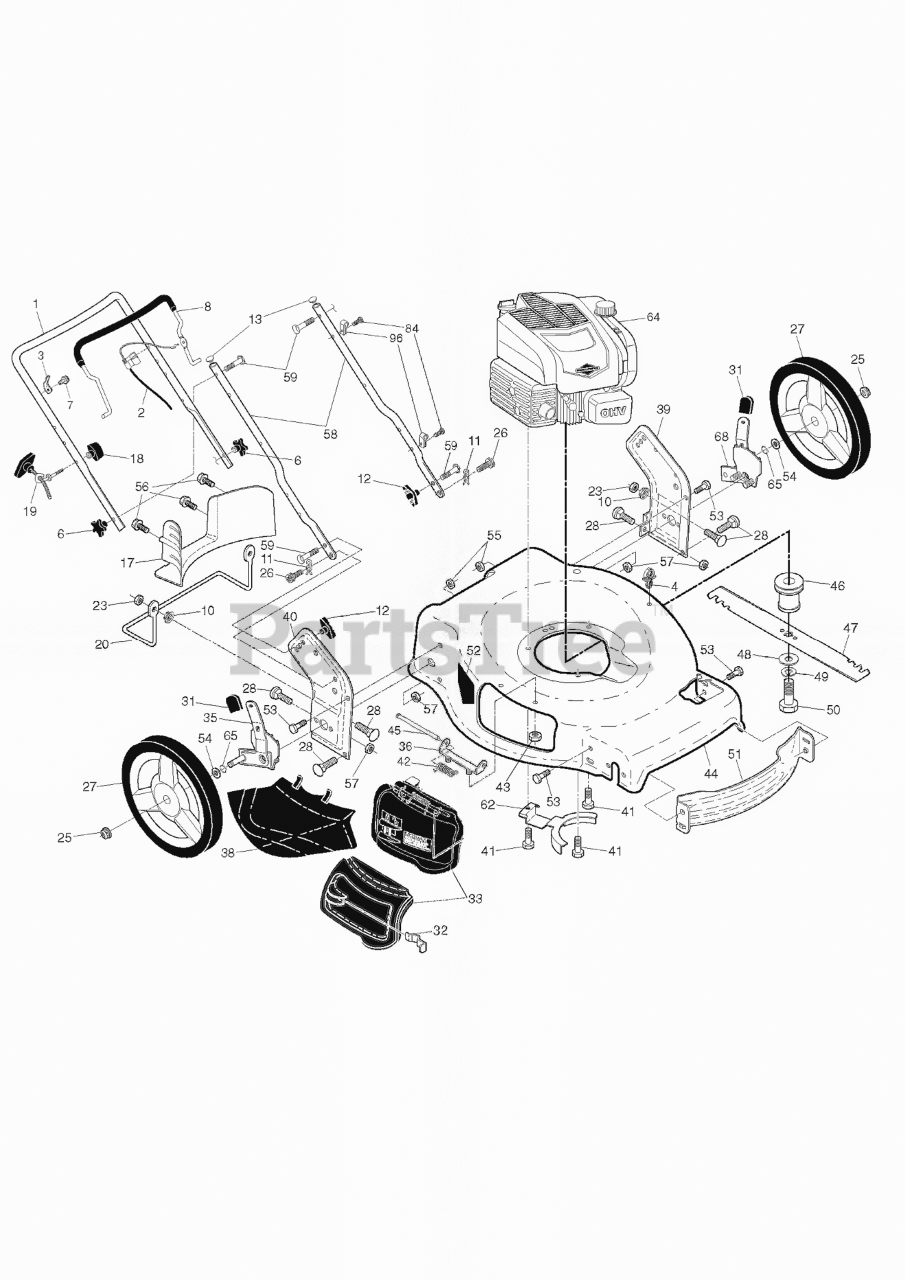

LB 155 S - Husqvarna Walk-Behind Mower (Original) ENGINE Parts Diagram

Walk-Behind Mower

ENGINE Parts Diagram

  • Title

19

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

$4.99

$

In Stock, only 2 left!

0

1

Husqvarna 585854803

HANDLE.UP.CURV.PUSH.498

$14.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532435059

BRACKET.ENG/BELTKEEPER
(Superseded to 532425711)

$

$

Not available

6

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 1 left!

0

4

Husqvarna 532145006

PUSH CLIP

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 532420939

CABLE.MZR.FGD.PLUS

Note: For all EXCEPT 96121002700, 96121002701

$17.99

$

In Stock, Qty 10

0

39

Husqvarna 585900703

BRACKET.ASM.HANDLE.LT.22+.GREY

Note: For all EXCEPT 96121002700, LH

$27.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532441192

LATCH.DOOR.ZINC

Note: For all EXCEPT 96121003702, 96121003703

$3.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

Husqvarna 115964740

NEEDS DESCRIPTION

Note: For 96121003702

$

$

Currently unavailable

42

Husqvarna 532193000

SPRING.TORSION

Note: For 96121002700, 96121002701, 96121003700, 96121003701

$7.49

$

In Stock, Qty 20+

0

26

Husqvarna 532419945

SCREW,DOOR/HANDLE.PIVOT

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532430034

BRACKET.UPSTOP.RT

Note: For 96121002700, 96121002701

$6.49

$

In Stock, Qty 7

0

8

Husqvarna 580849102

BAIL.OVER.MOLD.ERGO.MZR.ORANGE

Note: For 96121002700, 96121002701

$66.99

$

In Stock, only 4 left!

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 581353602

BRACKET.ASM.HNDL.RT.22+.GREY

Note: For 96121002700, RH

$

$

Not available

43

Husqvarna 532438130

NUT.FLANGE.1-4-20-SERR

Note: For 96121003700, 96121003701

$

$

Not available

10

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

In Stock, only 1 left!

0

Husqvarna 114062240

NEEDS DESCRIPTION

Note: For 96121003703

$

$

Currently unavailable

33

Husqvarna 593241102

DOOR ASSY KIT.MULCH DOOR.CE 22

Note: For 96121003702, 96121003703

$

$

Not available

18

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 585911001

WHEEL.12X1.75.CF H3SPK.RAD3.BB

$25.99

$

In Stock, Qty 19

0

64

000000000

Note: For 96121003703, B&S 103M02-0027-H5 B&S 103M02-0027-H5 1-800-233-3723

$

$

Not available

46

Husqvarna 581473301

ADAPTOR BLADE 25MM STAR

Note: For all EXCEPT 96121003703

$13.99

$

In Stock, Qty 20+

0

44

Husqvarna 581801901

KIT.HSG.22+FGD.SIDE.668.CE

$

$

Not available

58

Husqvarna 532441197

HANDLE.LOWER.22+BT.2PC.GRY

Note: For 96121002700

$

$

Not available

Husqvarna 532423849

BAG OF HARDWARE.22+

Note: For all EXCEPT 96121002700, INCLUDES KEY NUMBERS 12 & 56

$

$

Not available

64

000000000

Note: For 96121002700, 96121002701, B&S 124T02-0310-H1 FOR PARTS & SERVICE 1-800-233-3723

$

$

Not available

57

Husqvarna 532155377

NUT.FLANGE.5/16

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 587689302

BAIL.OM.ERGO.BENT.MZR.ORAN.668

Note: For all EXCEPT 96121002700, 96121002701

$18.99

$

Usually ships in 3-10 days

0

Husqvarna 115964720

NEEDS DESCRIPTION

Note: For 96121003702

$

$

Currently unavailable

47

Husqvarna 580244001

BLADE.22+4N1.2PIN.5STAR.(P07)
(Superseded to 580244002)

$24.99

$

In Stock, Qty 20+

0

38

Husqvarna 532426129

DEFLECTOR.CLIPPING.22.BLACK

$10.99

$

In Stock, Qty 20+

0

68

Husqvarna 532431141

ADJUSTER.ASM.9POS.HW.R/L

Note: LH

$34.99

$

In Stock, only 1 left!

0

58

Husqvarna 585908203

HANDLE.LOWER.22+.BT.GRAY
(Superseded to 593270403)

Note: For all EXCEPT 96121002700

$7.49

$

In Stock, only 1 left!

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

Note: For all EXCEPT 96121003702, 96121003703

$

$

Not available

13

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532424033

CABLE.MZR.FGD.22+.ERGO

Note: For 96121002700, 96121002701

$34.99

$

In Stock, only 1 left!

0

28

Husqvarna 872250505

BOLT
(Superseded to 872140505)

Note: For 96121002700

$3.99

$

In Stock, Qty 20+

0

Husqvarna 114062210

NEEDS DESCRIPTION

Note: For 96121003703

$

$

Currently unavailable

11

Husqvarna 532425575

COTTER.HAIRPIN.DOOR/HANDLE.PIV

$6.49

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

Husqvarna 114062253

NEEDS DESCRIPTION

Note: For 96121003703

$

$

Currently unavailable

52

Husqvarna 532182166

DECAL.INTERNATIONL.CUTFINGER
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 591344801

ADAPTER.BLADE.25M.22+FGD.2PIN

Note: For 96121003703

$10.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532431140

ADJUSTER.ASM.9POS.HW.R/R

Note: RH

$31.99

$

Usually ships in 3-10 days

0

Husqvarna 115964750

NEEDS DESCRIPTION

Note: For 96121003702

$

$

Currently unavailable

55

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

$7.49

$

In Stock, Qty 6

0

25

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, only 3 left!

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532422467

FOOTGUARD.REAR.22PLUS.BLK
(Superseded to 583394001)

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532178848

SCREW

Note: For 96121002700, 96121002701

$7.49

$

In Stock, Qty 20+

0

84

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

51

Husqvarna 532430599

BAFFLE.FRONT.22.PLUS

$

$

Not available

Husqvarna 532182191

DECAL.INTERN.4.SYMBOL.CURVED

Note: NOT SHOWN

$

$

Not available

Husqvarna 115964710

NEEDS DESCRIPTION

Note: For 96121003702

$

$

Currently unavailable

31

Husqvarna 532701037

SELECTOR KNOB

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532419927

DOOR.MULCH.22 PLUS.HUSQ.GREY
(Superseded to 532432642)

Note: For all EXCEPT 96121003702, 96121003703

$10.99

$

In Stock, Qty 11

0

64

000000000

Note: For 96121003700, 96121003701, 96121003702, B&S ENGINE, 103M02-0027-H1

$

$

Not available

28

Husqvarna 586212501

BOLT.CARRIAGE.LN.5/16-18X.5/8

Note: For all EXCEPT 96121002700

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

53

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

Husqvarna 114062220

NEEDS DESCRIPTION

Note: For 96121003703

$

$

Currently unavailable

43

Husqvarna 532191730

NUT.HEX.FLANGE.1/4

Note: For 96121002700, 96121002701

$7.49

$

In Stock, Qty 6

0

40

Husqvarna 585900803

BRACKET.ASM.HANDLE.RT.22+.GREY

Note: For all EXCEPT 96121002700, RH

$

$

Not available

45

Husqvarna 532175650

ROD.HINGE.21

Note: For 96121002700, 96121002701, 96121003700, 96121003701

$7.49

$

In Stock, Qty 20+

0

39

Husqvarna 581353702

BRACKET.ASM.HNDL.LT.22+.GREY

Note: For 96121002700, LH

$

$

Not available

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

Husqvarna 114062250

NEEDS DESCRIPTION

Note: For 96121003703

$

$

Currently unavailable

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

Husqvarna 115964753

NEEDS DESCRIPTION

Note: For 96121003702

$

$

Currently unavailable

17

Husqvarna 532427307

BAFFLE.22PLUS.FGD.REAR.

$15.99

$

Usually ships in 3-10 days

0
