LC-407 (18A-407-190) - White Outdoor Lawn Boss 19" Walk-Behind Mower, Electric (1997) Cord And Switch Assembly Parts Diagram

Lawn Boss 19" Walk-Behind Mower, Electric

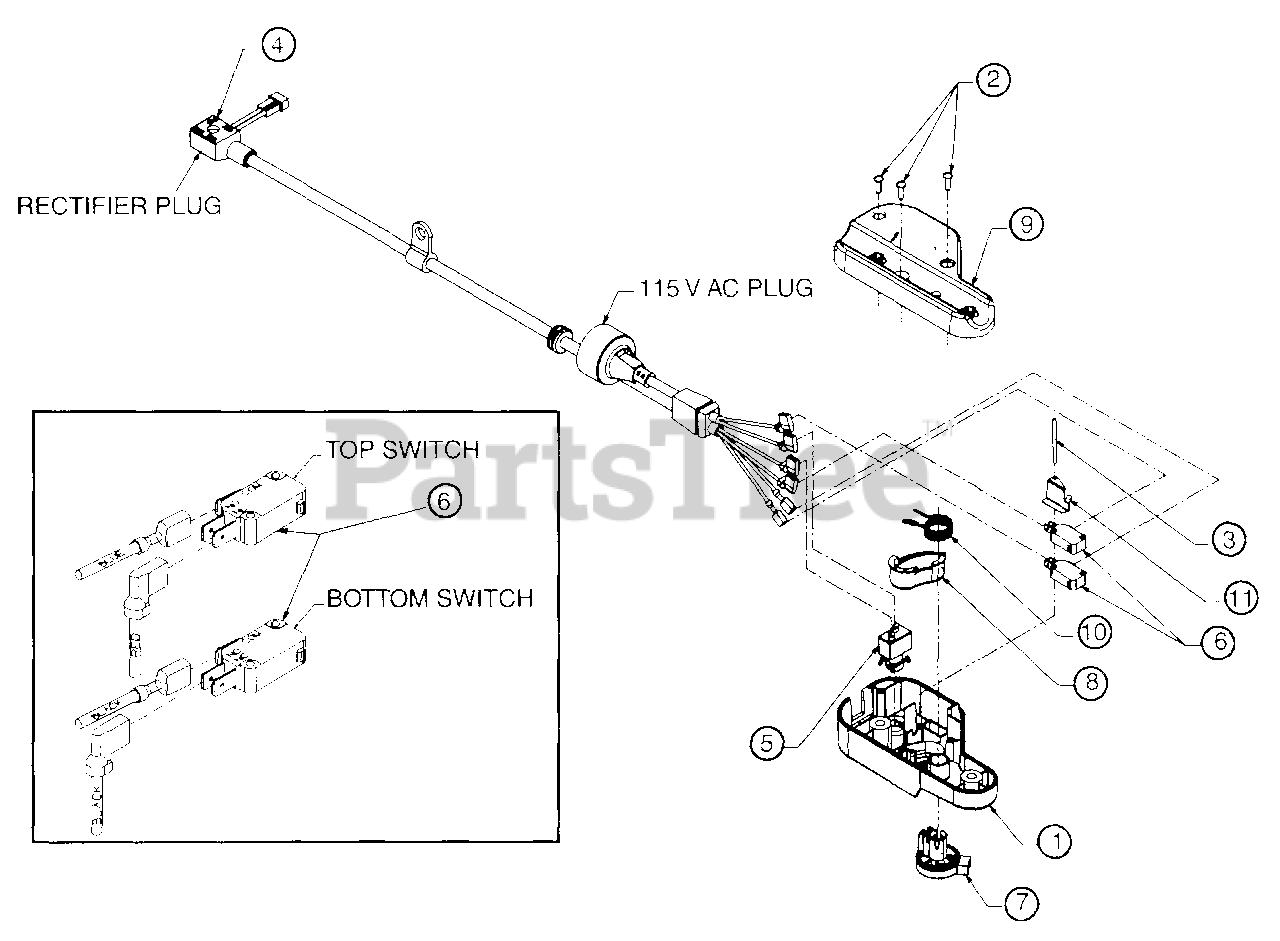

Cord And Switch Assembly Parts Diagram

  • Title

White Outdoor 625-0018B

Cord and Switch Assembly

$

$

Not available

1

631-0061

Switch Hsg. Ass'y. (L.H.)

$

$

Not available

2

White Outdoor 710-1271

Drive Screw #8 x 1/2 Lg.

$3.49

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

4

White Outdoor 724-1246

Cord, 115V volt w/plug

$

$

Not available

5

White Outdoor 725-1712

Circuit Breaker 120 volt 15 amp.
(Superseded to 925-1712)

$39.99

$

Usually ships in 3-6 days

0

6

White Outdoor 725-1719

Switch, Micro 20 amp.
(Superseded to 925-1719)

$28.99

$

Usually ships in 3-6 days

0

7

White Outdoor 731-1571A

Clip, Bail Lock

$7.49

$

Usually ships in 3-6 days

0

8

White Outdoor 731-1572

Button, Bail Lock

$5.99

$

Usually ships in 3-6 days

0

9

731-1848

Switch Housing (R.H.)

$

$

Not available

10

White Outdoor 732-0741

Torsion Spring
(Superseded to 732-0741A)

$5.99

$

Usually ships in 3-6 days

0

11

White Outdoor 782-9053

Actuator Arm

$

$

Not available
