LE 3190E (84561) - Snapper 19" Snow Thrower, 3hp ACCESSORIES- ELECTRIC START KIT Parts Diagram
19" Snow Thrower, 3hp

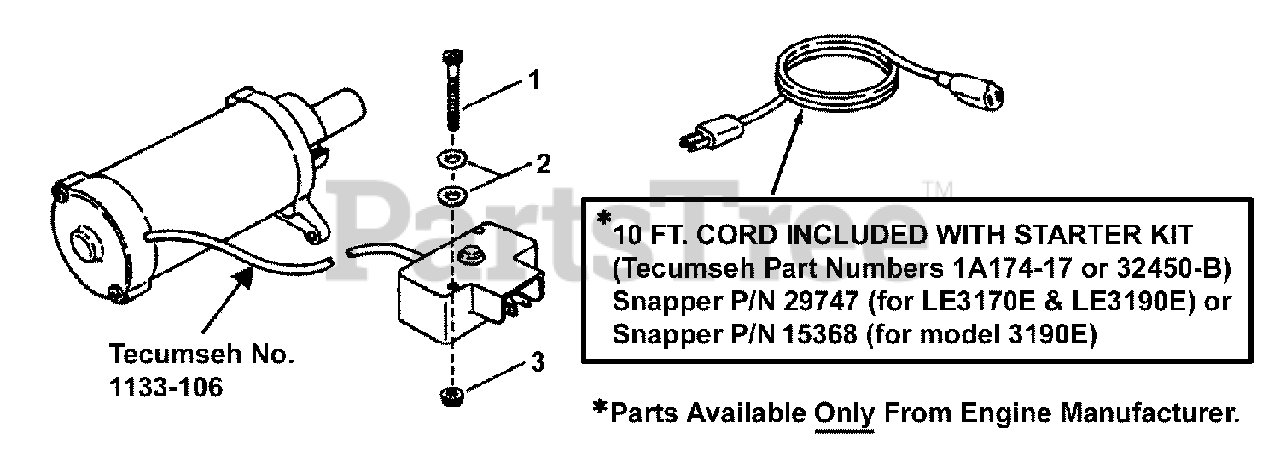

ACCESSORIES- ELECTRIC START KIT Parts Diagram
Snapper 7063186
BAG, Hardware (Incl. items 1 thru 6)
$
$
Currently unavailable
Snapper 7090206
SCREW, 5/16-18 x 3/4" Hex Head Cap GR5
(Superseded to 195079GS)
Note: discharge chute, item 3
$23.99
$
Usually ships in 2-12 days
Snapper 7090978
BOLT, 5/16-18 x 1-1/4" Sq. Neck Carriage GR5
(Superseded to 703446)
Note: handles, item 11
$4.49
$
Usually ships in 2-12 days
Snapper 7091070
NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)
Note: discharge chute, item 11
$5.49
$
In Stock, Qty 20+
Snapper 7092077
SCREW, #8-32 x 1/2" Pan Head Cross Recess
(Superseded to 7092077SM)
Note: discharge chute, item 16
$2.99
$
Usually ships in 2-12 days
Snapper 7091097
BOLT, 5/16-18 x 3/4" Sq. Neck Carriage GR5
(Superseded to 703225)
Note: discharge chute, item 12
$3.99
$
In Stock, Qty 20+
Snapper 7092078
NUT, #8-32 Hex w/External Tooth Washer
(Superseded to 7092078SM)
Note: discharge chute, item 17
$2.99
$
Usually ships in 2-12 days
