LGT-160 (139-756-190) - White Outdoor 46" Lawn Tractor (1989) Body Assembly Parts Diagram

46" Lawn Tractor

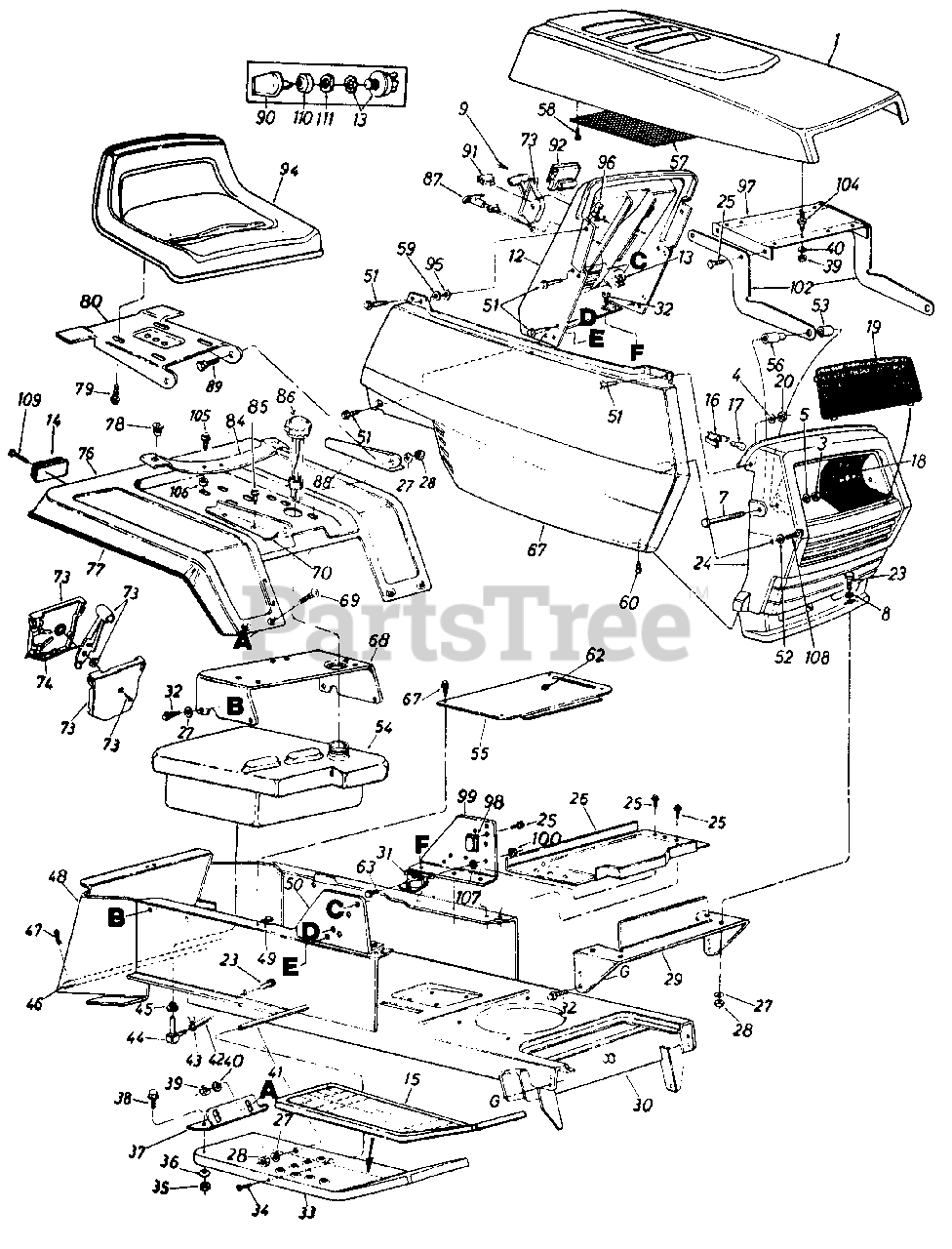

Body Assembly Parts Diagram

  • Title

1

White Outdoor 17442

Hood Ass'y. w/Foam

Variations

White Outdoor 17442-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17442-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17442-0662

HOOD OYSTER GRAY - OYSTER GRAY (0662)

$

$

Not available

$

$

3

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 19

0

4

White Outdoor 736-0142

Flat Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, only 3 left!

0

5

White Outdoor 736-0278

Fl-Wash. 5/16" I.D. x 518" O.D.

$5.99

$

Usually ships in 3-6 days

0

7

White Outdoor 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.

$4.99

$

In Stock, only 3 left!

0

8

White Outdoor 736-0159

Fl-Wash..344" I.D.

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

12

White Outdoor 731-0957

Dash Ass'y.

$

$

Not available

13

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 13

0

14

White Outdoor 725-1128

Taillight

$

$

Not available

15

White Outdoor 731-1052

Foot Pad

$

$

Not available

16

White Outdoor 725-1058

Socket
(Superseded to 925-1058A)

$10.99

$

In Stock, Qty 5

0

17

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 20+

0

18

777-8516

Reflector Label

$

$

Not available

19

White Outdoor 731-1038

Lens
(Superseded to 931-1038A)

$

$

Not available

20

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 9

0

23

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

731-1037

Grille

$

$

Not available

25

White Outdoor 710-0599

Hex Wash. Hd. Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 13379

Battery Plate

$

$

Not available

27

White Outdoor 736-0119

L-Wash. 5116" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

29

White Outdoor 15825

Grille Mounting Bracket

$

$

Not available

30

White Outdoor 13820C

Lower Frame Ass'y.

$

$

Not available

31

White Outdoor 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 4 left!

0

32

White Outdoor 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75 " Lg.

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 16390A

Running Board-R.H.

$

$

Not available

White Outdoor 13827D

Running Board-L.H.

Note: (Not Shown)

$

$

Not available

34

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg."

$4.99

$

In Stock, only 2 left!

0

35

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

36

White Outdoor 736-0242

Bell-Wash. .34" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 15846

Fender Brkt.-R.H.

Variations

White Outdoor 15846-0637

BRACKET-FENDER-RH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15847

Fender Brkt.-L.H.

Note: (Not Shown)

Variations

White Outdoor 15847-0637

No Longer Available BRACKET-FENDER-LH - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 2 left!

0

40

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

41

White Outdoor 738-0435

Running Board Rod

$

$

Not available

42

751-0173A

Fuel Line 40" Lg.

$

$

Not available

43

White Outdoor 726-0207

Hose Clamp 318"

$

$

Not available

44

751-3054

90ø Nipple

$

$

Not available

45

White Outdoor 735-0149

Bushing
(Superseded to 935-0149)

Note: (Fuel Tank)

$2.99

$

In Stock, Qty 20+

0

46

White Outdoor 738-0482

Hitch Rod

$

$

Not available

47

White Outdoor 714-0147

Internal Cotterpin

$4.99

$

In Stock, Qty 13

0

48

White Outdoor 13813B

Hitch Plate

Variations

White Outdoor 13813B-0637

No Longer Available PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

$

$

49

White Outdoor 726-0139

Speed Nut

$6.99

$

In Stock, only 3 left!

0

50

White Outdoor 17293

Dash Support Brkt.-R.H.
(Superseded to 17293B-0637)

$

$

Not available

51

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

52

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 10

0

53

White Outdoor 750-0755

Spacer.33" I.D. x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

54

White Outdoor 751-0367

Fuel Tank

$

$

Not available

55

17150

Transmission Cover Ass'y.

$

$

Not available

56

White Outdoor 750-0754

Shld. Spacer .33" I.D. x .625" O.D.

$

$

Not available

57

White Outdoor 723-0416

Screen

$

$

Not available

58

White Outdoor 710-0200

Hex Wash. Hd. Tap Scr. #8 x .5" Lg.

$

$

Not available

59

White Outdoor 736-0176

Fl-Wash. .25" I.D. x .93" O.D.

$4.99

$

In Stock, Qty 20+

0

60

White Outdoor 710-0224

Hex AB-Tap Scr. #10 x .5" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, only 1 left!

0

62

White Outdoor 731-0405

Snap Bushing

$

$

Not available

63

White Outdoor 710-0289

Hex Bolt 1/4-20 x .5 Lg.
(Superseded to 910-0289)

$3.99

$

Usually ships in 3-6 days

0

White Outdoor 17448

Side Panel Ass'y.-R.H.

$

$

Not available

White Outdoor 17447

Side Panel Ass'y.-L.H.

$

$

Not available

67

White Outdoor 710-0351

Truss Mach. "B" Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 3 left!

0

68

White Outdoor 15849

Seat Mounting Channel

$

$

Not available

69

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

White Outdoor 15802

Seat Bracket-R.H.

$

$

Not available

73

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

74

White Outdoor 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

In Stock, Qty 9

0

76

16448A

Rear Fender

$

$

Not available

77

White Outdoor 731-0511-81

Trim Strip-81" Lg.

$105.99

$

Usually ships in 3-6 days

0

78

White Outdoor 731-0555A

Grommet

$

$

Not available

79

White Outdoor 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

$4.49

$

In Stock, Qty 6

0

80

White Outdoor 15607D

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

84

732-0431

Seat Spring

$

$

Not available

85

White Outdoor 710-0607

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$6.99

$

In Stock, Qty 20+

0

86

White Outdoor 751-0370

Gas Cap w/Gauge

$

$

Not available

87

White Outdoor 746-3022B

Choke Control Comp.
(Superseded to 946-3022B)

$39.99

$

In Stock, only 4 left!

0

88

White Outdoor 15803

Seat Bracket-L.H.

$

$

Not available

89

White Outdoor 738-0155

Shld. Bolt .437" Dia. x .162"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

90

White Outdoor 725-1341A

Ignition Key
(Superseded to 725-1341B)

$10.99

$

In Stock, only 2 left!

0

91

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, Qty 5

0

92

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, only 1 left!

0

94

757-0332

Seat Ass'y.

$

$

Not available

95

White Outdoor 726-0233

Bolt Retainer

$4.49

$

In Stock, only 3 left!

0

96

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

97

White Outdoor 16903

Hood Plate
(Superseded to 16903A-0637)

$

$

Not available

98

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

99

White Outdoor 17294

Dash Support Brkt.-L.H.

$

$

Not available

100

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 18

0

102

White Outdoor 16902

Hood Hinge

$

$

Not available

104

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

105

White Outdoor 710-0817

Hex Tap Scr. 5/16-18 x 1.25" Lg.

$6.99

$

In Stock, Qty 20+

0

106

White Outdoor 750-0706

Spacer.38" I.D.
(Superseded to 950-0706)

$

$

Not available

107

White Outdoor 736-0222

Ext. L-Wash. .44" I.D.

$5.99

$

In Stock, only 3 left!

0

108

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4 x.62" Lg.

$4.49

$

In Stock, Qty 20+

0

109

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg .

$4.49

$

Usually ships in 3-6 days

0

110

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 4 left!

0

111

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available
