LGT-310 (135-782-190) - White Outdoor Lawn Tractor (1985) Hydrostatic Transmission Parts Diagram

Lawn Tractor

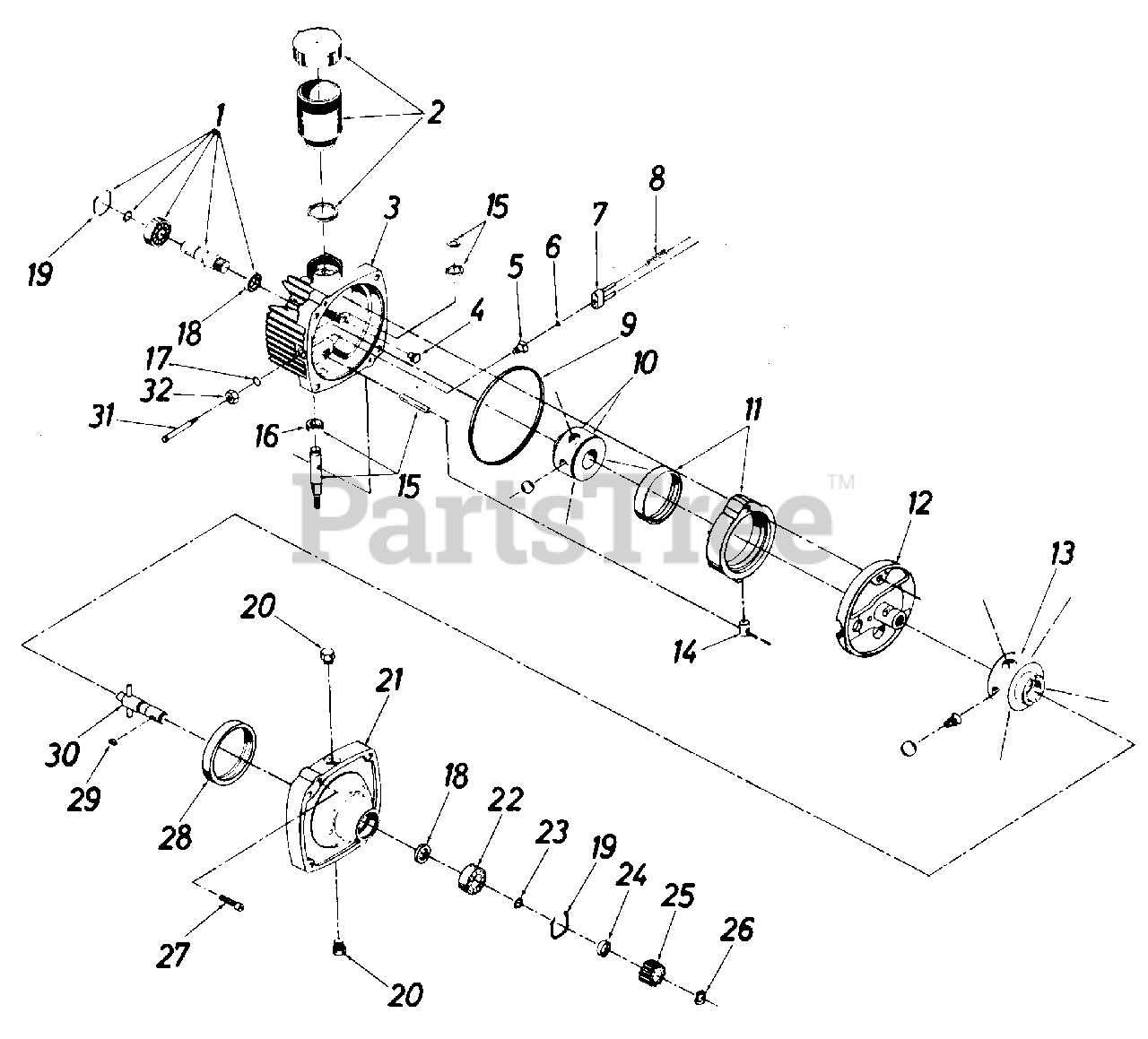

Hydrostatic Transmission Parts Diagram

  • Title
1

MTD ET-990067-000

Kit Input Shaft

Note: NLA

$

$

Not available

2

MTD ET-990077-000

Kit Reservoir

Note: NLA

$

$

Not available

3

MTD ET-990176-000

Kit Cover

Note: NLA

$

$

Currently unavailable

4

MTD ET-101597-000

Button

Note: NLA

$

$

Currently unavailable

5

MTD ET-024234-000

O-Ring Fitting Guide Subassembly

Note: NLA

$

$

Not available

6

MTD ET-008761-010

O-Ring

Note: NLA

$

$

Not available

7

MTD ET-024166-000

Bracket Pins Sub-assembly

Note: NLA

$

$

Currently unavailable

8

MTD ET-072149-000

Valve Spring

Note: NLA

$

$

Currently unavailable

9

MTD ET-008771-162

Square Cut Seal Ring

Note: NLA

$

$

Not available

10

MTD ET-022712-000

Pump Rotor Ball Sub-assembly

Note: NLA

$

$

Not available

11

MTD ET-102449-000

Cam Ring Subassembly

Note: NLA

$

$

Currently unavailable

12

MTD ET-102532-000

Pintle Subassembly

Note: NLA

$

$

Not available

13

MTD ET-104111-000

Motor Rotor Ball Sub-assembly

$

$

Not available

14

MTD ET-095203-000

Cam Ring Insert

Note: NLA

$

$

Currently unavailable

15

MTD ET-990083-000

Kit Control Shaft

Note: NLA

$

$

Not available

16

$

$

Not available

17

MTD ET-008761-013

O-Ring.013

Note: NLA

$

$

Not available

18

MTD ET-093955-000

Oil Seal

Note: NLA

$

$

Not available

19

MTD ET-091231-000

Retaining Ring

Note: NLA

$

$

Currently unavailable

20

MTD ET-025090-006

O-Ring Plug Sub-assembly

Note: NLA

$

$

Not available

21

MTD ET-032278-000

Body

Note: NLA

$

$

Currently unavailable

22

MTD ET-090797-000

Ball Bearing (Output)

$

$

Not available

23

MTD ET-097121-000

Snap Ring

Note: NLA

$

$

Not available

24

MTD ET-095202-000

Spacer

Note: NLA

$

$

Currently unavailable

25

MTD ET-040511-000

Drive Gear (12 Teeth)

Note: NLA

$

$

Not available

26

MTD ET-096098-066

External Retaining Ring

Note: NLA

$

$

Not available

27

MTD ET-095912-125

Socket Hd. Scr. 5/16-18 x 1.25" Lg.

Note: NLA

$

$

Currently unavailable

28

MTD ET-040519-000

Motor Race

Note: NLA

$

$

Not available

29

MTD ET-009476-000

Woodruff Key #3

Note: NLA

$

$

Not available

30

MTD ET-022892-000

Output Shaft Subassembly

Note: NLA

$

$

Not available

31

MTD ET-062240-000

Dump Valve Shaft

Note: NLA

$

$

Not available

32

MTD ET-024235-000

Nut Gasket Subassembly

Note: NLA

$

$

Not available
