Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Combination Rear Light and Tail Light - Sealed Beam Parts Diagram

Cub Lo-Boy Tractor

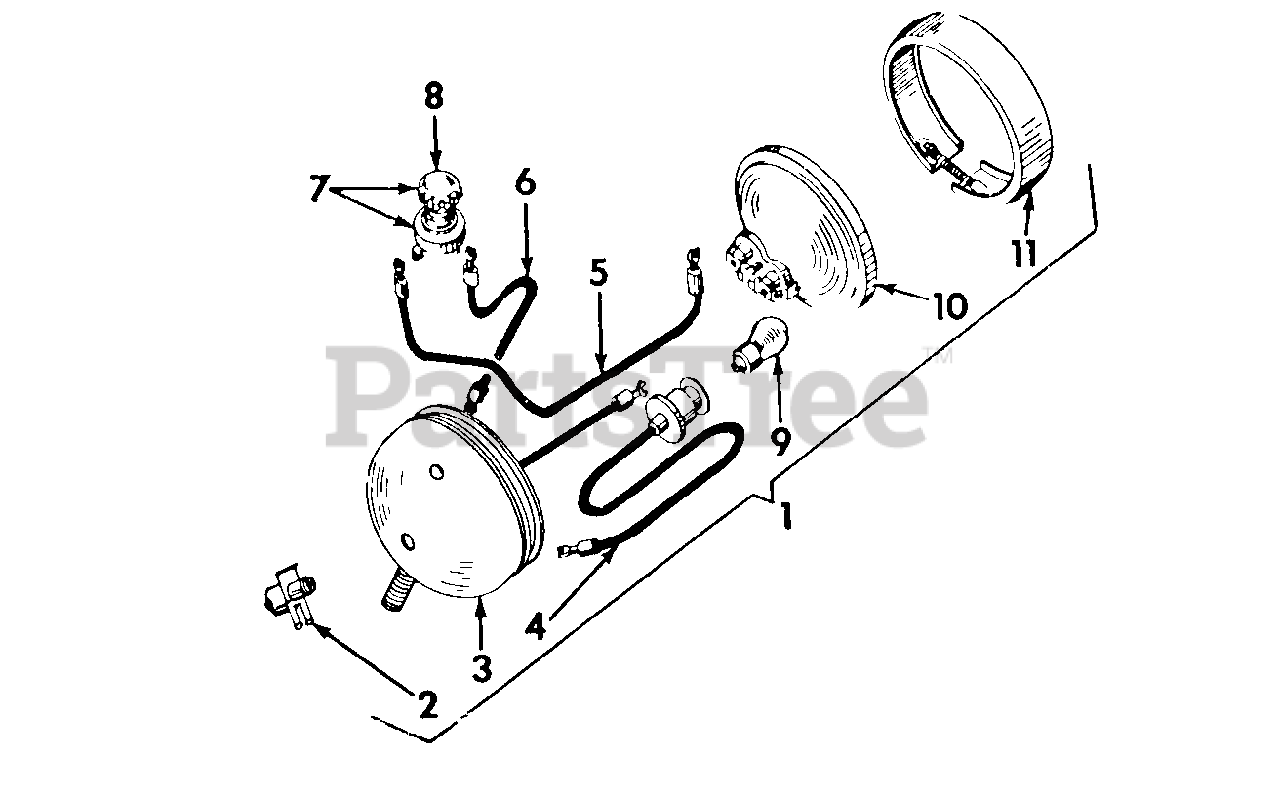

Combination Rear Light and Tail Light - Sealed Beam Parts Diagram

  • Title

1

Cub Cadet IH-373304-R91

LIGHT ASSY COMBINATION REAR AND TAIL - 6 VOLT

$

$

Currently unavailable

2

Cub Cadet IH-68417D

PACKAGE, TERMINAL PLATE ASSY

$

$

Currently unavailable

3

BODY, LIGHT

Note: (NOT SERVICED SEPARATELY, ORDER LIGHT ASSY)

$

$

Not available

4

Cub Cadet IH-373310-R91

SOCKET AND WIRE, SWITCH TO RED LIGHT

$

$

Currently unavailable

5

Cub Cadet IH-373311-R91

WIRE, SWITCH TO SEALED BEAM UNIT

$

$

Currently unavailable

6

Cub Cadet IH-373311-R91

WIRE, SWITCH TO CONNECTOR

$

$

Currently unavailable

7

Cub Cadet IH-375653-R92

SWITCH ASSY, LIGHT

$

$

Currently unavailable

8

KNOB LIGHT SWITCH

Note: (SERVICED ONLY AS PART OF SWITCH, IH-375653-R92)

$

$

Not available

9

Cub Cadet IH-454493

LAMP NO 209 - 6 VOLT

$

$

Currently unavailable

10

Cub Cadet IH-371458-R91

UNIT, SEALED BEAM

$

$

Currently unavailable

11

Cub Cadet IH-371450-R91

MOULDING ASSY.

$

$

Currently unavailable

Cub Cadet IH-365697-R1

NUT, MOULDING SCREW

$

$

Currently unavailable

Cub Cadet IH-132489

SCREW, 8-32 X 1-1/4 NI-BRIGHT BRASS SLT-FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-121841

WASHER, NO. 8 ZND MED LOCK

$

$

Not available

Cub Cadet IH-375376-R1

GASKET, SEALED BEAM UNIT

Note: (USED ONLY IF UNIT IS LOOSE IN LIGHT BODY; AS REQUIRED.)

$

$

Currently unavailable
