Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Hood and Fuel Tank, Support, Radiator, Grille and Connections Parts Diagram

Cub Lo-Boy Tractor

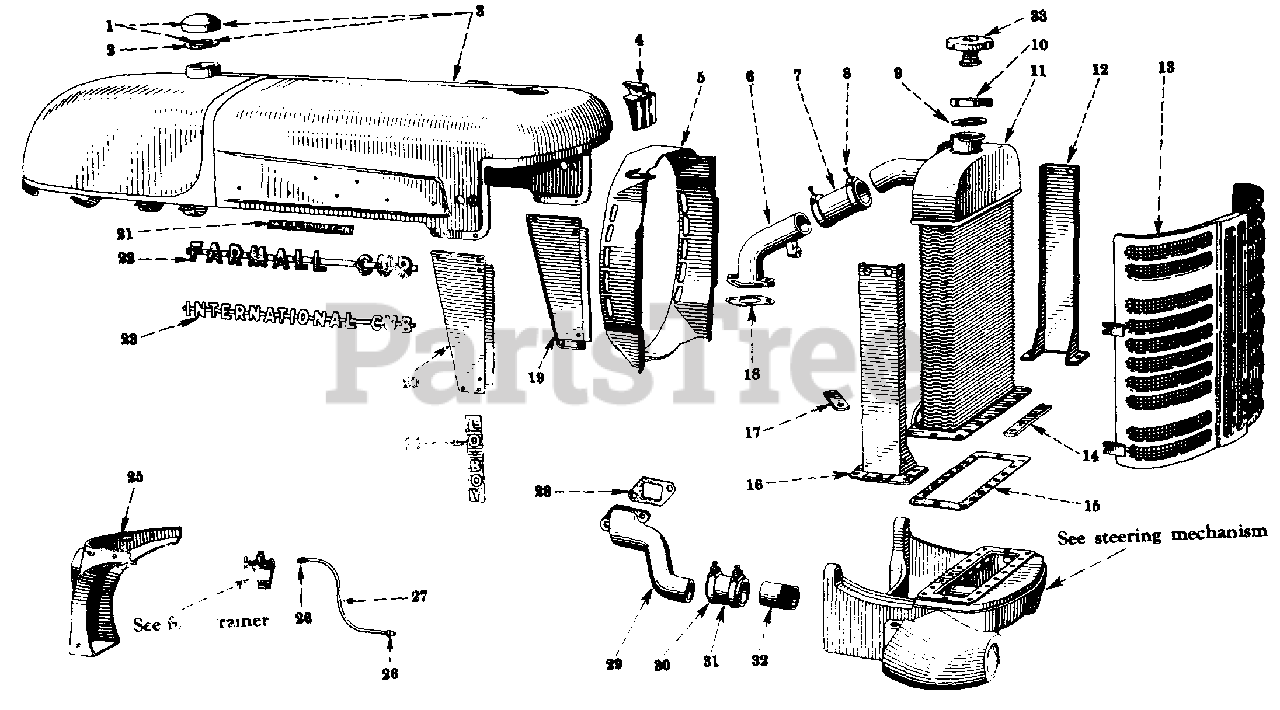

Hood and Fuel Tank, Support, Radiator, Grille and Connections Parts Diagram

  • Title

1

Cub Cadet IH-23995-DC

CAP ASSY FUEL TANK FILLER

$

$

Not available

2

Cub Cadet IH-23977-DB

GASKET, FUEL TANK FILLER CAP

$

$

Currently unavailable

3

Cub Cadet IH-368757-R91

HOOD AND FUEL TANK ASSY

Note: (TRACTORS WITH VERTICAL EXHAUST)

$

$

Currently unavailable

3

Cub Cadet IH-368704-R91

HOOD AND FUEL TANK ASSY

Note: (TRACTORS W/UNDERSLUNG EXHAUST)

$

$

Currently unavailable

Cub Cadet IH-179812

SCREW, 5/16-18 X 1/2 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

4

Cub Cadet IH-362687-R1

EMBLEM, IH HOOD

$

$

Currently unavailable

Cub Cadet IH-363284-R2

FASTENER TUBULAR CLIP

$

$

Currently unavailable

5

Cub Cadet IH-351037-R2

HOUSING FAN

$

$

Currently unavailable

Cub Cadet IH-171573

SCREW, 10-32 X 1/4 SLT-RD-HD MACH

$

$

Currently unavailable

6

Cub Cadet IH-251429-R1

ELBOW, WATER OUTLET

$

$

Currently unavailable

Cub Cadet IH-179838

SCREW, 3/8-16 X 7/8 HEX-HD CAP
(Superseded to 710-3001)

$6.99

$

In Stock, Qty 11

0

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

7

HOSE, 1-3/4 IN. ID X 4 IN. LONG, 1 PLY RADIATOR INLET

Note: (ORDER 4 IN. FROM BULK HOSE, IH-407006-R1)

$

$

Not available

Cub Cadet IH-407006-R1

BULK HOSE

$

$

Currently unavailable

8

Cub Cadet IH-274087-R91

CLAMP, RADIATOR HOSE

$

$

Currently unavailable

9

Cub Cadet IH-351031-R1

GASKET, RADIATOR FILLER CAP USED W/CAP, IH-351030-R91

$

$

Currently unavailable

10

Cub Cadet IH-351030-R91

CAP

Note: (W/GASKET, IH-351031-R1, RADIATOR FILLER; ORDER CAP, IH-400586-R1)

$

$

Currently unavailable

10

Cub Cadet IH-400586-R1

CAP, RADIATOR FILLER

Note: (REPLACES IH-351030-R91)

$

$

Not available

11

Cub Cadet IH-351878-R92

RADIATOR ASSY

Note: (REPLACES IH-352903-R92)

$

$

Not available

12

Cub Cadet IH-351477-R91

CHANNEL, RADIATOR SIDE LH

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179817

SCREW, 5/16-18 X 7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

13

Cub Cadet IH-362372-R11

GRILLE ASSY., RADIATOR

$

$

Not available

Cub Cadet IH-144531

SCREW, 1/4-20 X 1/2 SLT-TRUSS-HD MACH

$

$

Currently unavailable

14

Cub Cadet IH-351033-R1

PLATE, RADIATOR HOLD-DOWN

$

$

Currently unavailable

Cub Cadet IH-179817

SCREW, 5/16-18 X 7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

15

Cub Cadet IH-351032-R1

GASKET, RADIATOR
(Superseded to IH-351032-R2)

$

$

Not available

16

Cub Cadet IH-351478-R91

CHANNEL, RADIATOR SIDE RH

$

$

Currently unavailable

Cub Cadet IH-179816

SCREW, 5/16-18 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-179817

SCREW, 5/16-18 X 7/8 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-103320

WASHER, 5/16 MED LOCK

$

$

Currently unavailable

17

Cub Cadet IH-351036-R1

CLIP, RADIATOR OVERFLOW PIPE

$

$

Currently unavailable

18

Cub Cadet IH-4665D

GASKET, WATER OUTLET ELBOW

$

$

Not available

19

Cub Cadet IH-373883-R11

SIDE, RADIATOR GRILLE LH

Note: (WILL WORK FOR IH-350984-R11 AND IH-364032-R11)

$

$

Not available

Cub Cadet IH-120221

SCREW, 10-24 X 1/2 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO. 10 MED LOCK

$

$

Currently unavailable

20

Cub Cadet IH-373884-R11

SIDE, RADIATOR GRILLE RH

Note: (WILL WORK FOR IH-350985-R11 AND IH-364033-R11)

$

$

Currently unavailable

Cub Cadet IH-120221

SCREW, 10-24 X 1/2 C-Z SLT-RD-HD MACH

$

$

Currently unavailable

Cub Cadet IH-106497

WASHER, NO. 10 MED LOCK

$

$

Currently unavailable

21

Cub Cadet IH-362389-R1

PLATE, MC CORMICK NAME

Note: (FARMALL CUB TRACTORS)

$

$

Currently unavailable

Cub Cadet IH-363784-R1

FASTENER TUBULAR CLIP

$

$

Currently unavailable

22

Cub Cadet IH-362386-R2

PLATE, FARMALL CUB NAME

$

$

Currently unavailable

Cub Cadet IH-363784-R1

FASTENER, TUBULAR CLIP

$

$

Currently unavailable

23

Cub Cadet IH-364044-R1

PLATE, INTERNATIONAL CUB NAME

$

$

Currently unavailable

Cub Cadet IH-363784-R1

FASTENER, TUBULAR CLIP

$

$

Currently unavailable

24

Cub Cadet IH-364045-R1

PLATE, LO-BOY NAME

Note: (CUB LO-BOY TRACTORS ONLY)

$

$

Currently unavailable

Cub Cadet IH-363784-R1

FASTENER, TUBULAR CLIP

$

$

Currently unavailable

25

Cub Cadet IH-364912-R92

PACKAGE, HOOD AND FUEL TANK SUPPORT SERVICE

Note: (WILL WORK FOR IH-351508-R3)

$

$

Currently unavailable

Cub Cadet IH-109084

NUT, 1/4-20 HEX

$

$

Currently unavailable

Cub Cadet IH-179835

SCREW, 3/8-16 X 5/8 HEX HD CAP
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

Cub Cadet IH-20710-R1

SCREW, 1/4 X 1/2 ZNP P/HDS MACH

$

$

Not available

Cub Cadet IH-103319

WASHER, 1/4 MED LOCK

$

$

Currently unavailable

Cub Cadet IH-103321

WASHER, 3/8 MED LOCK

$

$

Currently unavailable

26

Cub Cadet IH-29899D

NUT, 1/2-20 HI-DUTY TUBE FITTING FUEL PIPE COUPLING

$

$

Not available

27

Cub Cadet IH-369992-R11

PIPE, FUEL

Note: (W/TWO NUTS, IH-29899D; WILL WORK FOR IH-362358-R11)

$

$

Currently unavailable

28

Cub Cadet IH-251431-R1

GASKET, WATER INLET ELBOW

$

$

Currently unavailable

29

Cub Cadet IH-251430-R2

ELBOW, WATER

$

$

Currently unavailable

Cub Cadet IH-179838

SCREW, 3/8-16 X 7/8 HEX-HD CAP
(Superseded to 710-3001)

$6.99

$

In Stock, Qty 11

0

Cub Cadet IH-103321

WASHER 3/8 MED LOCK

$

$

Currently unavailable

30

Cub Cadet IH-274087-R91

CLAMP, RADIATOR HOSE

$

$

Currently unavailable

31

HOSE, 1-5/8 ID X 2-3/8 IN. LONG, 1 PLY RADIATOR OUTLET

Note: (ORDER 2-3/8 IN. FROM BULK HOSE, IH-407005-R1)

$

$

Not available

Cub Cadet IH-407005-R1

BULK HOSE

$

$

Not available

32

Cub Cadet IH-350888-R1

NIPPLE, RADIATOR OUTLET

$

$

Currently unavailable

33

Cub Cadet IH-365892-R91

CAP, RADIATOR PRESSURE TYPE SPECIAL

$

$

Currently unavailable

33

Cub Cadet IH-80889-R91

CAP, RADIATOR PRESSURE TYPE

Note: (FOR USE WITH RADIATOR, IH-352903-R92)

$

$

Not available
