Lo-Boy - International Harvester Cub Lo-Boy Tractor (SN: 00501 - 10000) Lift Link & Helper Spring Connections Parts Diagram

Cub Lo-Boy Tractor

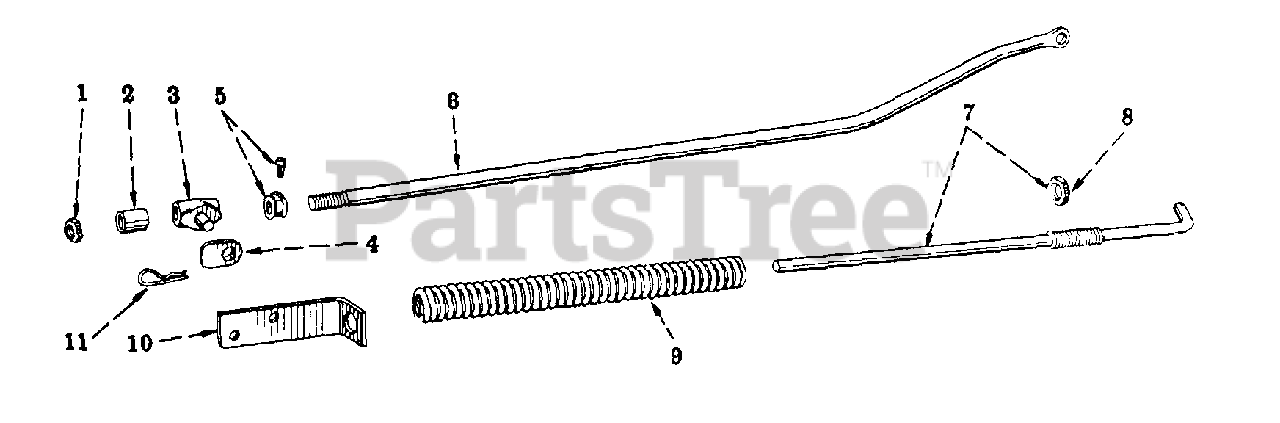

Lift Link & Helper Spring Connections Parts Diagram

  • Title

Cub Cadet IH-364121-R91

ATTACHMENT, FAST-HITCH

Note: FOR TRACTORS EQUIPPED WITH TOUCH CONTROL SYSTEM- -COMPOSED OF THE FOLLOWING 10 PARTS

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

Cub Cadet IH-521042-R91

FAST-HITCH UNIT

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

1

Cub Cadet IH-218444

NUT, 7/8-9 HEX. JAM

$

$

Currently unavailable

2

Cub Cadet IH-521425-R1

BUSHING, LIFT LINK

$

$

Currently unavailable

3

Cub Cadet IH-521401-R1

TRUNNION, LIFT LINK

$

$

Currently unavailable

4

Cub Cadet IH-520122-R1

BUSHING, TRUNNION

$

$

Currently unavailable

5

Cub Cadet IH-PO2041X

COLLAR W/SCREW, IH-110447, SET

$

$

Currently unavailable

Cub Cadet IH-110447

SCREW, 1/2-13 X 5/8 SQ-HD CUP-PT SET

$

$

Currently unavailable

6

Cub Cadet IH-521409-R11

LINK W/NUT, IH-218444, LIFT

$

$

Currently unavailable

Cub Cadet IH-13094-R1

PIN, 3/16 X 1-1/4 SELF-OPENING COT.

$

$

Currently unavailable

7

Cub Cadet IH-520163-R91

ROD W/NUT, IH-218446, HELPER SPRING

$

$

Currently unavailable

Cub Cadet IH-13094-R1

PIN, 3/16 X 1-1/4 SELF-OPENING COT

$

$

Currently unavailable

Cub Cadet IH-Q3501

WASHER, 25/32 X 1-1/4 X 16 GA

$

$

Currently unavailable

8

Cub Cadet IH-218446

NUT, 1-1/8-7 HEX. JAM

$

$

Currently unavailable

9

Cub Cadet IH-520160-R1

SPRING, HELPER

$

$

Currently unavailable

10

Cub Cadet IH-521415-R1

GUIDE, HELPER SPRING ROD

$

$

Currently unavailable

Cub Cadet IH-17578-R1

BOLT, 5/8-11 X 2-1/2 HEX-HD MACH

$

$

Currently unavailable

11

Cub Cadet IH-520175-R1

PIN, 3/16 QUICK-ATTACHABLE COT

$

$

Not available
