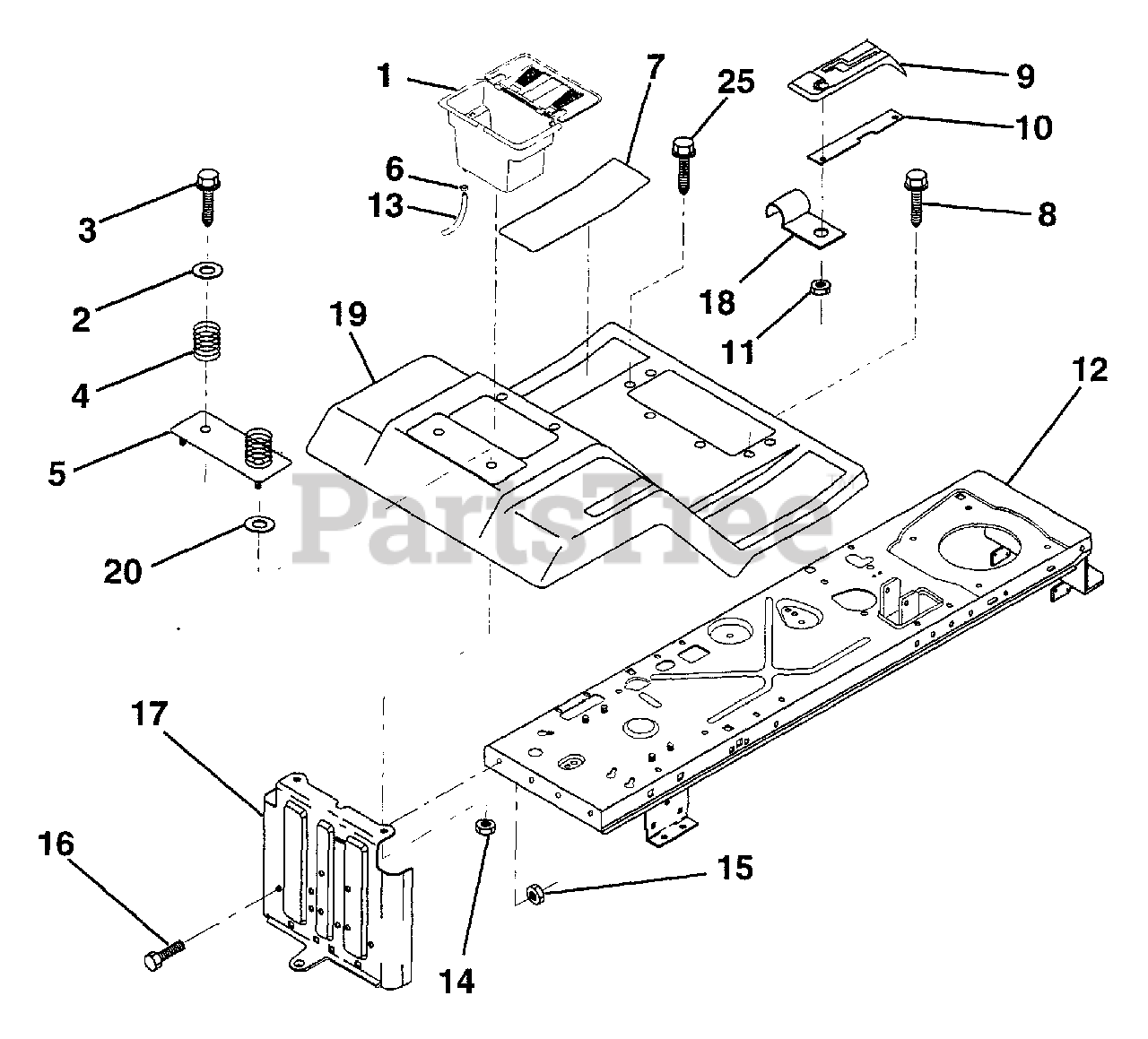

LR 12 (954000752-A) - Husqvarna Lawn Tractor (1994-05) Fender/Chassis Parts Diagram

Lawn Tractor

Fender/Chassis Parts Diagram

  • Title

1

Husqvarna 532129965

Case, Battery
(Superseded to 532404349)

$

$

Not available

2

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 817490612

Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 532124181

Spring, Compression, Seat
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

5

Husqvarna 532125142

Plate, Asm. Battery
(Superseded to 532127115)

$

$

Not available

6

Husqvarna 532109596

Clamp, Hose

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124144

Pad, Footrest

$

$

Not available

8

Husqvarna 817490512

Screw, Hex Wsh. Thrdrol. 5/16-18 x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532126993

Console, Shift Control

$

$

Not available

10

Husqvarna 532124307

Bar, Shift Lock

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532124346

Nut, Self-Thrd., Wsh. Head 3/16

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 532139893

Assembly, Frame

$

$

Not available

13

Husqvarna 532109238

Tube, Battery Drain

$

$

Not available

14

Husqvarna 873510400

Nut, Keps Hex 1/4-20 UNC
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874760512

Bolt, Hex Hd. 5/16-18 UNC x 3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532127880

Drawbar

$

$

Not available

18

Husqvarna 532126470

Clip, Insulated

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532125141

Fender/Footrest
(Superseded to 532141393)

$

$

Not available

20

Husqvarna 819091413

Washer 9/32 x 7/8 x 13 Ga.
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 817490516

Screw Hex Washer Thd. Roll 5/16-18 x 1
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0
