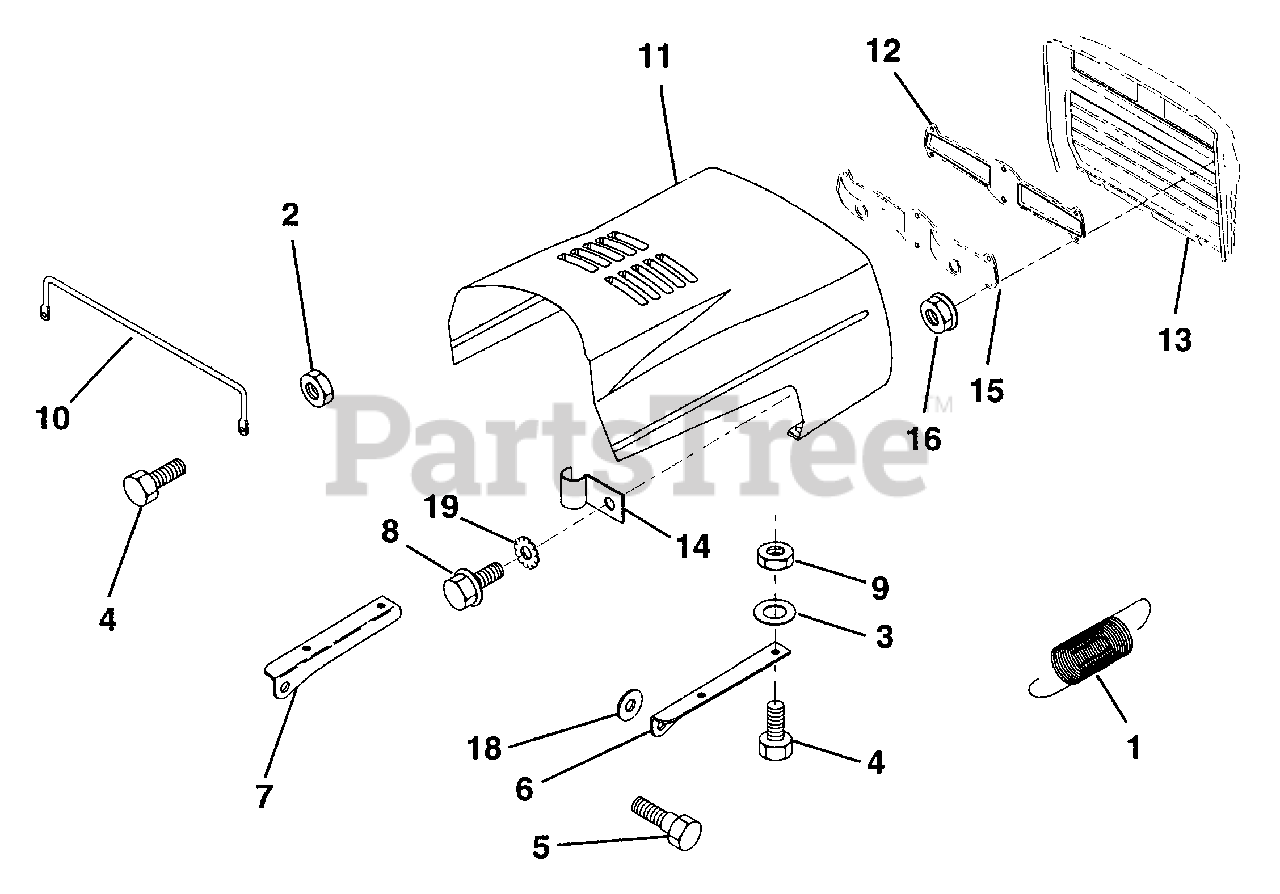

LR 12 (954000752-A) - Husqvarna Lawn Tractor (1994-05) Hood Parts Diagram

Lawn Tractor

Hood Parts Diagram

  • Title

1

Husqvarna 532124657

Extension, Spring

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 873510400

Nut, Hex, Keps 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 819091416

Washer, 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 874780412

Bolt, Hex Fin 1/4-20 x 3/4 Gr. 5
(Superseded to 874780414)

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532126675

Bolt, Shoulder
(Superseded to 532139888)

$6.49

$

In Stock, Qty 9

0

6

Husqvarna 532122549

Bracket, Hood R. H.

$

$

Not available

7

Husqvarna 532122548

Bracket, Hood L.H.

$2.99

$

Usually ships in 3-10 days

0

8

Husqvarna 817521310

Screw Sltd. Hex Hd W/PL Washer

$0.99

$

Usually ships in 3-10 days

0

9

Husqvarna 873800400

Nut Lock W/Insert 1/4-20 UNC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532123693

Brace, Hood

$

$

Not available

11

Husqvarna 532140463

Hood
(Superseded to 532132918)

$

$

Not available

12

Husqvarna 532127178

Lens Clear Bar Dual LR P/L

$

$

Not available

13

Husqvarna 532140464

Grill

$

$

Not available

14

Husqvarna 532124996

Clip Line Fuel
(Superseded to 532002751)

$

$

Not available

15

Husqvarna 532127177

Lightbox (Bezel)

$

$

Not available

16

Husqvarna 532124346

Nut Self-Thd. Wsh-Hd 1/4

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 811030400

Washer Lock 1/4 Int/Ext Tooth
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0
