LR 120 (954000412-B) - Husqvarna Lawn Tractor (1992-10) Engine / Throttle Parts Diagram

Lawn Tractor

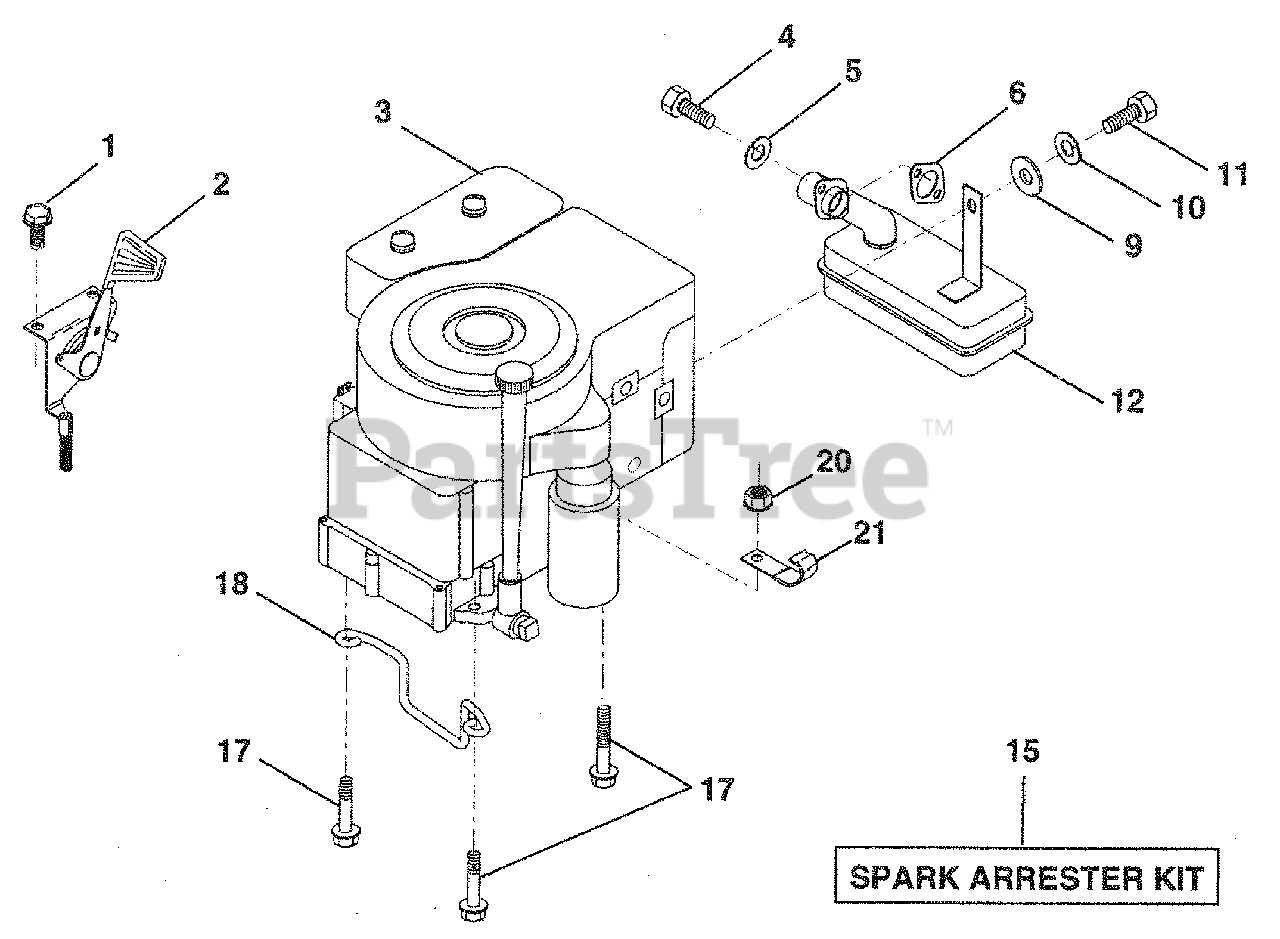

Engine / Throttle Parts Diagram

  • Title

1

Husqvarna 817720408

Screw, Hex Thd. Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532132752

Control, Throttle

$24.99

$

Usually ships in 3-10 days

0

3

Engine, Briggs and Stratton Model No.282707

$

$

Not available

4

Husqvarna 871070512

Screw, Hex, Cap 5/16-18 x 3/4
(Superseded to 532192334)

$

$

Not available

5

Husqvarna 810040500

Washer, Lock Heavy Helical Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

6

Husqvarna 532125593

Gasket, Exhaust
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 819101216

Washer 5/16 x 3/4 x 16
(Superseded to 734115441)

$4.99

$

In Stock, Qty 12

0

10

Husqvarna 810040400

Washer, Lock Heavy Hlcl Sprg 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 374760412

Bolt, Hex Fin. 1/4-20 UNC x 3/4

$

$

Currently unavailable

12

Husqvarna 532137437

Muffler

$242.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional Equipment)

$182.99

$

In Stock, only 1 left!

0

17

Husqvarna 317490624

Screw, Hex Washer Head, Thdrol. 3/8-16 x 1-1/2

$

$

Currently unavailable

18

Husqvarna 332126636

Keeper, Ground Drive Beit

$

$

Currently unavailable

20

Husqvarna 373510600

Nut, Keps 3/8 - 16

$

$

Currently unavailable

21

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available
