LR 120 (954000412-B) - Husqvarna Lawn Tractor (1992-10) Transxle Parts Diagram

Lawn Tractor

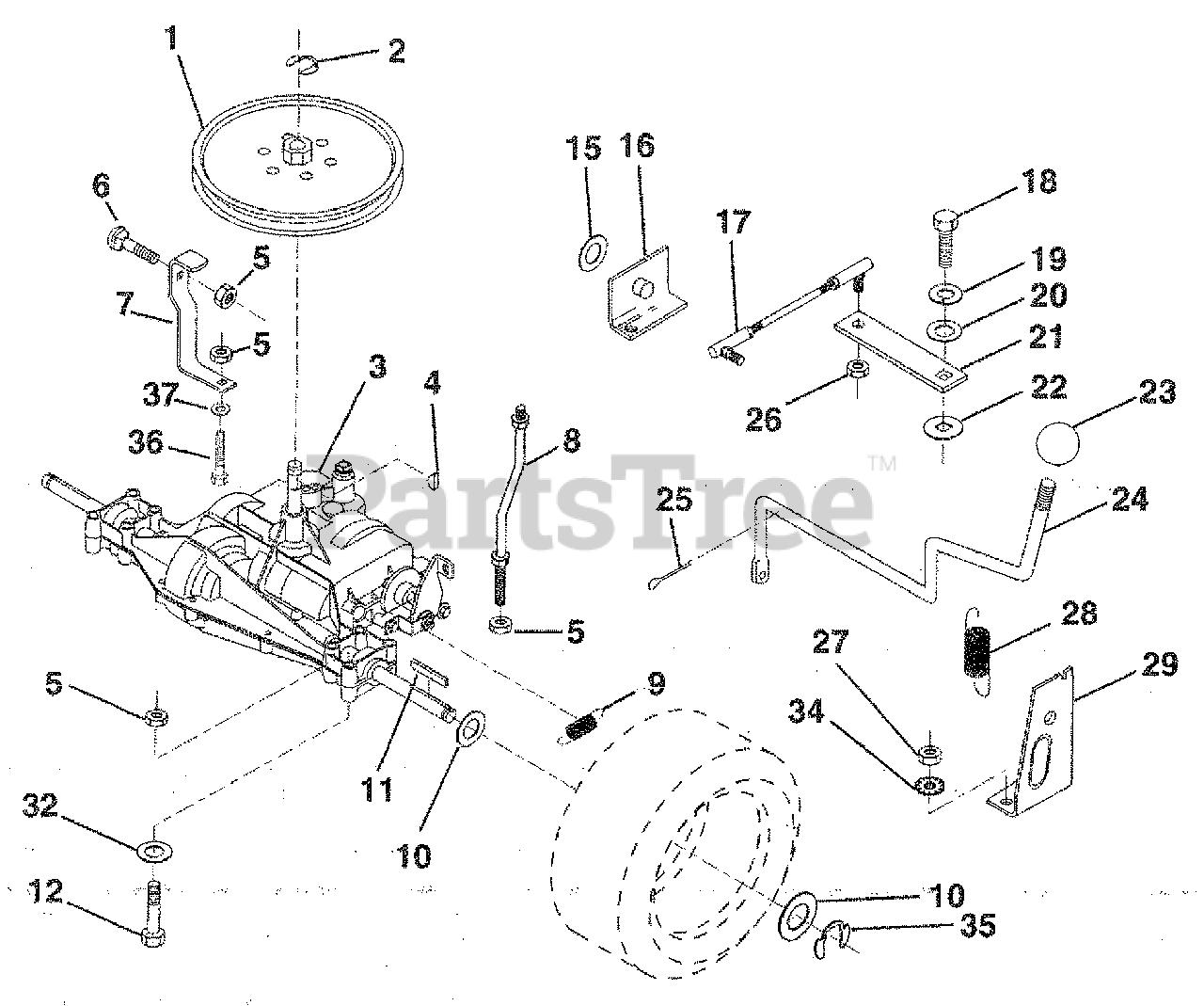

Transxle Parts Diagram

  • Title

1

Husqvarna 532123385

Pulley

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000028

Ring, Retainer

$7.49

$

In Stock, Qty 13

0

3

Husqvarna 532137558

Transaxle, 4 Speed, Peerless Model #940-010

$

$

Currently unavailable

4

Husqvarna 532125096

Key, Woodruff #9

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 872140506

Bolt, Carriage 5/16-18 UNC x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 532133597

Strap, Torque

$

$

Not available

8

Husqvarna 532133357

Keeper Belt

$

$

Not available

9

Husqvarna 532110422

Spring, Brake
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

10

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532123583

Key, Square

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 874760536

Bolt Fin Hex 5/16-18 UNC x 2-1/4

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819171616

Washer 17/32 x 1 x 16 Ga
(Superseded to 734117801)

$

$

Not available

16

Husqvarna 532124600

Support Handle Shift LH

$

$

Not available

17

Husqvarna 532131940

Link, Shift

$26.99

$

Usually ships in 3-10 days

0

18

Husqvarna 871040412

Bolt, Fin Hex 1/4-28 UNF x 3/4 Gr. 8

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 819091210

Washer 9/32 x 3/4 x 10 Ga.

$6.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532131934

Arm, Shift

$

$

Not available

22

Husqvarna 532105701

Washer, Shift Plate

$6.49

$

In Stock, only 1 left!

0

23

Husqvarna 532106933

Knob

$7.49

$

In Stock, only 3 left!

0

24

Husqvarna 532131932

Handle, Shift Rod

$

$

Not available

25

Husqvarna 876020416

Pin, Cotter 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 873810500

Nut, Hex Nylon
(Superseded to 873610500)

$

$

Not available

27

Husqvarna 873510500

Nut, Keps 5/16 - 18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532128085

Extension, Spring

$

$

Not available

29

Husqvarna 532128084

Support Handle Shift RH

$

$

Not available

32

Husqvarna 819111116

Washer
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 811050500

Washer, Ext., Tooth, Lock 5/16
(Superseded to 810040500)

$3.99

$

In Stock, Qty 18

0

35

Husqvarna 812000001

E-Ring

$4.99

$

In Stock, Qty 17

0

36

Husqvarna 874760532

Bolt, Fin Hex 5/16-18 UNC x 2" Gr 2

$2.99

$

Usually ships in 3-10 days

0

37

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga

$0.99

$

Usually ships in 3-10 days

0
