LR 120 (954000582-C) - Husqvarna Lawn Tractor (1993-01) Seat Parts Diagram

Lawn Tractor

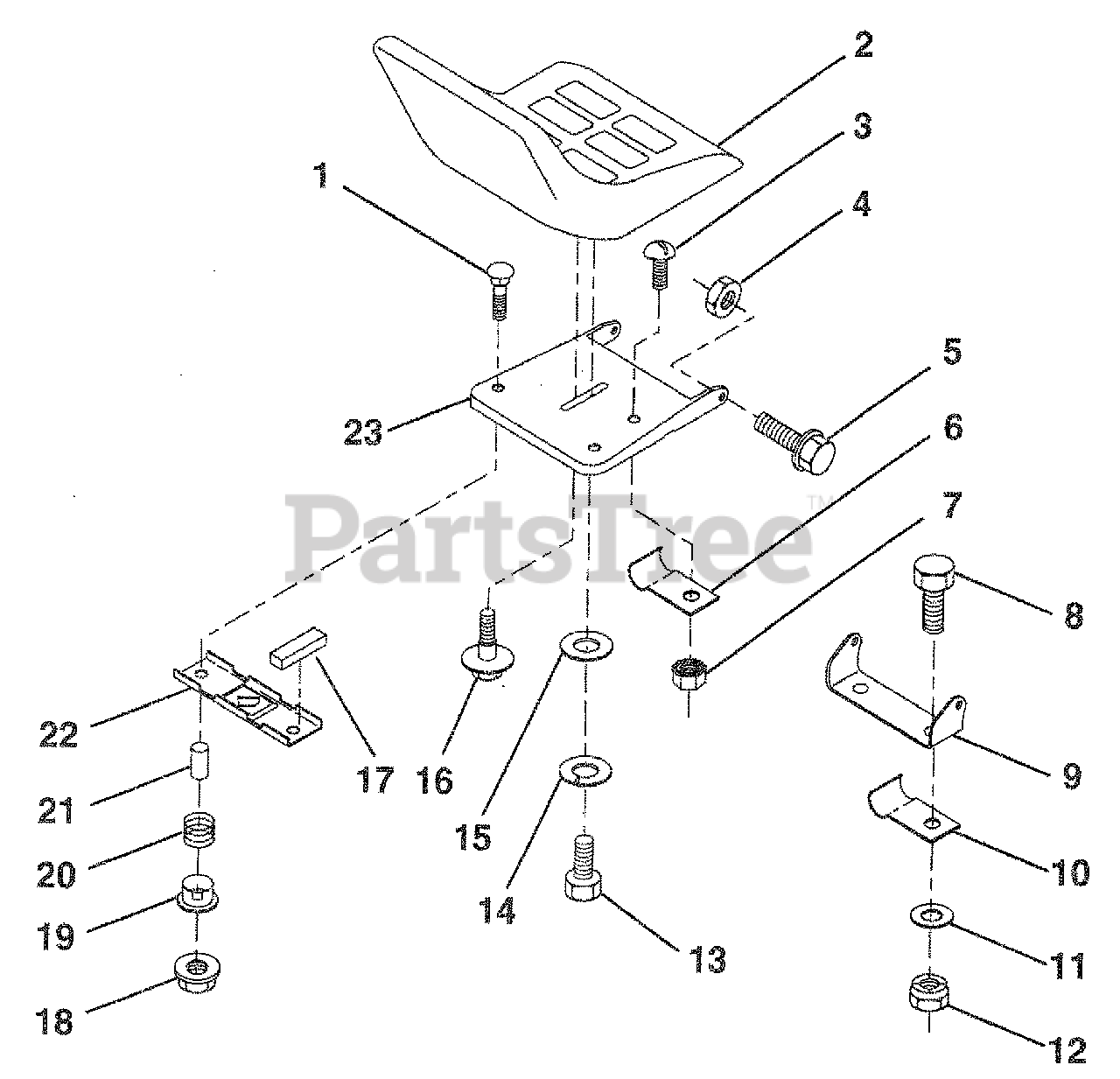

Seat Parts Diagram

  • Title

1

Husqvarna 872050411

Bolt, Carriage 1/4-20 x 1-3/8

$

$

Not available

2

Husqvarna 532130875

Seat
(Superseded to 532401042)

$206.99

$

In Stock, only 1 left!

0

3

Husqvarna 874641008

Screw, Slotted Pan Head #10 - 32 x 1/2

$2.99

$

Usually ships in 3-10 days

0

4

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532105529

Bolt, Shoulder 5/16 -18 UNC
(Superseded to 532139888)

$6.49

$

In Stock, Qty 9

0

6

Husqvarna 532124967

Clip, Insulated

$

$

Not available

7

Husqvarna 873951000

Nut, Keps #10-32 UNF

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 874760612

Bolt, Fin Hex 3/8 -16 UNC x 3/4

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 532126656

Bracket, Pivot Seat

$

$

Not available

10

Husqvarna 532126471

Clip, insulated

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 819133210

Washer 12/32 x2 x 10 Ga.
(Superseded to 532413524)

$

$

Not available

12

Husqvarna 873680600

Nut, Crownlock 3/8-16 UNC

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874780814

Bolt, Fin Hex 1/2-13 x 7/8 Gr. 5
(Superseded to 871110814)

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 810040800

Washer, Lock Hvy H!c! Spr 1/2

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 819171912

Washer, 17/32 x 1 -3/16 x 12 Ga.

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna 532127018

Bolt, Shoulder

$7.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532121251

Strip, Foam

$

$

Not available

18

Husqvarna 532123976

Nut, Hex Large Flange Lock
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532121248

Bushing, Snap

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532121250

Spring, Compression

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532134300

Spacer, Split 28 x .96

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 532121246

Bracket, Switch, Mounting
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

23

Husqvarna 532131451

Pan, Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0
