LR 125 (954001202-B) - Husqvarna Lawn Tractor (1995-03) CHASSIS / FRAME Parts Diagram

Lawn Tractor

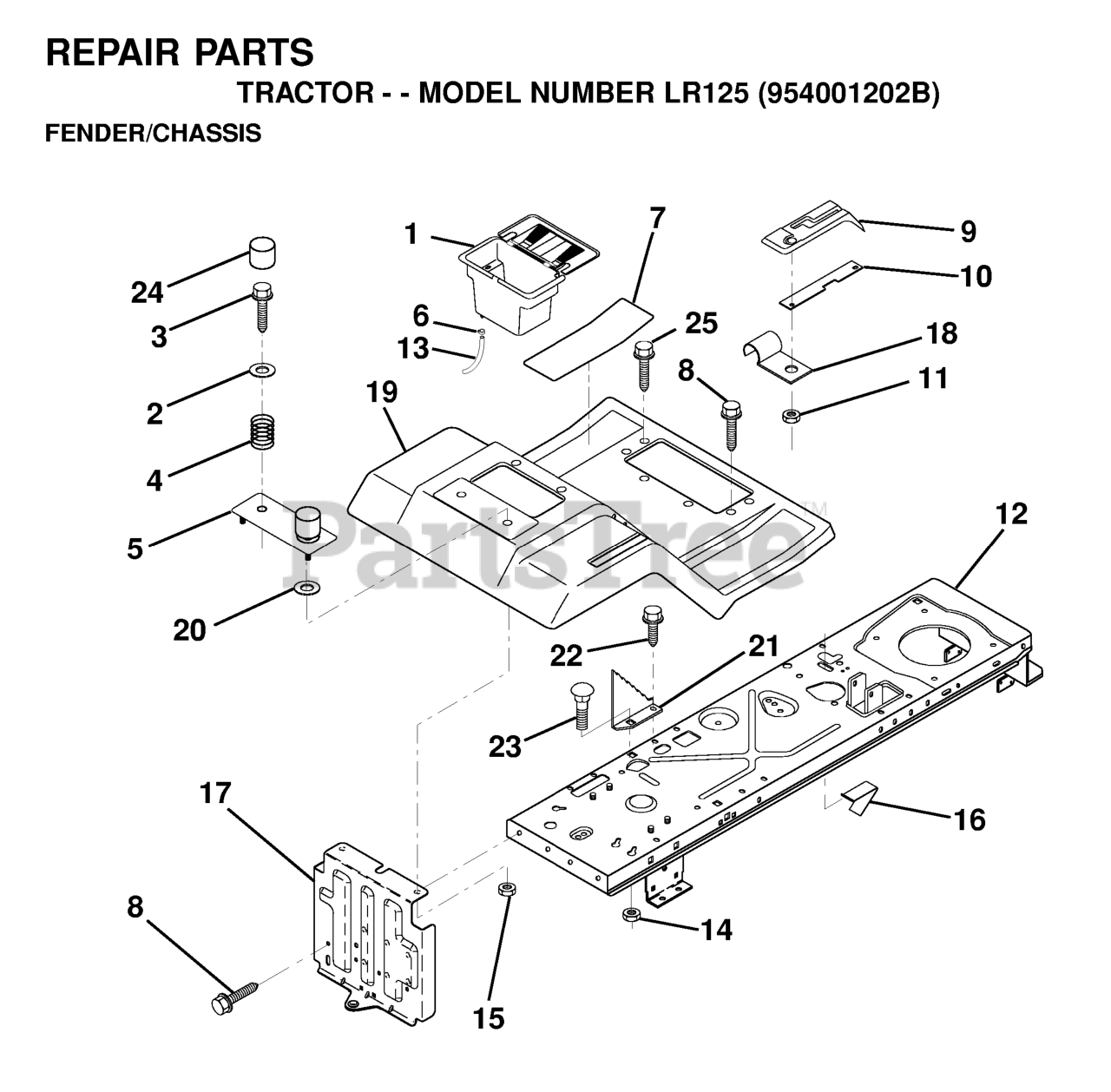

CHASSIS / FRAME Parts Diagram

  • Title

14

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532141366

FENDER FRONT ASSY
(Superseded to 532140956)

$

$

Not available

16

Husqvarna 532141736

SWITCH ACTUATOR
(Superseded to 532146613)

$

$

Not available

20

Husqvarna 819091413

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532140782

DRAWBAR

$

$

Not available

22

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 817490612

SCREW
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 532109596

HOSE CLAMP T

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532144940

BATTERY CASE
(Superseded to 532404349)

$

$

Not available

24

Husqvarna 532124238

CAP SPRING

$

$

Not available

12

Husqvarna 532145190

FRAME

$

$

Not available

23

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 532126995

CONSOLE,SHT CONTR

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 817190516

Screw Hex Wsh Thdroll 5/16-18 x 1

$

$

Not available

15

Husqvarna 873640400

Nut, Keps Blk Hex 1/4-20 UNC

$

$

Not available

8

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532126470

CLIP,INSULATOR

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532140297

BRACKET DEPTH

$

$

Not available

10

Husqvarna 532139783

BAR, SHIFT LOCK

$

$

Not available

13

Husqvarna 532109238

TUBE BATTERY DRAIN

$

$

Not available

11

Husqvarna 532124346

NUT.PUSH.3/16

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 532125142

PLATE ASM BATTERY
(Superseded to 532127115)

$

$

Not available

4

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

7

Husqvarna 532126700

FOOTREST PAD

$

$

Not available
