LR 130 (954150006-D) - Husqvarna Lawn Tractor (2000-02) STEERING Parts Diagram

Lawn Tractor

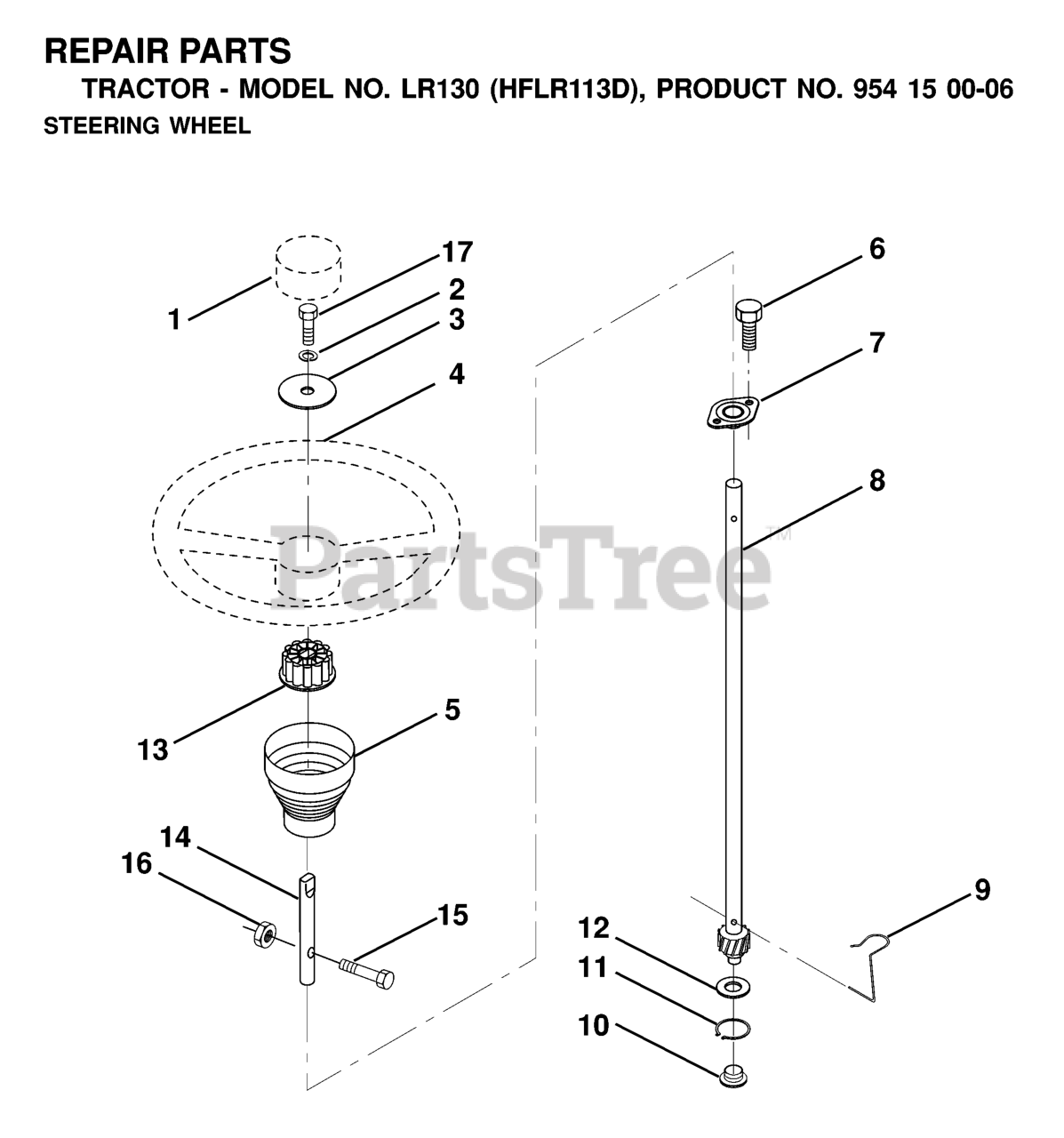

STEERING Parts Diagram

  • Title

11

Husqvarna 812000045

RING

$7.49

$

In Stock, Qty 5

0

1

Husqvarna 532146150

STEERING WHEEL INSERT

$

$

Not available

12

Husqvarna 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532124210

STEERING CLIP

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532155104

BUSHING
(Superseded to 532155107)

$6.49

$

In Stock, only 1 left!

0

3

Husqvarna 532171027

Washer 12/32 x 2-3/8 x 8 Ga.

$

$

Currently unavailable

15

Husqvarna 532171025

BOLT
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532171024

EXTENTION STEERING
(Superseded to 532153721)

$

$

Not available

16

Husqvarna 532171026

NUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532171031

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532100711

ADAPTER LT
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

2

Husqvarna 532171029

WASHER
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532127396

STEERING SLEEVE

$

$

Not available

10

Husqvarna 532123438

BUSHING STEER LWR

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, Qty 17

0

4

Husqvarna 532146146

STEERING WHEEL

$103.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532147391

STEERING SHAFT
(Superseded to 532148966)

$

$

Not available
