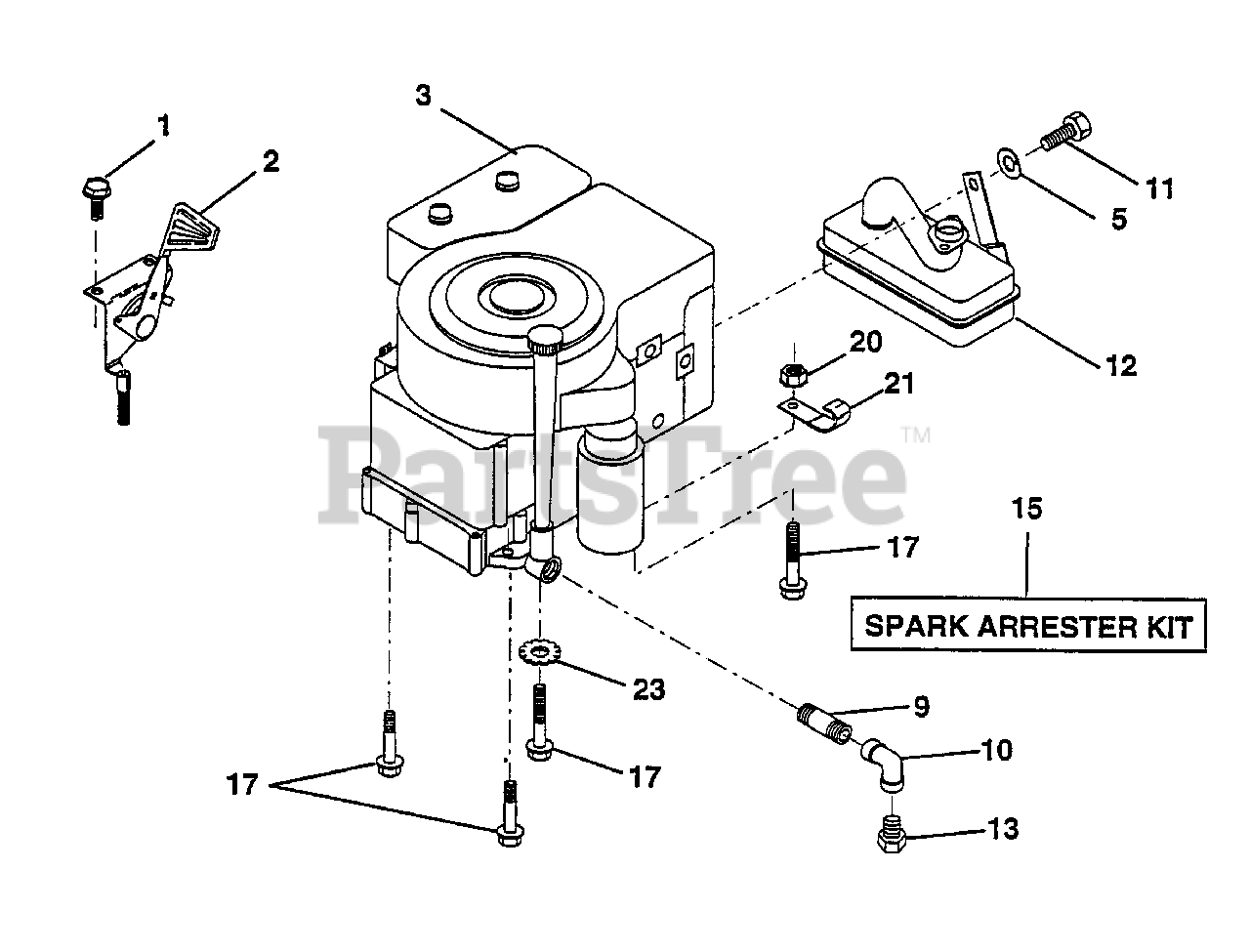

LRH 125 (954000622-B) - Husqvarna Lawn Tractor (1994-01) Engine Parts Diagram

Lawn Tractor

Engine Parts Diagram

  • Title

1

Husqvarna 817060408

Screw, Hex Head, Thread Cutting 1/4-20 x 1/2

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532132752

Control, Throttle

$24.99

$

Usually ships in 3-10 days

0

3

Engine, Kohler, 12.5 HP, Model

$

$

Not available

5

Husqvarna 810040500

Washer, Lock, Heavy Helical Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 813280328

Nipple Pipe

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 813200300

Elbow
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

11

Husqvarna 874760508

Bolt, Hex, Fin. 5/16 -18 x 1/2

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532138149

Muffler

$

$

Not available

13

Oil Drain Plug

Note: (Order From Eng Mfg)

$

$

Not available

15

Husqvarna 532137180

Arrester, Spark

Note: (Optional Equipment)

$182.99

$

In Stock, only 1 left!

0

17

Husqvarna 532125398

Bolt Hex
(Superseded to 740108025)

$

$

Not available

20

Husqvarna 873510600

Nut, Hex, Keps 3/8-16

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

23

Husqvarna 811050600

Washer Lock Ext. Tooth 3/8
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0
