LRH 13 (954003421) - Jonsered Rear-Engine Riding Mower (1996-01) FRONT AXEL Parts Diagram

Rear-Engine Riding Mower

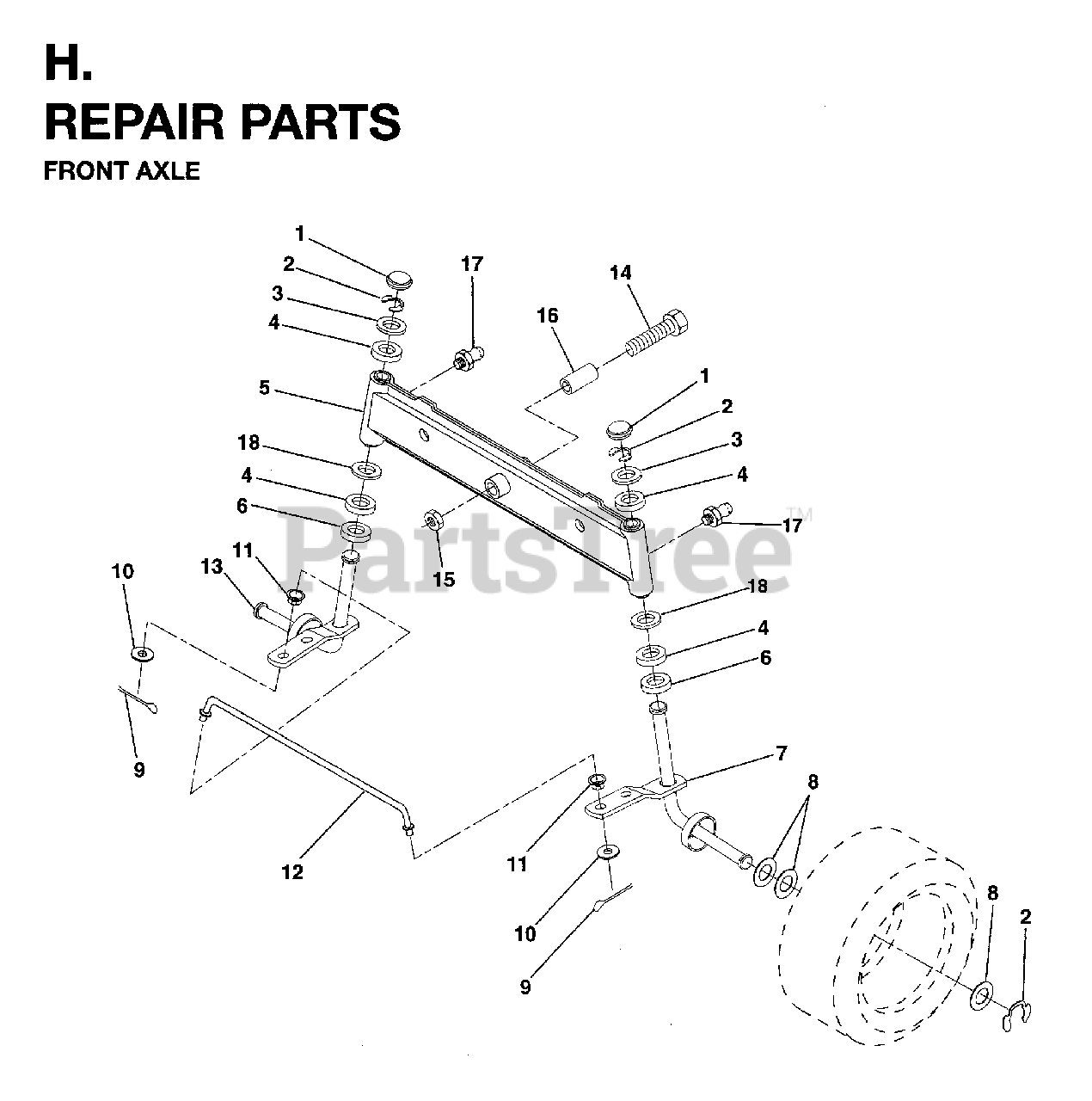

FRONT AXEL Parts Diagram

  • Title

1

Jonsered 532121232

CAP.SPINDLE

$3.99

$

In Stock, Qty 20+

0

2

Jonsered 812000029

RING CLIP

$3.99

$

In Stock, Qty 20+

0

3

Jonsered 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

4

Jonsered 532003366

BEARING.STEERING.COLUMN

$3.49

$

In Stock, Qty 20+

0

5

Jonsered 532142033

AXLE ASSY
(Superseded to 142033)

$

$

Not available

6

Jonsered 532006266

WASHER THRUST

$7.99

$

In Stock, Qty 20+

0

7

Jonsered 532137062

SPINDLE ASSY RH NLA

$

$

Not available

8

Jonsered 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

9

Jonsered 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Jonsered 734117201

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

11

Jonsered 532126847

BUSHING.DRAGLINK

$4.99

$

In Stock, Qty 14

0

12

Jonsered 532130465

TIE ROD
(Superseded to 532192757)

$34.99

$

In Stock, only 4 left!

0

13

Jonsered 532137061

SPINDLE ASSY LH

$

$

Not available

14

Jonsered 874011056

BOLT.HEX.5/8-11

$4.99

$

Usually ships in 3-10 days

0

15

Jonsered 873681000

LOCKNUT
(Superseded to 583612401)

$2.99

$

Usually ships in 3-10 days

0

16

Jonsered 532110438

BEARING
(Superseded to 532155134)

$

$

Not available

17

Jonsered 532006855

ZERK M
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

18

Jonsered 819272016

WASHER

$6.49

$

In Stock, only 4 left!

0
