LRH 13 (954003421) - Jonsered Rear-Engine Riding Mower (1996-01) STEERING Parts Diagram

Rear-Engine Riding Mower

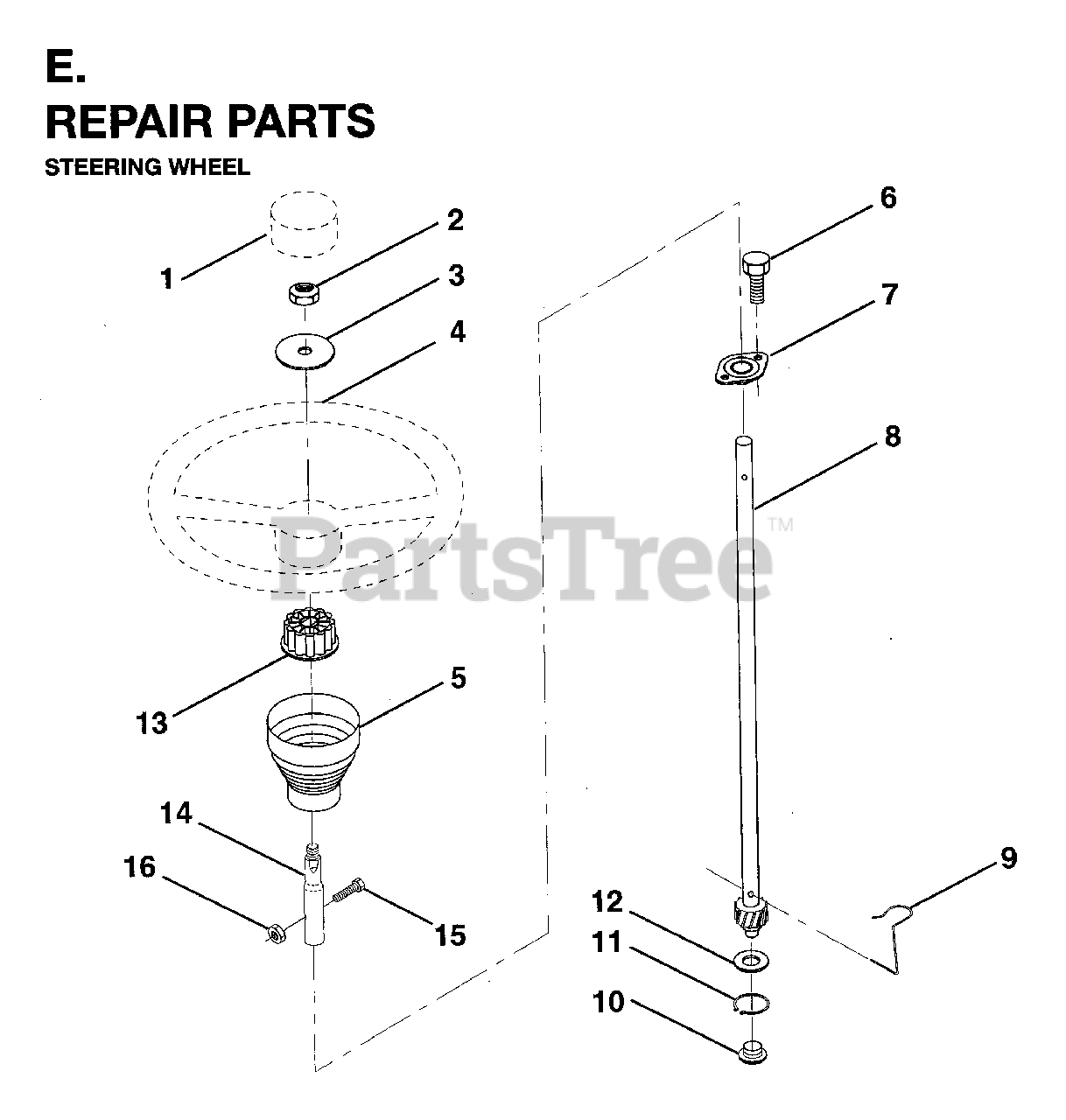

STEERING Parts Diagram

  • Title

1

Jonsered 532140175

No Description Available

$

$

Not available

2

Jonsered 873610600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

3

Jonsered 819133808

WASHER T
(Superseded to 583789501)

$

$

Not available

4

Jonsered 532139768

No Description Available

$

$

Not available

5

Jonsered 532121897

No Description Available
(Superseded to 583666401)

$3.99

$

Usually ships in 3-10 days

0

6

Jonsered 817211008

SCREW **

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 532102803

BUSHING-STRG LT
(Superseded to 532155107)

$6.49

$

In Stock, only 1 left!

0

8

Jonsered 532147391

STEERING SHAFT
(Superseded to 532148966)

$

$

Not available

9

Jonsered 532124210

STEERING CLIP

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532123438

BUSHING STEER LWR

$6.49

$

In Stock, only 2 left!

0

11

Jonsered 812000045

RING

$7.49

$

In Stock, Qty 5

0

12

Jonsered 734118571

WASHER

$

$

Not available

13

Jonsered 532104820

ADAPTER-WHEEL LT

$17.99

$

Usually ships in 3-10 days

0

14

Jonsered 532147392

SHAFT EXTENSION
(Superseded to 532154307)

$42.99

$

Usually ships in 3-10 days

0

15

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0
