LS 25 CC (24BF552B756) - Cub Cadet Log Splitter (2015) Honda GCV160LA0-N5MF Cylinder Assembly Parts Diagram

Log Splitter

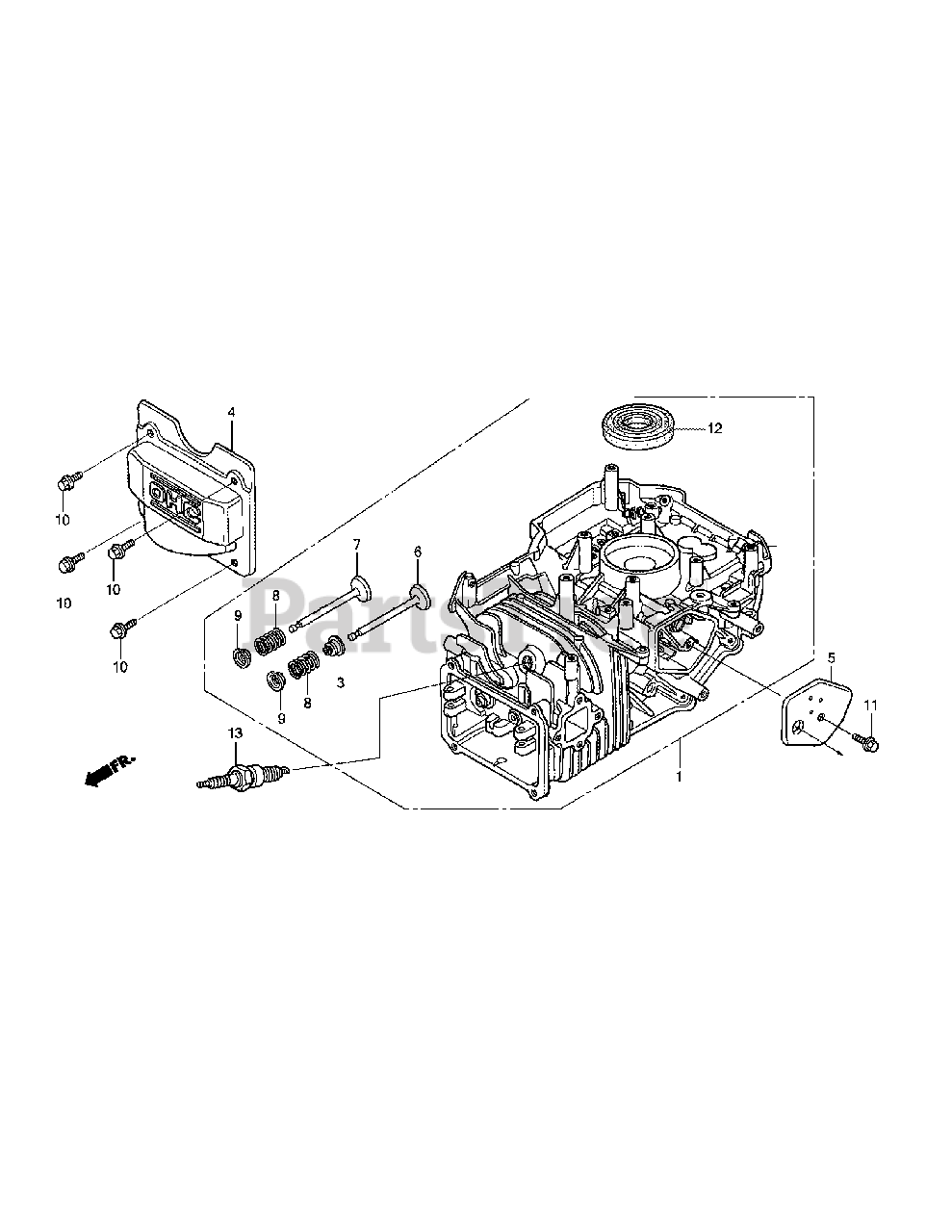

Honda GCV160LA0-N5MF Cylinder Assembly Parts Diagram

  • Title

1

Honda 12000-Z0L-840

Cylinder Assembly
(Superseded to 06120-Z0L-305)

$105.99

$

Usually ships in 3-6 days

0

3

Honda 12209-ZM0-003

Valve Stem Seal

$9.49

$

In Stock, Qty 10

0

4

Honda 12310-Z8A-000

Head Cover

$33.99

$

In Stock, Qty 10

0

5

Honda 12355-ZL8-000

Cover, Breather

$9.49

$

In Stock, Qty 9

0

6

Honda 14711-Z0J-800

Intake Valve
(Superseded to 14711-ZL8-000)

$68.99

$

In Stock, Qty 5

0

7

Honda 14721-Z8B-000

Exhaust Valve
(Superseded to 14721-ZL8-000)

$58.99

$

In Stock, Qty 12

0

8

Honda 14751-ZL8-000

Valve Spring

$0.99

$

In Stock, Qty 12

0

9

Honda 14771-Z0J-000

Valve Spring Retainer

$10.99

$

In Stock, Qty 6

0

10

Honda 90013-883-000

Flange Bolt, 6 x 12

$1.99

$

In Stock, Qty 11

0

11

Honda 90014-952-000

Flange Bolt, 6 x 14

$2.99

$

In Stock, Qty 6

0

12

Honda 91201-ZL8-003

Oil Seal, 25.4 x 62 x 6

$7.99

$

In Stock, only 3 left!

0

13

Honda 98079-56846

SparkPlug,BPR6ES(NGK)

$3.49

$

In Stock, Qty 20+

0
