LS 25 CC (24BF552B756) - Cub Cadet Log Splitter (2015) Honda GCV160LA0-N5MF Governor Parts Diagram

Log Splitter

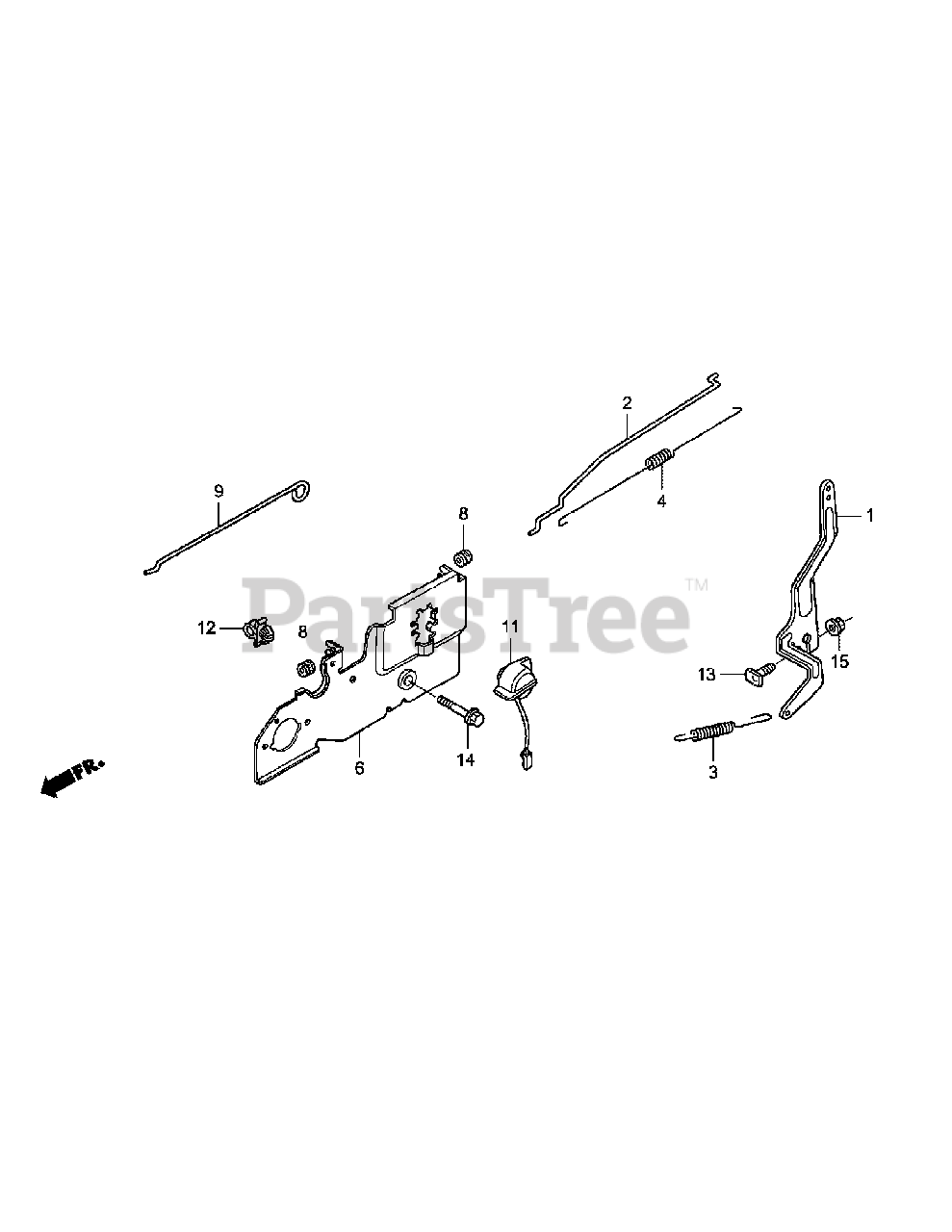

Honda GCV160LA0-N5MF Governor Parts Diagram

  • Title

1

Honda 16500-Z8D-000

Control Assembly

$46.99

$

In Stock, only 1 left!

0

2

Honda 16551-ZM0-010

Governor Arm

$7.49

$

In Stock, Qty 12

0

3

Honda 16555-Z0L-801

Governor Rod

$0.99

$

In Stock, Qty 20+

0

4

Honda 16561-Z8B-V30

Governor Spring

$1.49

$

In Stock, Qty 9

0

5

Honda 16562-ZM0-000

Throttle Return Spring

$3.49

$

In Stock, Qty 20+

0

6

Honda 16581-Z8D-000

Control Base

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16613-893-000

Choke Rod Grommet

$3.99

$

In Stock, only 2 left!

0

8

Honda 16674-Z8D-800

Choke Rod

$1.99

$

In Stock, Qty 7

0

9

Honda 16950-Z0Y-003

Petcock Assembly

$4.99

$

In Stock, Qty 13

0

10

Honda 35120-Z8D-901

Engine Stop Switch Assembly

$8.49

$

In Stock, only 1 left!

0

11

Honda 51125-Z0L-003

Wire Holder

$8.49

$

In Stock, only 1 left!

0

12

Honda 90013-883-000

Flange Bolt, 6 x 12

$1.99

$

In Stock, Qty 13

0

13

Honda 90015-ZE5-010

Governor Arm Bolt

$3.49

$

In Stock, only 2 left!

0

14

Honda 90017-883-000

Flange Bolt, 6 x 32

$3.49

$

In Stock, only 2 left!

0

15

Honda 91424-Z8D-801

Tube

$12.99

$

Usually ships in 3-6 days

0

16

Honda 91427-Z8D-801

Tube

$17.99

$

Usually ships in 3-6 days

0

17

Honda 93913-25220

Screw, 5 x 12

$0.99

$

In Stock, Qty 11

0

18

Honda 94050-06000

Flange Nut, 6mm

$0.99

$

In Stock, Qty 20+

0

19

Honda 95002-40800-08

Tube Clamp

$2.99

$

In Stock, Qty 17

0

20

Honda 95002-41200-08

Tube Clamp

$3.49

$

In Stock, only 2 left!

0
