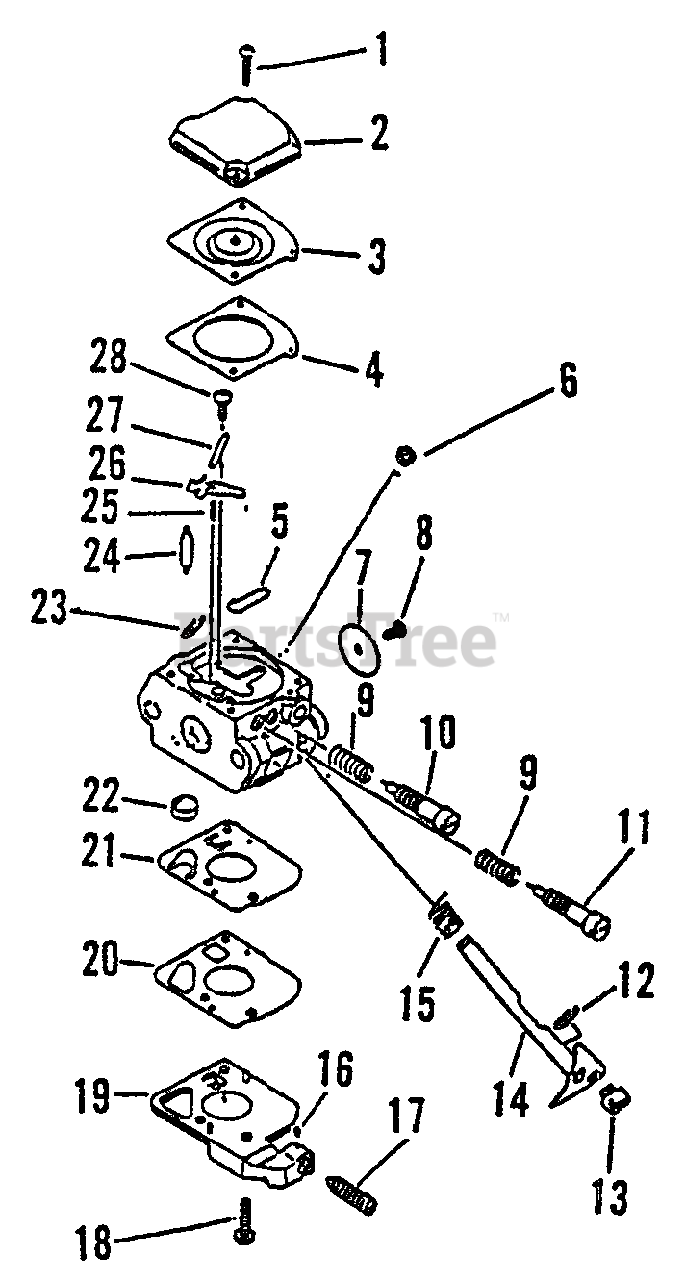

LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Carburetor Parts Diagram

String Trimmer

Carburetor Parts Diagram

  • Title

1

Echo 12520044730

CARBURETOR C1U-K9
(Superseded to 12520044731)

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 10

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: INCLUDED IN REPAIR KIT P/N 12530242030 & DIAPHRAGM/GASKET KIT P/N 12530342030

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530242030 & DIAPHRAGM/GASKET KIT P/N 12530342030

$

$

Not available

5

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

6

------------------

NOZZLE, CHECK VALVE

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

7

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 2 left!

0

8

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

10

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

11

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

12

Echo 12532713930

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

13

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

14

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

15

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

16

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

17

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

18

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

19

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

20

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530242030 & DIAPHRAGM/GASKET KIT P/N 12530342030

$

$

Not available

21

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530242030 & DIAPHRAGM/GASKET KIT P/N 12530342030

$

$

Not available

22

Echo 12532642030

STRAINER

$3.49

$

Usually ships in 2-4 days

0

23

Echo 12532715130

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

24

------------------

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

25

------------------

SPRING

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

26

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

27

------------------

PIN

Note: INCLUDED IN REPAIR KIT P/N 12530242030

$

$

Not available

28

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

Echo 12530342030

DIAPHRAGM/GASKET KIT

$13.99

$

In Stock, only 1 left!

0

Echo 12530242030

REPAIR KIT
(Superseded to 12530042030)

$17.99

$

In Stock, Qty 20+

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: INCLUDES THE FOLLOWING

$16.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

$3.99

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 20+

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 20+

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

Echo 61041404560

GASKET, GEAR CASE

$1.49

$

In Stock, only 3 left!

0
