LST-2100 - Lesco String Trimmer (SN: 001001 - 003000) Engine, Crankcase, Cover Parts Diagram

String Trimmer

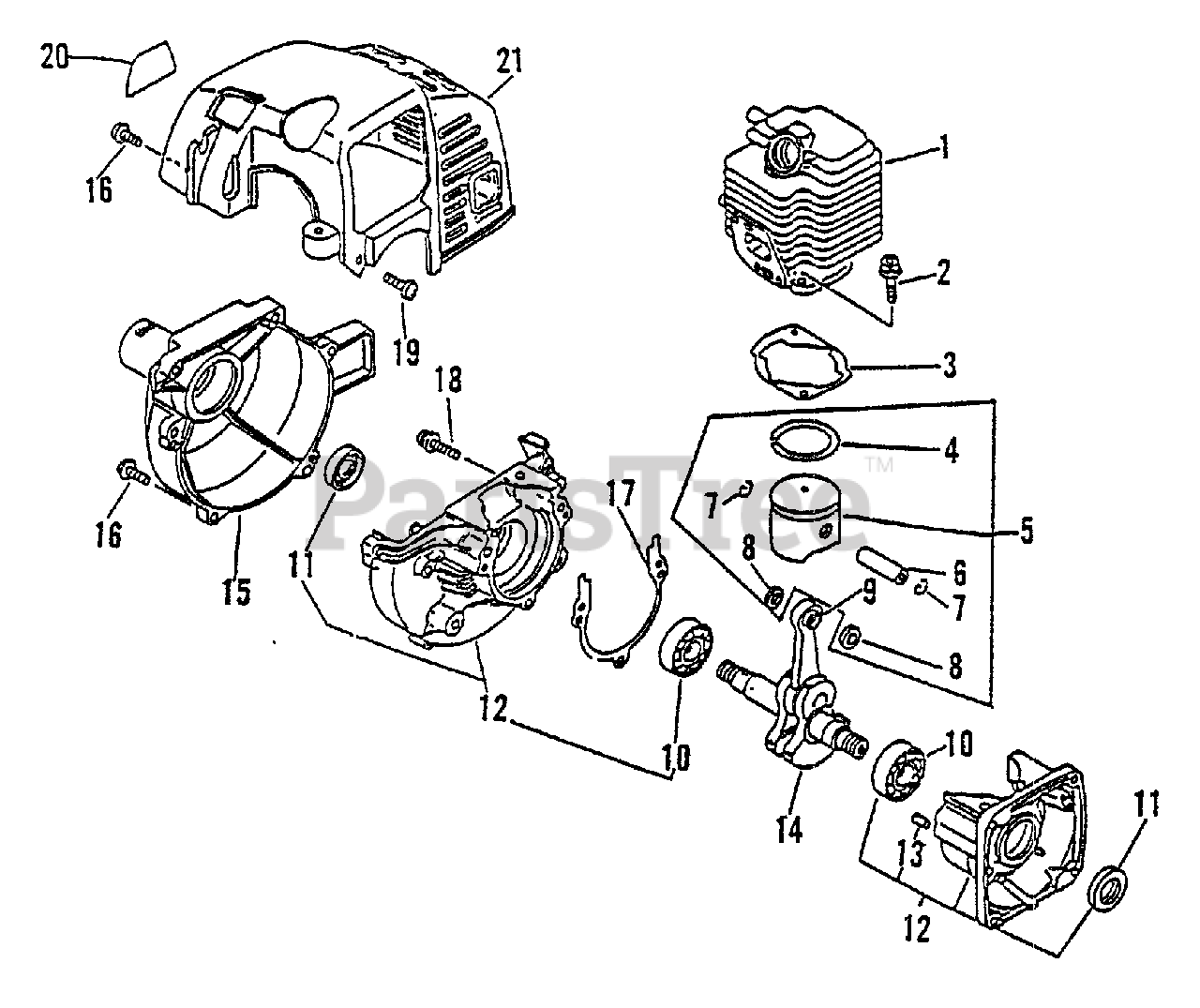

Engine, Crankcase, Cover Parts Diagram

  • Title

1

Echo 10101145230

CYLINDER

$127.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: USE P/N 88900042031

$3.99

$

In Stock, Qty 20+

0

4

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, Qty 20+

0

5

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: INCLUDES ITEMS 4, 6, 7 & 8

$65.99

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 2 left!

0

9

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$9.99

$

In Stock, only 2 left!

0

10

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

11

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 20+

0

12

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes ITEMS 10-13

$131.99

$

Usually ships in 2-4 days

0

13

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

14

Echo 10010044731

CRANKSHAFT ASSY
(Superseded to 10010044732)

Note: Includes ITEM 9

$155.99

$

In Stock, only 1 left!

0

15

Echo 10153552230

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

16

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

17

------------------

GASKET, CRANKCASE

Note: USE P/N 88900042031

$

$

Not available

18

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

20

Echo 89011852230

LABEL - MODEL LST-2100

$5.49

$

Usually ships in 2-4 days

0

21

Echo 10151452230

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

$16.99

$

In Stock, only 4 left!

0
