LSZ 5424 - Husqvarna 54" Zero-Turn Mower (2008-11) ENGINE PLATE Parts Diagram

54" Zero-Turn Mower

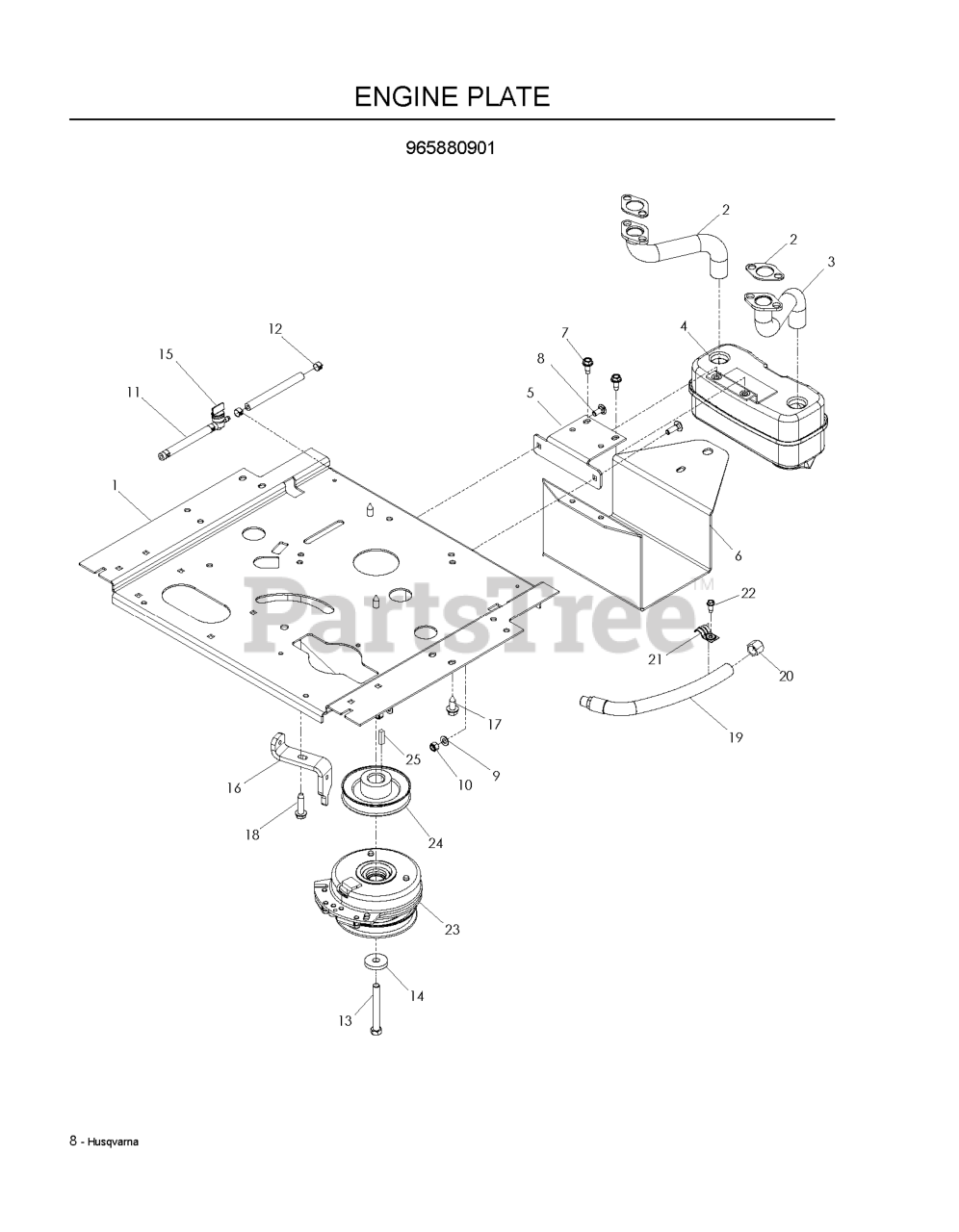

ENGINE PLATE Parts Diagram

  • Title

- -

Husqvarna 539105637

CLUTCH HARNESS

Note: NOT SHOWN

$24.99

$

In Stock, Qty 6

0

19

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$4.99

$

In Stock, only 3 left!

0

2

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$17.99

$

In Stock, Qty 10

0

24

Husqvarna 539109639

PULLEY

$

$

Not available

9

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539108199

EXHAUST GASKET - KAW

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$17.99

$

In Stock, Qty 9

0

21

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

11

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

16

Husqvarna 522459702

STOP, CLUTCH BLK

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

6

Husqvarna 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

7

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

20

Husqvarna 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

5

Husqvarna 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

23

Husqvarna 505287301

CLUTCH, 105 FT-LBS

$278.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539131604

MUFFLER ASM TWIN

$44.99

$

In Stock, Qty 18

0

25

Husqvarna 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, Qty 6

0

8

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

1

Husqvarna 516007502

PLATE, ENGINE, BLACK

$160.99

$

Usually ships in 3-10 days

0
