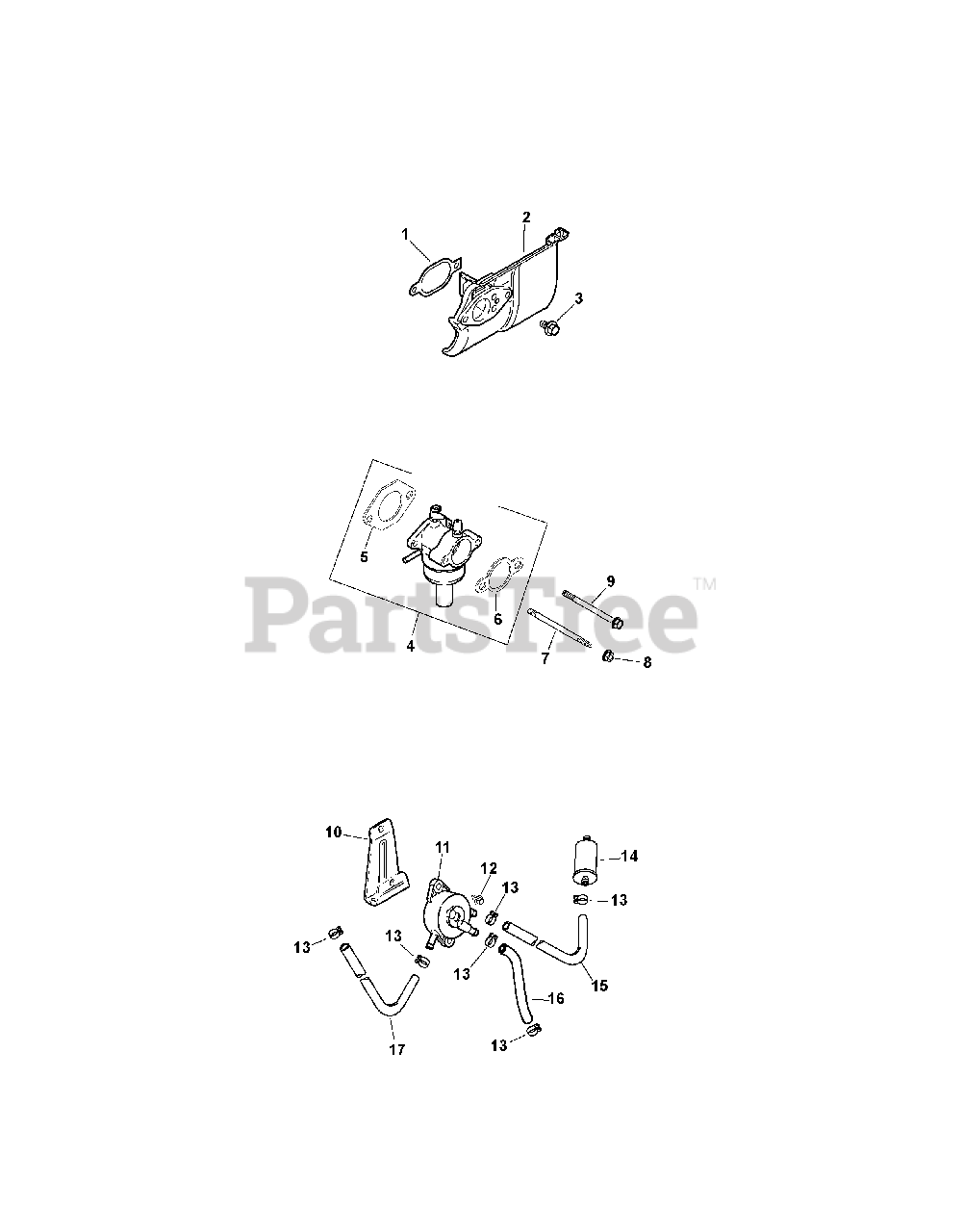

LT 1042 (13BX11CG709) - Cub Cadet 42" Lawn Tractor (2007 & Before) Kohler SV590-0003 Fuel System Parts Diagram

42" Lawn Tractor

Kohler SV590-0003 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-20-041-07-S

Heat Deflector Gasket
(Superseded to KH-20-041-17-S)

$7.49

$

In Stock, Qty 8

0

2

Cub Cadet KH-20-265-01-S

Heat Deflector
(Superseded to KH-20-265-09-S)

$29.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-M-651020-S

Hex Flange Screw (M6 x 1.0 x 20)

$2.49

$

In Stock, Qty 6

0

4

Cub Cadet KH-20-853-14-S

Carburetor w/Gaskets
(Superseded to KH-20-853-33-S)

$175.99

$

In Stock, Qty 7

0

5

Cub Cadet KH-12-041-01

Carburetor Gasket

$2.49

$

In Stock, Qty 13

0

6

Cub Cadet KH-12-041-02

Air Cleaner Gasket

$2.49

$

In Stock, Qty 19

0

7

Cub Cadet KH-20-072-05-S

Carb Mounting Stud
(Superseded to KH-20-072-10-S)

$4.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-M-641060-S

Hex Flange Nut (M6 x 1.0)

$4.49

$

In Stock, Qty 15

0

9

Cub Cadet KH-20-086-11-S

Carb Screw (S60 x 1.42 x 85)

$

$

Not available

10

Cub Cadet KH-20-126-02-S

Fuel Pump Mounting Bracket

$8.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-393-16

Fuel Pump Assembly

$

$

Not available

12

Cub Cadet KH-M-0545010

Hex Flange Screw (M5 x .8 x 10)

$

$

Not available

13

Cub Cadet KH-25-237-14-S

Hose Clamp
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet KH-25-050-22-S

Fuel Filter
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-25-353-06-S

Fuel Line 4"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 6

0

16

Cub Cadet KH-52-353-20

Fuel Line 10"
(Superseded to 751-10349-16)

$18.99

$

In Stock, Qty 13

0

17

Cub Cadet KH-20-353-01-S

Fuel Line 15-3/4"

$

$

Not available

Cub Cadet KH-M-645016-S

Screw (M6 x 1.0 x 16) (NOT ILLUSTRATED)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet KH-X-22-11

1/4" Lock Washer (NOT ILLUSTRATED)

$

$

Not available

Cub Cadet KH-20-431-01-S

Insulating Sleeve (NOT ILLUSTRATED)
(Superseded to KH-25-431-12-S)

$10.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-757-02

Float Kit (NOT ILLUSTRATED)

$

$

Not available

Cub Cadet KH-12-757-03

Carburetor Repair Kit (NOT ILLUSTRATED)

$34.99

$

In Stock, only 4 left!

0

Cub Cadet KH-25-757-25-S

Solenoid Repair Kit (NOT ILLUSTRATED)

$75.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-757-37-S

Bowl Replacement Kit (NOT ILLUSTRATED)

$15.99

$

In Stock, Qty 9

0

Cub Cadet KH-12-454-03-S

Wire Tie (NOT ILLUSTRATED)

$3.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-454-05-S

Wire Tie (NOT ILLUSTRATED)

$2.49

$

In Stock, only 2 left!

0
