LT 1045 (13AX11CH256) - Cub Cadet 46" Lawn Tractor (2008 & After) Kohler SV590-0003 & SV600-0009 Fuel System Parts Diagram

46" Lawn Tractor

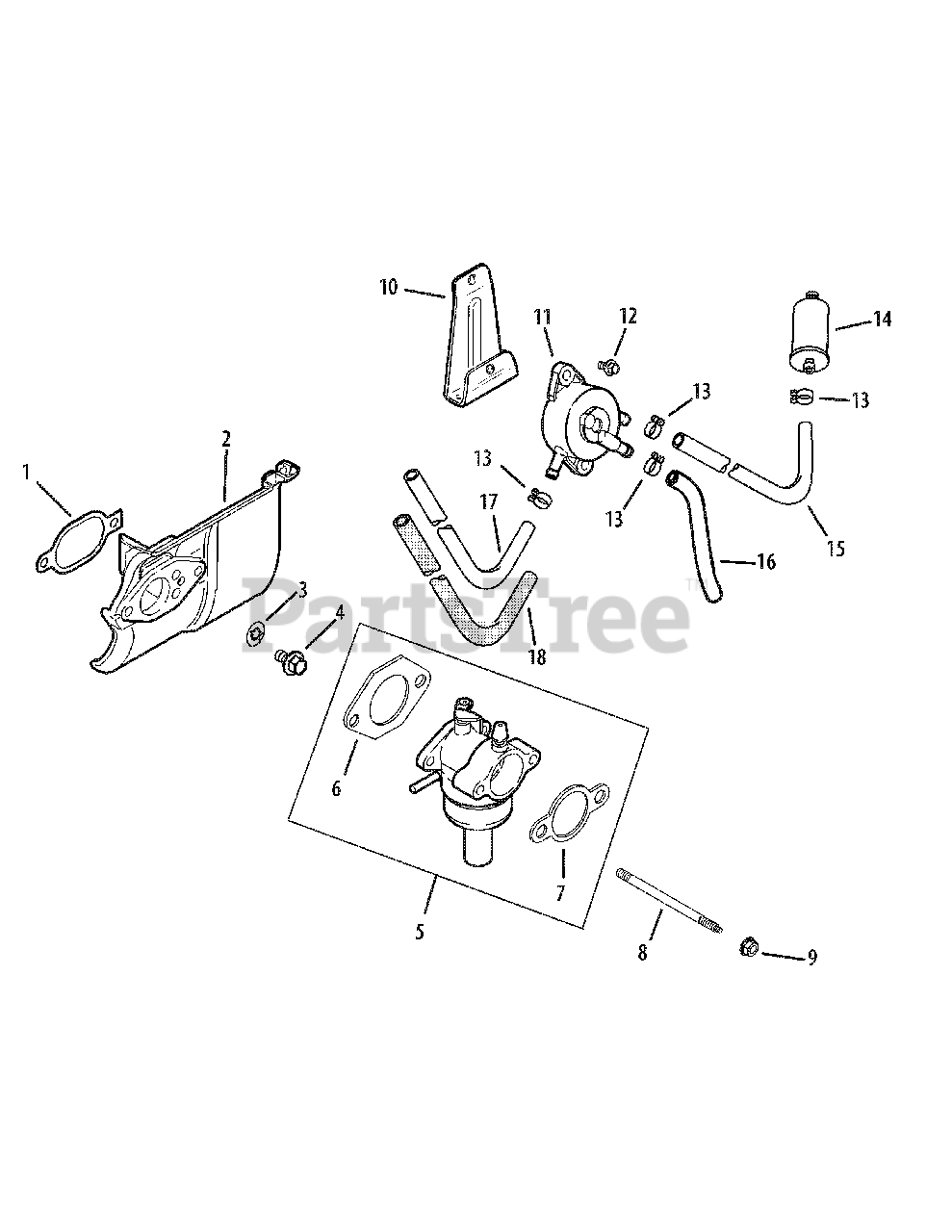

Kohler SV590-0003 & SV600-0009 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-20-041-07-S

Gasket, heat deflector
(Superseded to KH-20-041-17-S)

$7.49

$

In Stock, Qty 9

0

2

Cub Cadet KH-20-265-01-S

Deflector, heat
(Superseded to KH-20-265-09-S)

$29.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-X-22-11

Washer, Int. Tooth Lock, 1/4"

Note: (SV590)

$

$

Not available

4

Cub Cadet KH-M-651020-S

Screw, hex. flange M6x1.0x20

$2.49

$

In Stock, Qty 6

0

5

Cub Cadet KH-20-853-14-S

Carburetor w/gaskets
(Superseded to KH-20-853-33-S)

Note: (Includes 6, 7)

$175.99

$

In Stock, Qty 8

0

6

Cub Cadet KH-12-041-01

Gasket, carburetor

$2.49

$

In Stock, Qty 6

0

7

Cub Cadet KH-12-041-02

Gasket, air cleaner

$2.49

$

In Stock, Qty 18

0

8

Cub Cadet KH-20-072-05-S

Stud, carburetor mounting
(Superseded to KH-20-072-10-S)

$4.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-641060-S

Nut, hex. flange M6x1.0

$4.49

$

In Stock, Qty 15

0

10

Cub Cadet KH-20-126-02-S

Bracket, fuel pump mounting

$8.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-393-16

Pump, fuel

$

$

Not available

12

Cub Cadet KH-M-545010

Screw, hex. flange
(Superseded to KH-M-0545010)

$

$

Not available

13

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet KH-25-050-22-S

Filter, fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-25-353-06-S

Line, fuel 15.75"
(Superseded to KH-25-111-81-S)

Note: (pump to filter)

$17.99

$

In Stock, Qty 5

0

16

Cub Cadet KH-20-353-01-S

Line, fuel 4"

Note: (pump to carb)

$

$

Not available

17

Cub Cadet KH-52-353-20

Line, fuel 10"
(Superseded to 751-10349-16)

Note: (pulse to fitting)

$18.99

$

In Stock, Qty 13

0

18

Cub Cadet KH-20-431-02-S

Sleeve, Anti-Abrasion

Note: (SV590)

$

$

Not available

Cub Cadet KH-12-755-110-S

Kit, choke shaft

Note: (not shown)

$14.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-12-757-02

Kit, float

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-757-25-S

Kit, carburetor repair

Note: (not shown)

$75.99

$

In Stock, only 1 left!

0

Cub Cadet KH-12-757-33

Kit, solenoid repair

Note: (not shown)

$

$

Not available

Cub Cadet KH-12-757-37-S

Kit, bowl replacement w/gaskets

Note: (not shown)

$15.99

$

In Stock, Qty 9

0

Cub Cadet KH-20-755-06-S

Kit, High Altitude (5K ft)

Note: (not shown)(Incl. 5,6)

$17.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-20-755-07-S

Kit, High Altitude (10K ft)

Note: (not shown)(Incl. 5,6)

$18.99

$

Usually ships in 2-5 days

0
