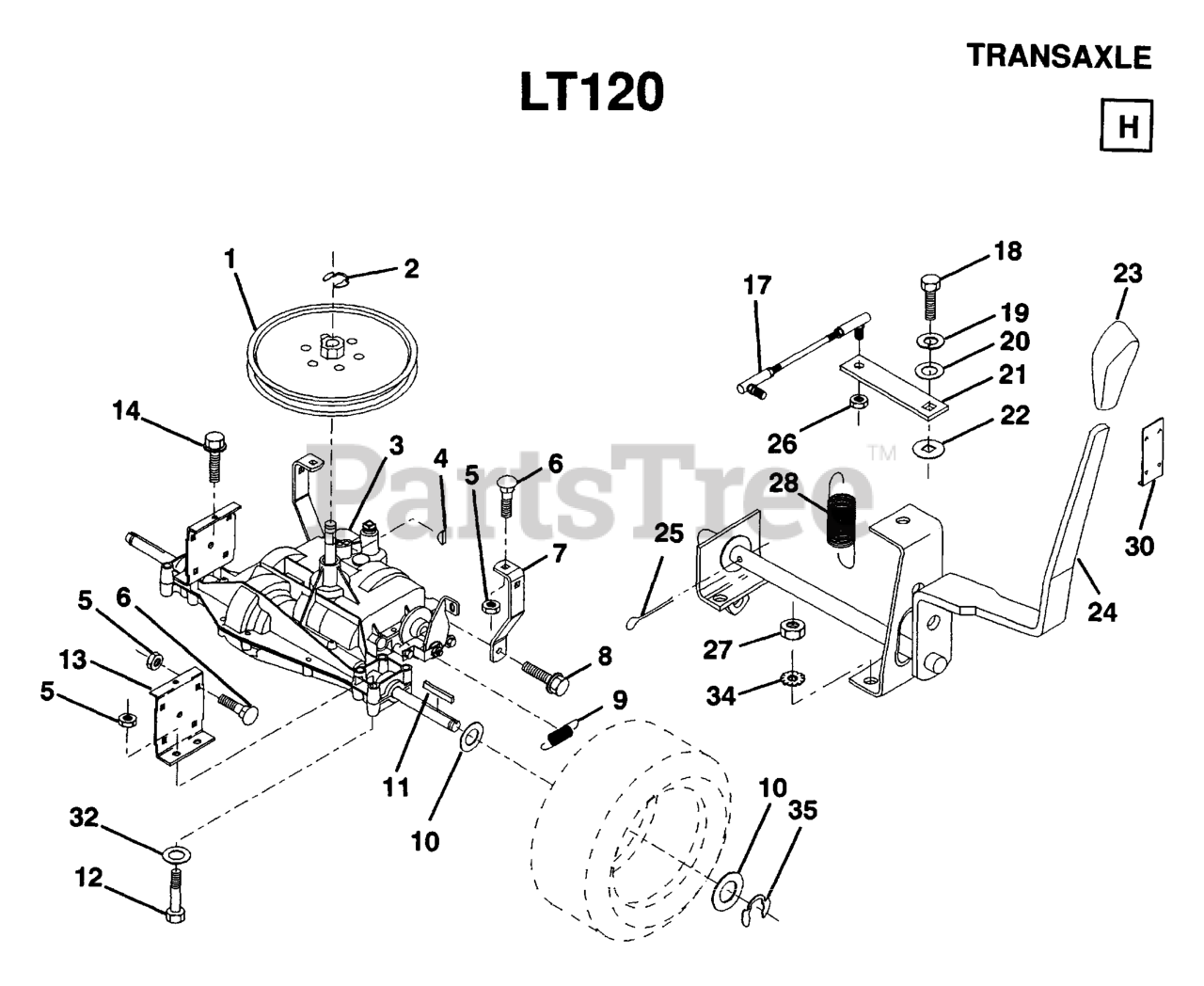

LT 120 - Husqvarna Lawn Tractor (1992-03) TRANSMISSION 2 Parts Diagram

Lawn Tractor

TRANSMISSION 2 Parts Diagram

  • Title

4

Husqvarna 532125096

KEY STD (1373) DANA

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 532127054

Transaxle, Peerless 6 Speed Model Number 930-028

$

$

Currently unavailable

11

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

35

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 17

0

19

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 532123377

BRKT,TRANSAXLE

$

$

Not available

27

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532110422

SPRING T
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

2

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 13

0

8

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532126292

ARM

$

$

Not available

26

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

1

Husqvarna 532123385

PULLEY

$34.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532123692

KNOB RETAINER

$

$

Not available

34

Husqvarna 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$3.99

$

In Stock, Qty 18

0

32

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 532128202

HANDLE ASSY SHIFT

$

$

Not available

12

Husqvarna 874760540

Bolt, Hex, Fin. 5/16 x 18 UNC x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532128085

SPRING.EXTENSION

$

$

Not available

7

Husqvarna 532123378

STRAP,TORQUE

$

$

Not available

14

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532122011

KNOB,SHT CONTROL

$

$

Not available

17

Husqvarna 532126293

JOINT

$

$

Not available

25

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 871040412

BOLT LT

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 819091210

WASHER LT

$6.99

$

Usually ships in 3-10 days

0
