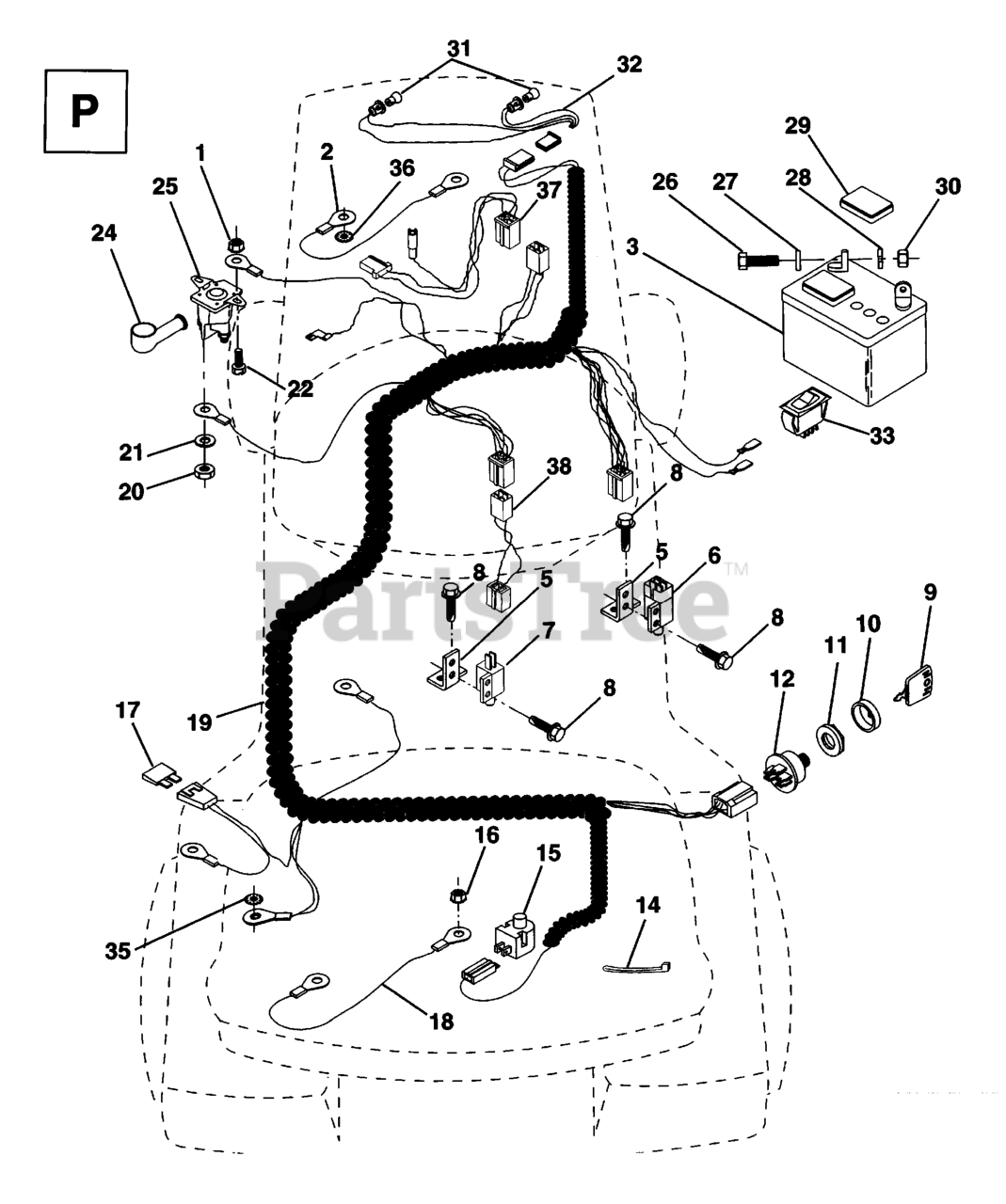

LT 120 - Husqvarna Lawn Tractor (1994-03) ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

29

Husqvarna 532121264

CAP BATTERY NLA

$

$

Not available

18

Husqvarna 532128353

CABLE ASSY

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

22

Husqvarna 874780408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532140410

HARNESS

$

$

Not available

21

Husqvarna 810090400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 3 left!

0

5

Husqvarna 532108236

BRACKET LT

$2.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532133909

BATTERY
(Superseded to 532123899)

$194.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873510500

NUT
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532124756

TIE GUIDE
(Superseded to 532007192)

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532140411

HARNESS, IGNITON
(Superseded to 532143132)

$

$

Not available

31

Husqvarna 532004152

LIGHTBULB

$4.99

$

In Stock, Qty 18

0

17

Husqvarna 532108824

FUSE HYT

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532140399

IGNITION SWITCH
(Superseded to 532158913)

$67.99

$

In Stock, only 1 left!

0

37

Husqvarna 532140413

HARNESS, ENGINE

$

$

Not available

6

Husqvarna 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

33

Husqvarna 532110712

SWITCH LT

$8.99

$

In Stock, Qty 10

0

11

Husqvarna 532140400

NUT, IGNITION
(Superseded to 532145774)

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532131078

SOCKET LIGHT HARNESS
(Superseded to 532142881)

$

$

Not available

2

Husqvarna 532108423

CABLE.BATTERY.6GA.16"RED

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

7

Husqvarna 532104445

SWITCH-INTER. GT

$17.99

$

In Stock, only 1 left!

0

20

Husqvarna 873350400

NUT
(Superseded to 873220400)

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$10.99

$

In Stock, Qty 16

0

1

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532138406

SOLENOID
(Superseded to 532146154)

$24.99

$

In Stock, Qty 18

0

10

Husqvarna 532123620

COVER KEY IGNITIO
(Superseded to 532141226)

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532140660

ADAPTOR, HARNESS

$

$

Not available

35

Husqvarna 811050600

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532140401

KEY MLD GEN DELTA

$6.49

$

In Stock, Qty 20+

0

8

Husqvarna 817021008

SCREW

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

36

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0
