LT 120 - Husqvarna Lawn Tractor (1995-03) TRANSMISSION Parts Diagram

Lawn Tractor

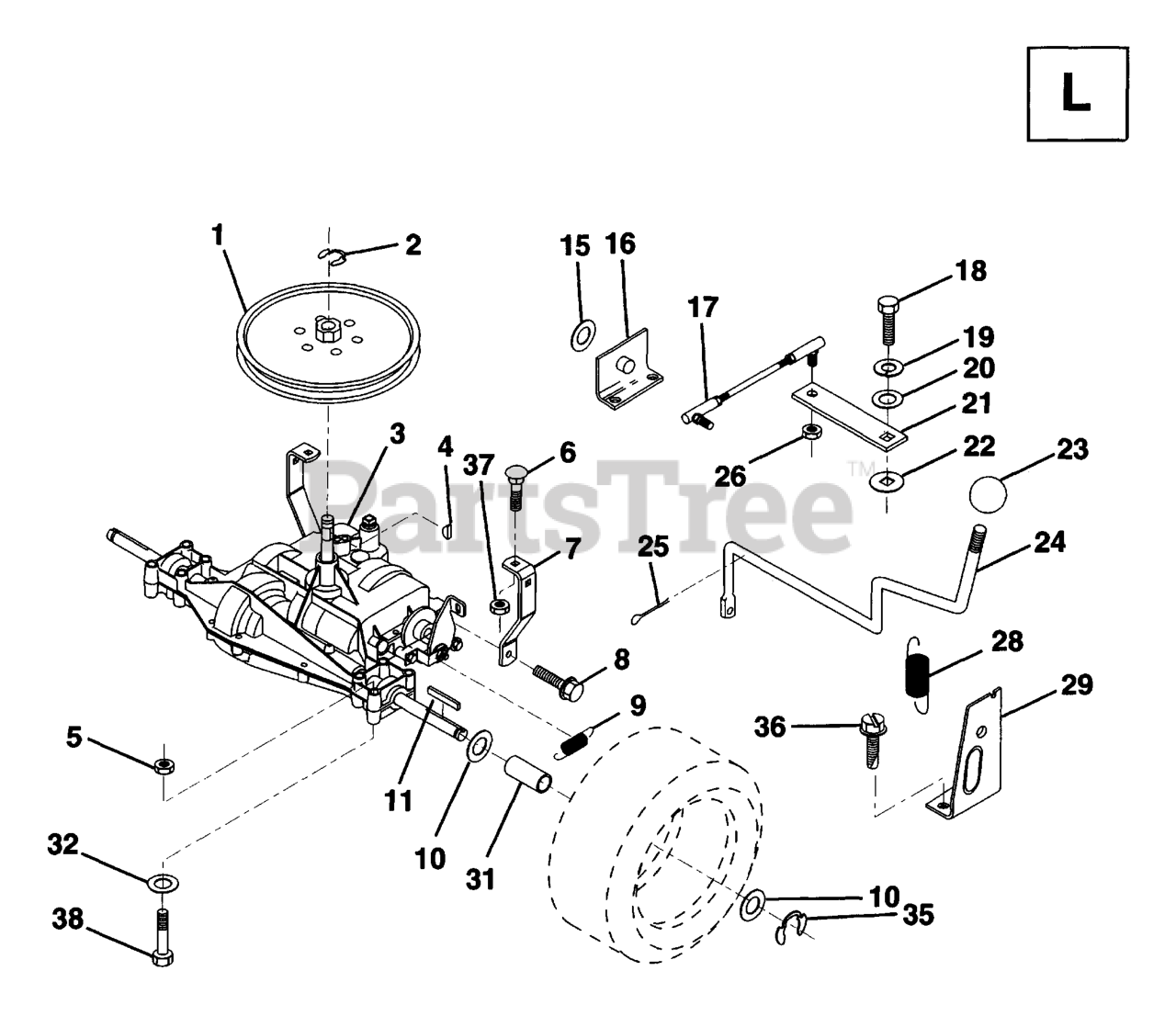

TRANSMISSION Parts Diagram

  • Title

24

Husqvarna 532128215

ROD, SHIFT

$

$

Not available

21

Husqvarna 532126292

ARM

$

$

Not available

22

Husqvarna 532105701

WASH-SHFT PLT LT

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532125096

KEY STD (1373) DANA

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532121274

KNOB.DUCKHEAD.1/2

$8.99

$

Usually ships in 3-10 days

0

35

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 17

0

8

Husqvarna 817490512

SCREW.THDROL.5/16-18X3/4.TTY
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 819171616

WASHER
(Superseded to 734117801)

$

$

Not available

5

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 812000028

RETAINING RING LT

$7.49

$

In Stock, Qty 14

0

25

Husqvarna 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532110422

SPRING T
(Superseded to 532146682)

$8.99

$

In Stock, only 1 left!

0

29

Husqvarna 532128084

SUPPORT HANDLE SHAFT RH

$

$

Not available

7

Husqvarna 532123378

STRAP,TORQUE

$

$

Not available

11

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

20

Husqvarna 819091210

WASHER LT

$6.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

19

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 874760540

Bolt, Hex, Fin. 5/16 x 18 UNC x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532128085

SPRING.EXTENSION

$

$

Not available

36

Husqvarna 874780408

BOLT
(Superseded to 539990071)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532124600

SUPT, HDLE SHT LH

$

$

Not available

37

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532126293

JOINT

$

$

Not available

26

Husqvarna 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

18

Husqvarna 871040412

BOLT LT

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

1

Husqvarna 532123385

PULLEY

$34.99

$

Usually ships in 3-10 days

0
