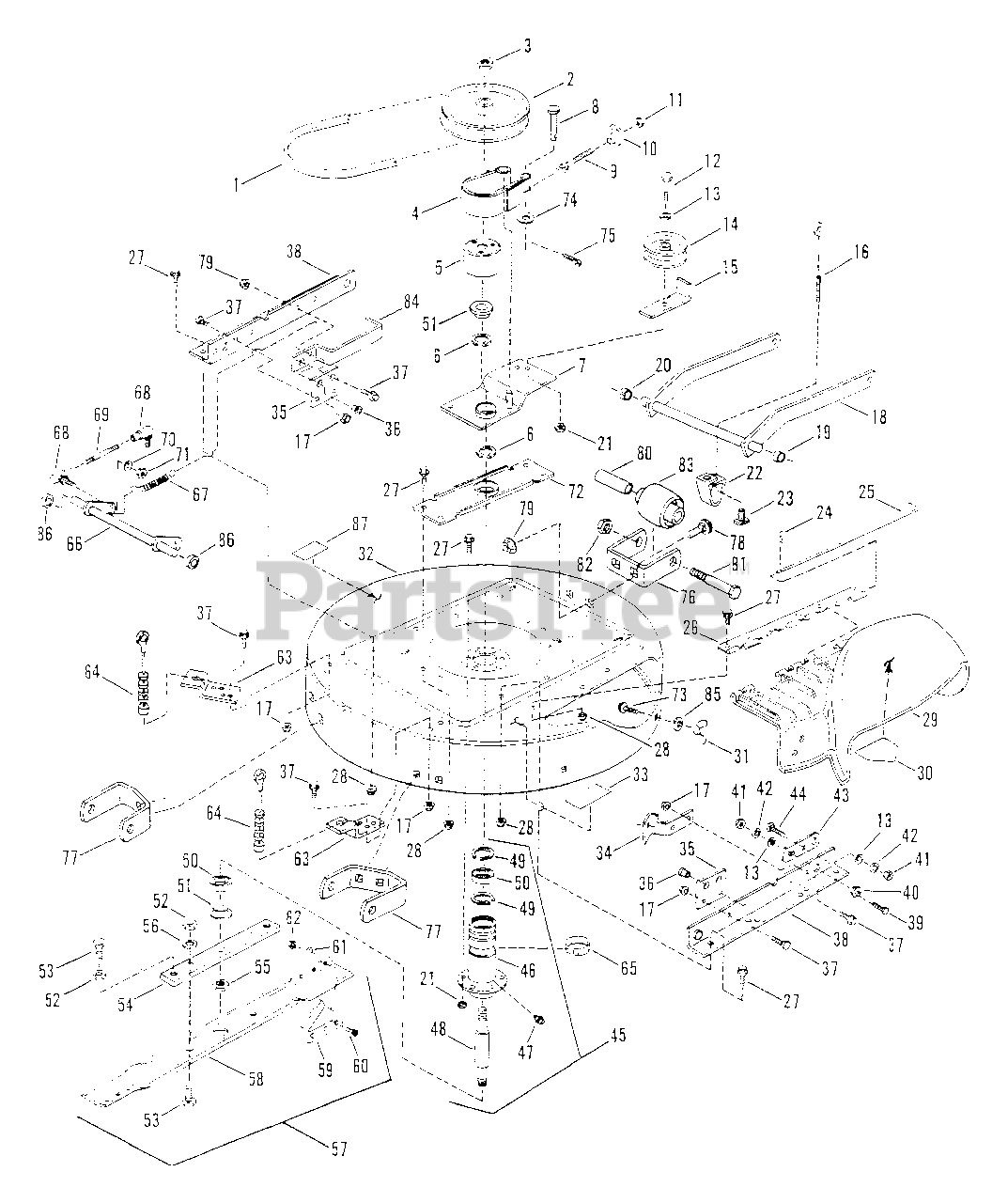

LT 120D331B (80390) - Snapper 33" Lawn Tractor, 12hp Cutting Deck - 33", Belts, Brakes Parts Diagram

33" Lawn Tractor, 12hp

Cutting Deck - 33", Belts, Brakes Parts Diagram

  • Title

1

Snapper 7023710

BELT, 33" Drive Kevlar (A-59 61" OD)
(Superseded to 7023710YP)

$47.99

$

In Stock, only 1 left!

0

2

Snapper 7018581

PULLEY, 8" O.D.
(Superseded to 7018581YP)

$67.99

$

Usually ships in 2-12 days

0

3

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 11

0

4

Snapper 7052886

BAND, Brake
(Superseded to 7503086YP)

$35.99

$

In Stock, Qty 8

0

5

Snapper 7032169

DRUM, Brake
(Superseded to 7035378YP)

$11.99

$

Usually ships in 2-12 days

0

6

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, Qty 7

0

7

Snapper 7047961

ARM, Idler
(Superseded to 7047961YP)

$57.99

$

Usually ships in 2-12 days

0

8

Snapper 7014304

PIN, 1/4 x 1 1/4" Clevis
(Superseded to 7014304YP)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7014302

BOLT, 1/4-20 Eye
(Superseded to 7014302YP)

$4.99

$

In Stock, Qty 6

0

10

Snapper 7014303

NUT, 1/4-20 Tee
(Superseded to 7014303YP)

$15.99

$

Usually ships in 2-12 days

0

11

Snapper 7091576

NUT, 1/4-20 Hex GR 5 YZ
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, only 3 left!

0

12

Snapper 7090164

SCREW, 3/8-24 x 1 1/2" Hex Head Cap

$

$

Not available

13

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7018574

PULLEY, Idler, 4.12 O.D.
(Superseded to 7018574SM)

$38.99

$

In Stock, only 4 left!

0

15

Snapper 7032368

GUIDE, Belt

$

$

Not available

16

Snapper 7023180

CABLE, Front Lift 6.12"
(Superseded to 7023180YP)

$

$

Not available

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock )
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7047959

LIFT, Front Arm
(Superseded to 7047959YP)

$131.99

$

Usually ships in 2-12 days

0

19

Snapper 7012067

RING, Red (Right Side)
(Superseded to 7012067YP)

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7023791

RING, Black (Left Side)(5/8" ID x .44" Wide)
(Superseded to 704009)

Note: Was 10996

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

22

Snapper 7038043

BRACKET, Front Lift Hanger
(Superseded to 7038043YP)

$31.99

$

Usually ships in 2-12 days

0

23

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 3 left!

0

24

Snapper 7091503

PIN, Hair 3/32" x 1.5"
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7032323

PIN, Hinge
(Superseded to 7032323YP)

Note: Was 31914

$41.99

$

Usually ships in 2-12 days

0

26

Snapper 7039586

HINGE, Deflector
(Superseded to 7039586YP)

$60.99

$

Usually ships in 2-12 days

0

27

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock)
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

29

Snapper 7052555

ASSEMBLY, Deflector
(Superseded to 7600147YP)

Note: (Includes item 30)

$122.99

$

Usually ships in 2-12 days

0

30

Snapper 7013010

DECAL, Danger (Cut Finger)
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 20+

0

31

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, Qty 12

0

32

Snapper 7061972

DECK, Cutting, 33"
(Superseded to 7061972YP)

Note: Was 51917 or 60978 (Now 61972 + 52555)(Includes items 33 & 87)

$

$

Not available

33

Snapper 7014852

DECAL, Caution (Deflector)
(Superseded to 7101665YP)

$14.99

$

In Stock, only 1 left!

0

34

Snapper 7038455

ANCHOR, Brake
(Superseded to 7038455YP)

$38.99

$

Usually ships in 2-12 days

0

35

Snapper 7032803

BRACKET, Cross-Shaft
(Superseded to 7032803YP)

$20.99

$

Usually ships in 2-12 days

0

36

Snapper 7011016

BEARING, Cross-Shaft Bracket
(Superseded to 7011016YP)

$4.49

$

In Stock, Qty 13

0

37

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock)
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

38

Snapper 7038453

RAIL, Side
(Superseded to 7038453YP)

$29.99

$

Usually ships in 2-12 days

0

39

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 5

0

40

Snapper 7015012

ECCENTRIC, Leveling
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

41

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 5

0

42

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

43

Snapper 7032432

LINK, Adjustment

$

$

Not available

44

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

45

Snapper 7059784

ASSEMBLY, Spindle
(Superseded to 7059784YP)

Note: (Includes items 46 thru 55); See "Wheels - Front" for Spindle Parts

$163.99

$

Usually ships in 2-12 days

0

50

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

51

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

52

Snapper 7090559

NUT, 1/4-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, only 2 left!

0

46

Snapper 7052294

HOUSING, Spindle 5.575" Tall
(Superseded to 7052294YP)

Note: (Includes item 47)

$179.99

$

Usually ships in 2-12 days

0

47

Snapper 7010817

FITTING, Lube (Press into .187" hole, no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, only 2 left!

0

48

Snapper 7027711

SPINDLE, 33" Mower Deck 8.26" Long
(Superseded to 7027711YP)

$53.99

$

Usually ships in 2-12 days

0

49

Snapper 7012491

RING, Retaining EXT 1.75"
(Superseded to 7012491SM)

Note: (2 in Assembly)

$4.49

$

In Stock, Qty 20+

0

53

Snapper 7090392

SCREW, 1/2-20 Hex Head Cap (4)
(Superseded to 703880)

Note: (2 in Assembly)

$4.49

$

In Stock, Qty 13

0

54

Snapper 7037751

HOLDER, Blade
(Superseded to 7037751BMYP)

$45.99

$

In Stock, Qty 5

0

55

Snapper 7090356

NUT, 5/8-18 Hex Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 7

0

56

Snapper 7090509

WASHER, 1/2 Int. Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, only 2 left!

0

58

Snapper 7019523

BLADE, 33" Mower Deck
(Superseded to 7019523BZYP)

$36.99

$

In Stock, only 2 left!

0

Snapper 7024741

BLADE, 33" Mower Deck Ninja (Mulching) Not shown
(Superseded to 7024741AYP)

Note: (Not Included With This Assembly)

$94.99

$

In Stock, Qty 7

0

Snapper 7016982

BLADE, 33" Mower Deck (Recycling) Not shown
(Superseded to 7024741AYP)

Note: (Not Included With This Assembly)

$94.99

$

In Stock, Qty 7

0

59

Snapper 7037723

LIFT, Air
(Superseded to 7037723BMYP)

$8.49

$

Usually ships in 2-12 days

0

60

Snapper 7090228

SCREW, 5/16-24 x 11/16" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

61

Snapper 7090391

WASHER, 5/16 Int. Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

62

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

63

Snapper 7033115

BRACKET, Rear Lift
(Superseded to 7033115YP)

$10.99

$

Usually ships in 2-12 days

0

64

Snapper 7016844

CABLE, Support 4.25" 8 Spacers
(Superseded to 7016844YP)

$11.99

$

Usually ships in 2-12 days

0

65

Snapper 7012670

RING, Tolerance 2.0"
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 13

0

66

Snapper 7047960

CROSS-SHAFT
(Superseded to 7047960YP)

$113.99

$

Usually ships in 2-12 days

0

67

Snapper 7028652

SPRING
(Superseded to 7028652YP)

Note: Was 16153

$32.99

$

Usually ships in 2-12 days

0

68

Snapper 7015753

BALL-JOINT
(Superseded to 7015753YP)

$10.99

$

In Stock, Qty 5

0

69

Snapper 7023687

LINK, Ball Joint

$

$

Not available

70

Snapper 7090053

WASHER, 1/4 Int. Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

71

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

72

Snapper 7038018

BRACE, Spindle
(Superseded to 7038018AYP)

$23.99

$

Usually ships in 2-12 days

0

73

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

74

Snapper 7091294

WASHER .28 x .63 x .065 YZ
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 11

0

75

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

76

Snapper 7033570

BRACKET, Gage Wheel (Front)
(Superseded to 7033570BMYP)

Note: Was 38451

$19.99

$

In Stock, only 1 left!

0

77

Snapper 7033571

BRACKET, Gage Wheel (Rear)
(Superseded to 7033571BMYP)

Note: Was 38450

$14.99

$

In Stock, Qty 8

0

78

Snapper 7090731

BOLT, 5/16-18 x 1/2" Short Neck Carriage
(Superseded to 703798)

Note: Was 90004

$4.49

$

In Stock, Qty 20+

0

79

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

80

Snapper 7015272

SPACER .625 OD x .423 ID x 3" L
(Superseded to 7015272YP)

$7.49

$

In Stock, Qty 7

0

81

Snapper 7091532

SCREW, 3/8-24 x 3 3/4" Hex Cap
(Superseded to 703876)

Note: Was 90859

$6.99

$

In Stock, Qty 20+

0

82

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

83

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

In Stock, Qty 20+

0

84

Snapper 7033352

GUIDE, Belt
(Superseded to 7033352YP)

$41.99

$

Usually ships in 2-12 days

0

85

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

86

Snapper 7020908

SPACER
(Superseded to 7020908YP)

$4.49

$

In Stock, Qty 7

0

87

Snapper 7014852

DECAL, Caution (Rotating blades)
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, only 1 left!

0

Snapper 7060993

CUTTER Unit, Assembly 33" (Not shown)

$

$

Currently unavailable
