LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Drive Group Parts Diagram

Lawn Tractor

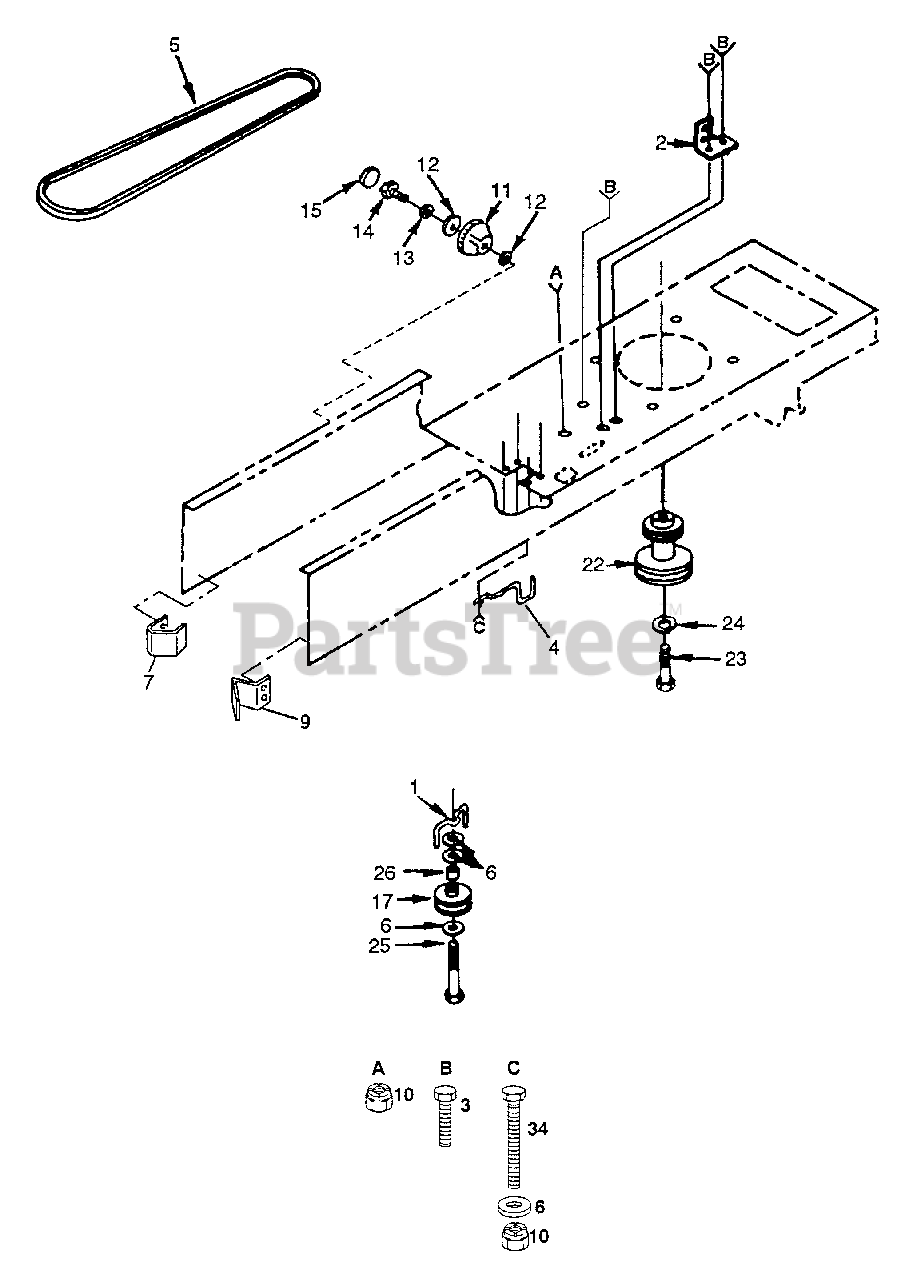

Drive Group Parts Diagram

  • Title

1

Husqvarna 532109070

Keeper, Belt

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532108236

Bracket, Switch

$2.99

$

Usually ships in 3-10 days

0

3

Husqvarna 817021008

Screw, Tap. Hex H d. #10 - 24 x 1/2

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 532129921

Keeper, Belt, Engine

$

$

Not available

5

Husqvarna 532125907

V-Belt, Drive

$36.99

$

In Stock, Qty 20+

0

6

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 532127275

Keeper, Belt L.H.

$

$

Not available

9

Husqvarna 532127274

Keeper, Belt R.H.

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 873680600

Nut, Crownlock 3/8 - 16

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532123934

Scale, Indicator Height

$

$

Not available

12

Husqvarna 819112410

Washer 11/32 x 1-1/2 x 10 Ga.

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 810040500

Washer, Lock Hvy. Helical Spring 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

14

Husqvarna 874780516

Bolt, Hex 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532123935

Plug, Hole

$

$

Not available

17

Husqvarna 532123674

Idler, Flat

$31.99

$

In Stock, only 2 left!

0

22

Husqvarna 532131002

Pulley, Engine
(Superseded to 532136004)

$

$

Not available

23

Husqvarna 871130720

Bolt, Hex 7/16 - 20 x 1 - 1/4 G8

$

$

Not available

24

Husqvarna 810040700

Washer, Lock
(Superseded to 539990247)

$

$

Not available

25

Husqvarna 874760644

Bolt, Hex 3/8 - 16 x 2 - 3/4

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532124965

Spacer

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 874760616

Bolt, Hex 3/8 - 16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0
