LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Enclosures Parts Diagram

Lawn Tractor

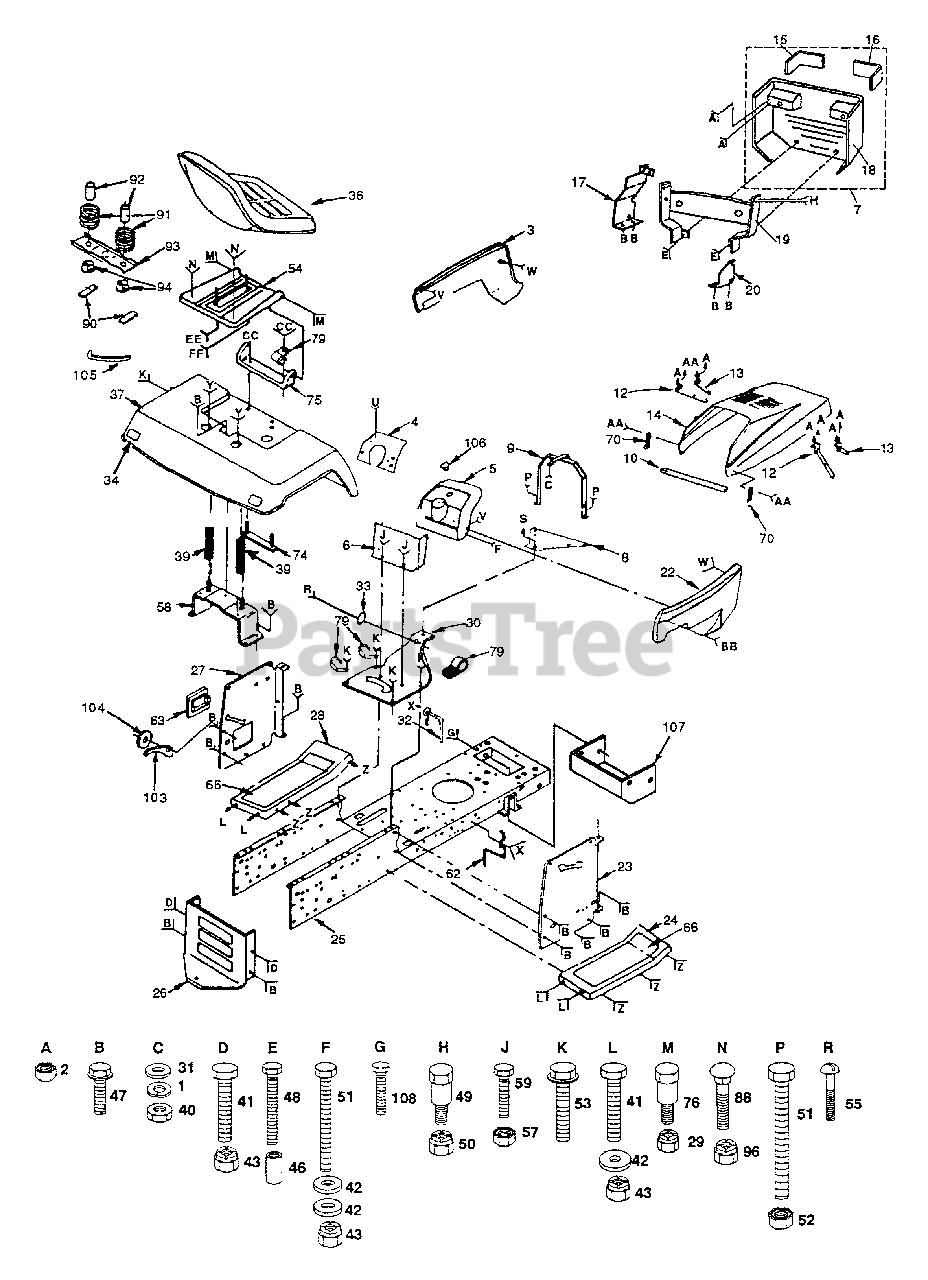

Enclosures Parts Diagram

  • Title

1

Husqvarna 810040400

Washer, Lock 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

2

Husqvarna 873510400

Nut, Hex Keps 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 532124905

Panel, Side L.H.

$

$

Not available

4

Husqvarna 532124948

Plate, Dashboard

$

$

Not available

5

Husqvarna 532124182

Dashboard
(Superseded to 532140452)

$

$

Not available

6

Husqvarna 532104783

Dash, Lower

$

$

Not available

7

Husqvarna 532127321

Grill Assembly
(Superseded to 532157236)

$

$

Not available

8

Husqvarna 532106965

Plate, Support, Battery

$

$

Not available

9

Husqvarna 532124130

Support Assembly, Dash

$

$

Not available

10

Husqvarna 532104915

Foam, Strip
(Superseded to 532105037)

$

$

Not available

12

Husqvarna 532106784

Strap Assembly, Hinge, Rear

$

$

Not available

13

Husqvarna 532104618

Strap Assembly, Hinge, Front

$

$

Not available

14

Husqvarna 532125007

Hood
(Superseded to 532125454)

$

$

Not available

15

Husqvarna 532124250

Lens, L.H.
(Superseded to 532157068)

$

$

Not available

16

Husqvarna 532124251

Lens, R.H.
(Superseded to 532157069)

$

$

Not available

17

Husqvarna 532121610

Bracket Assembly Frame Pivot L.H.

$

$

Not available

18

Husqvarna 532127324

Grill
(Superseded to 532157236)

$

$

Not available

19

Husqvarna 532126025

Support, Grill Assembly

$

$

Not available

20

Husqvarna 532110852

Bracket Assembly Frame Pivot R.H.

$

$

Not available

22

Husqvarna 532125063

Panel, Side, R.H.

$

$

Not available

23

Husqvarna 532132071

Panel, Dash, R.H.

$

$

Not available

24

Husqvarna 532124914

Footrest, R .H.
(Superseded to 532145243)

$

$

Not available

25

Husqvarna 532131052

Chassis

$

$

Not available

26

Husqvarna 532127866

Drawbar

$

$

Not available

27

Husqvarna 532132072

Panel, Dash, L.H.

$

$

Not available

28

Husqvarna 532124899

Footrest, L.H.

$

$

Not available

29

Husqvarna 873680500

Nut, Crownlock 5/16-18
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532124771

Saddle
(Superseded to 532123783)

$

$

Not available

31

Husqvarna 819091216

Washer 9/32 x 3/4 x 16 Ga.

$

$

Not available

32

Husqvarna 532121440

Guide, Belt, Lower, Engine Pulley, L.H.

$

$

Not available

33

Husqvarna 532124720

Bushing, Steering
(Superseded to 532155108)

$7.49

$

In Stock, Qty 8

0

34

Husqvarna 532106202

Reflector, Taillight

$

$

Not available

36

Husqvarna 532124185

Seat
(Superseded to 532401042)

$206.99

$

In Stock, only 1 left!

0

37

Husqvarna 532125157

Fender

$

$

Not available

39

Husqvarna 532124181

Spring,Seat
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

40

Husqvarna 873220400

Nut, Hex 1/4-20
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

41

Husqvarna 874760612

Bolt, Hex 3/8-16 x 3/4

$4.99

$

In Stock, Qty 17

0

42

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

43

Husqvarna 873680600

Nut, Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532121235

Spacer

$

$

Not available

47

Husqvarna 817490612

Screw, Hex Washer Hd. Thd. Rolling 3/8-16 x 3/4 Type TT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

48

Husqvarna 874760440

Bolt, Hex Fin. 1/4-20 x 2-1/2

$2.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123481

Bolt, Shoulder 1/4-20
(Superseded to 532007605)

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 873680400

Nut, Crownlock 1/4-20
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 874760620

Bolt, Hex 3/8-16 x 1-1/4

$7.49

$

In Stock, only 3 left!

0

52

Husqvarna 873510600

Nut, Keps 3/8-16

$6.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817490608

Screw, Hex Washer Hd. Thd. Forming 3/8-16 x 1/2 Type TT

$6.49

$

Usually ships in 3-10 days

0

54

Husqvarna 532124294

Pan, Seat

$

$

Not available

55

Husqvarna 817431008

Screw, Hex Head Self Tapping #10-16 x 1/2 Type B
(Superseded to 817211008)

$4.99

$

Usually ships in 3-10 days

0

57

Husqvarna 873510500

Nut, Keps 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532105509

Bracket Assembly, Fender
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

59

Husqvarna 874180512

Screw, Truss Hd. 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532121441

Guide, Belt, Lower, Engine, Pulley, R.H.
(Superseded to 532131402)

$

$

Not available

63

Husqvarna 532121794

Cover, Access

$

$

Not available

66

Husqvarna 532108256

Pad, Footrest

$

$

Not available

70

Husqvarna 532109808

Latch, Hood

$4.99

$

In Stock, Qty 20+

0

74

Husqvarna 532105511

Strap Assembly, Fender
(Superseded to 532140675)

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 532126656

Bracket, Pivot, Seat

$

$

Not available

76

Husqvarna 532105529

Bolt, Shoulder
(Superseded to 532139888)

$6.49

$

In Stock, Qty 9

0

79

Husqvarna 532124996

Clip, Fuel Line
(Superseded to 532002751)

$

$

Not available

88

Husqvarna 872170410

Bolt Carriage 1/4 - 20 x 1-1/4

$4.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532121251

Foam Strip

$

$

Not available

91

Husqvarna 532121250

Spring

$7.49

$

Usually ships in 3-10 days

0

92

Husqvarna 532121249

Spacer

$6.49

$

In Stock, Qty 5

0

93

Husqvarna 532121246

Bracket, Switch Mount
(Superseded to 532174648)

$8.99

$

In Stock, only 1 left!

0

94

Husqvarna 532121248

Snap Bushing

$6.49

$

Usually ships in 3-10 days

0

96

Husqvarna 532123976

Nut, Hex Large Flange Lock
(Superseded to 873900400)

$3.99

$

In Stock, Qty 20+

0

103

Husqvarna 532124763

Pointer, Height Indicator
(Superseded to 532123933)

$3.99

$

Usually ships in 3-10 days

0

104

Husqvarna 532120529

Washer, Nylon .44 x .75 x .032

$2.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532131127

Tie, Cable
(Superseded to 532066426)

$6.49

$

Usually ships in 3-10 days

0

106

Husqvarna 532005479

Plug, Button

$4.99

$

Usually ships in 3-10 days

0

107

Husqvarna 532128953

Shield, Heat

$

$

Not available

108

Husqvarna 817021008

Screw, Tap Hex #10-24 x 1/2

$4.99

$

In Stock, Qty 20+

0
