LT 125 (954000332-D) - Husqvarna Lawn Tractor (1991-10) Steering, Front Axle And Wheels Parts Diagram

Lawn Tractor

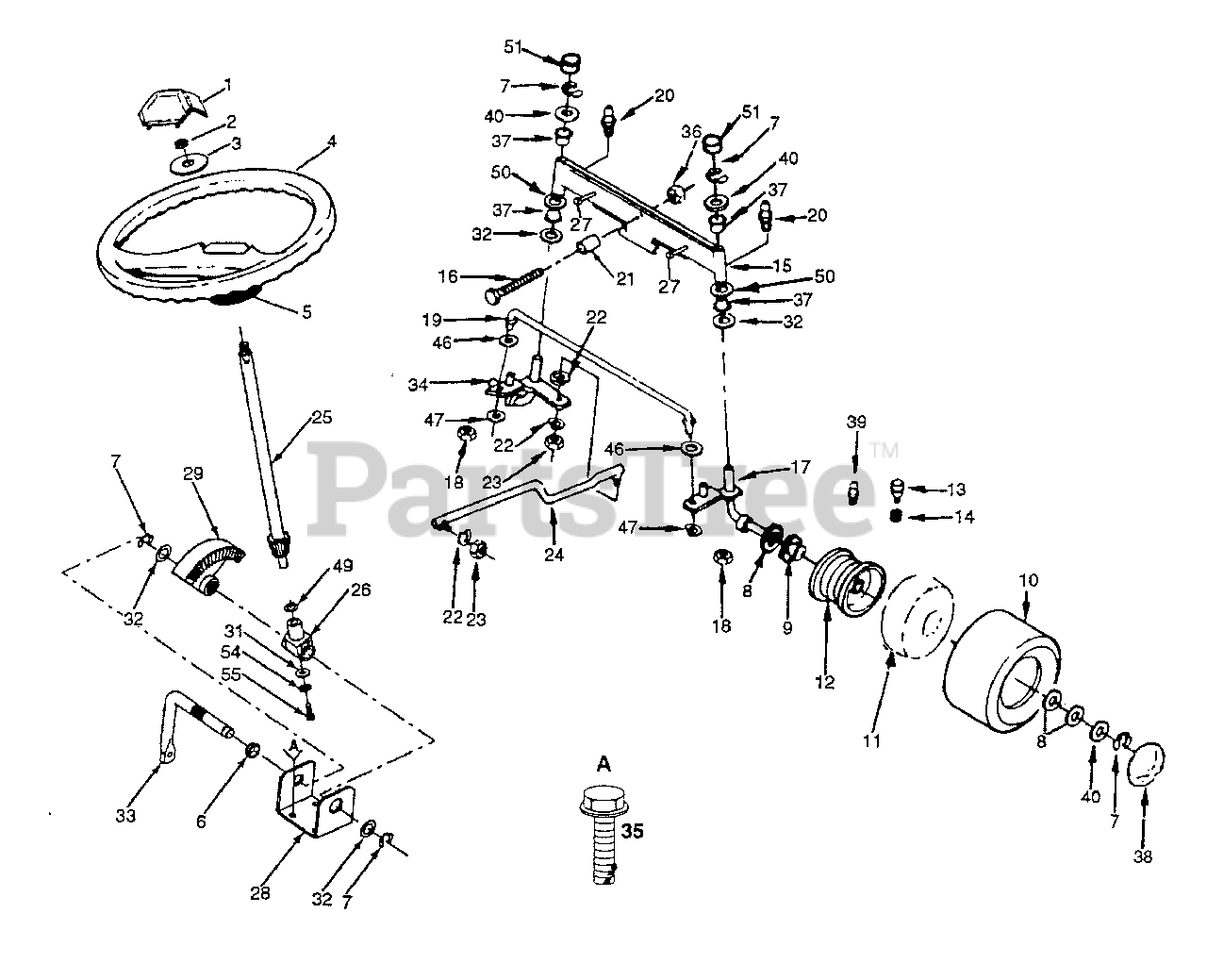

Steering, Front Axle And Wheels Parts Diagram

  • Title

1

Husqvarna 532124416

Insert, Steering Wheel

$

$

Not available

2

Husqvarna 873940800

Nut, Hex Jam Toplock 1/2-20

$7.49

$

In Stock, Qty 11

0

3

Husqvarna 532100712

Washer 17/32 x 2-1/4 x .160

$

$

Not available

4

Husqvarna 532124415

Steering Wheel

$

$

Not available

5

Husqvarna 532100711

Adapter, Steering Wheel
(Superseded to 587738905)

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 532109816

Nyliner, Snap-in

$6.49

$

In Stock, only 2 left!

0

7

Husqvarna 812000029

Ring, Klip

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 532124959

Bearings, Wheel, Front
(Superseded to 532009040)

$6.49

$

In Stock, Qty 20+

0

10

Husqvarna 532106222

Tire
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532059904

Tube, Tire

Note: (Optional Service Item Only)

$37.99

$

In Stock, Qty 20+

0

12

Husqvarna 532125102

Rim Assembly
(Superseded to 532141446)

Note: (Inc. 2 each Key No. 9)

$87.99

$

In Stock, Qty 20+

0

13

Husqvarna 532065139

Stem, Valve

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 532059192

Cap, Valve

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532108075

Axle Assembly, Front

$

$

Not available

16

Husqvarna 874011056

Bolt, Hex 5/8-11 UNC x 3-1/2

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532130459

Spindle Assembly, R.H.

$

$

Not available

18

Husqvarna 873810500

Nut, Hex Nylon 5/16-24 UNF
(Superseded to 873610500)

$

$

Not available

19

Husqvarna 532130467

Tie Rod
(Superseded to 532170162)

$93.99

$

In Stock, Qty 5

0

20

Husqvarna 532124836

Fitting, Grease
(Superseded to 532183226)

$7.49

$

In Stock, only 3 left!

0

21

Husqvarna 532110438

Spacer Bearing, Front Axle
(Superseded to 532155134)

$

$

Not available

22

Husqvarna 810040600

Lock Washer 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 873610600

Nut, Hex 3/8-24
(Superseded to 873800600)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532130468

Drag Link

$93.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532128758

Shaft, Steering
(Superseded to 532156543)

$66.99

$

In Stock, only 3 left!

0

26

Husqvarna 532124035

Support Shaft
(Superseded to 532160395)

$9.99

$

In Stock, Qty 20+

0

27

Husqvarna 532132624

Pin, Axle

$

$

Not available

28

Husqvarna 532124036

Bracket Assembly, Steering

$

$

Not available

29

Husqvarna 532124034

Gear, Sector
(Superseded to 532136874)

$80.99

$

In Stock, Qty 5

0

31

Husqvarna 532126684

Washer, Shim
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532124931

Bearing, Thrust
(Superseded to 532006266)

$7.99

$

In Stock, Qty 20+

0

33

Husqvarna 532127501

Shaft, Pitman
(Superseded to 532156365)

$

$

Not available

34

Husqvarna 532130460

Spindle Assembly, L.H.
(Superseded to 532156483)

$26.99

$

In Stock, only 1 left!

0

35

Husqvarna 817490612

Screw, Hex Washer Hd. Thread Forming Type TT 3/8-16 x 3/4
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

36

Husqvarna 873601000

Nut, Flange 5/8 - 11
(Superseded to 873681000)

$2.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532124937

Bearing
(Superseded to 532003366)

$3.49

$

In Stock, Qty 20+

0

38

Husqvarna 532124577

Cover, Wheel

$

$

Not available

39

Husqvarna 532124957

Fitting, Grease
(Superseded to 532000278)

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

46

Husqvarna 819111216

Washer 11/32 x 3/4 x 16 Ga.
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 810040500

Washer, Lock 1/4
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

49

Husqvarna 532057079

Washer

$6.49

$

In Stock, Qty 19

0

50

Husqvarna 819272016

Washer 27/32 x -1/4 x 16 Ga.

$6.49

$

In Stock, only 4 left!

0

51

Husqvarna 532121232

Spindle Cap

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 810040400

Washer, Lock
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0

55

Husqvarna 871070410

Screw, Socket Hex
(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0
